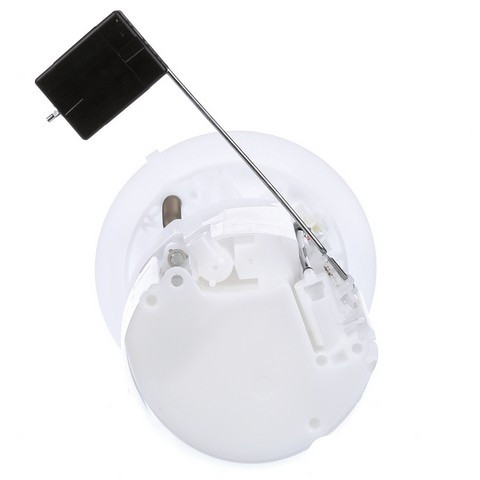

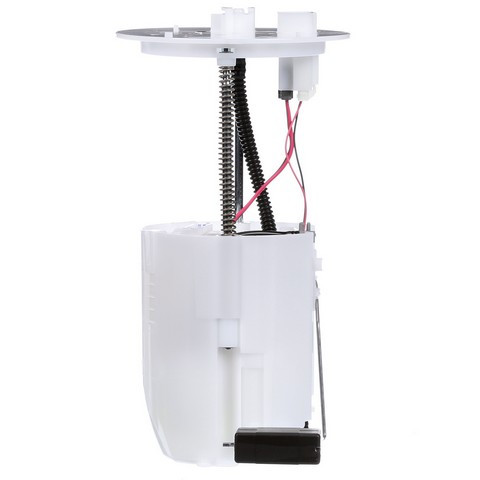

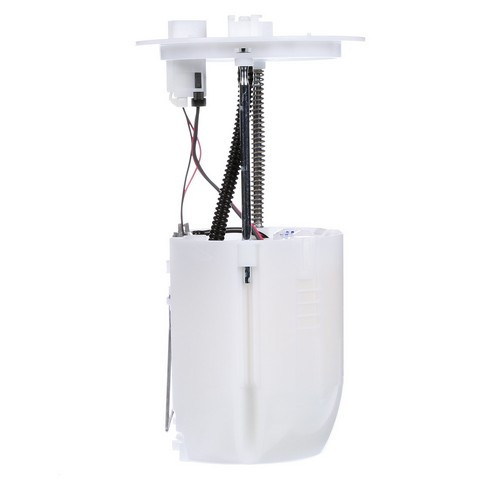

Delphi FG1526 fuel pump module for the 2010-2015 Lexus RX350 V6 3.5L delivers fuel from the tank to the engine. This Delphi fuel pump module assembly comes with its float arm, and Delphi builds its fuel pumps to its OE standards.
- Empty float height and float retention are matched to specification for correct gas gauge readings
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1526 fuel pump module
- Also called: fuel pump assembly
- Fits: 2010-2015 Lexus RX350 V6 3.5L
- Condition: New
Hard starting, sputtering under load, stalling or a fuel gauge that reads wrong can be signs of a worn pump or float. Before you replace the module, rule out a blown fuse, a faulty relay or damaged wiring, since any of these can keep a good pump from running. If the pump is the cause, this fuel pump assembly replaces it together with the float arm.
Fits
This module is for the 2010-2015 Lexus RX350 V6 3.5L, which takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: V6 3.5L
Build and materials
- Condition: New
- Float arm: included
In the box
One fuel pump module with float arm and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- Follow the instruction sheet for the installation steps.
Interchange: 77020-0E030
4010969 · E9195M · CFG1526 · P76817 · P77340M · SP9051M
This part cross-references / interchanges with the following part numbers:
4010969, E9195M, CFG1526, P76817, P77340M, SP9051M, 77020-0E030
Frequently Asked Questions
Does the Delphi FG1526 fit a 2010-2015 Lexus RX350 V6 3.5L?
Yes. Delphi FG1526 is a fuel pump module for the 2010-2015 Lexus RX350 V6 3.5L, which takes one.
What does the Delphi module include besides the pump?
The package holds the fuel pump module with its float arm and an instruction sheet.
Does the Delphi fuel module keep the gas gauge reading correct?
Yes. Its empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
What are the signs of a worn fuel pump module?
Hard starting, sputtering or stalling can be signs of a weak pump, and a gauge that reads wrong can involve the float. A shop can test the pump.
Should I clean the tank before installing the Delphi FG1526?
Yes. Check and clean the fuel tank before fitting the Delphi FG1526, and use the instruction sheet that comes with the part.
