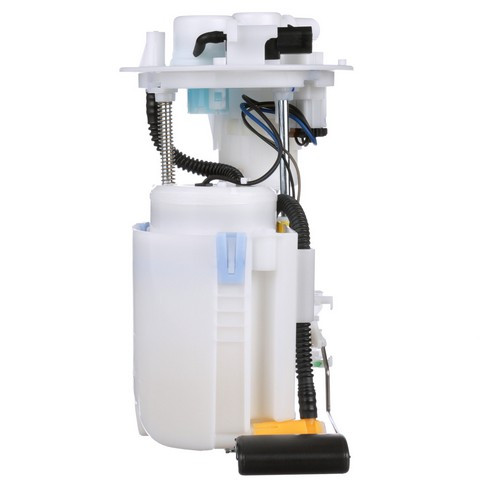

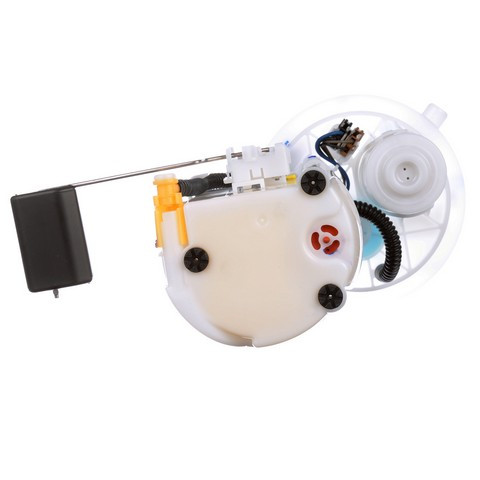

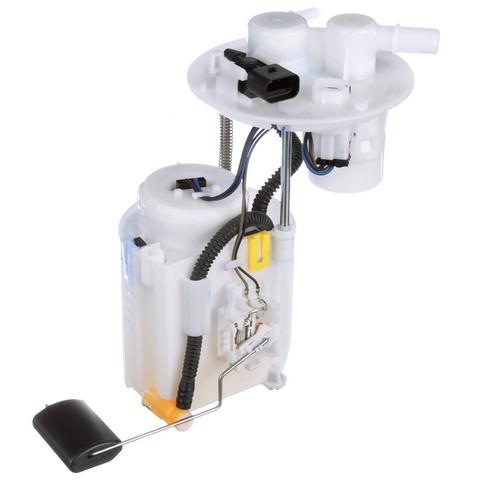

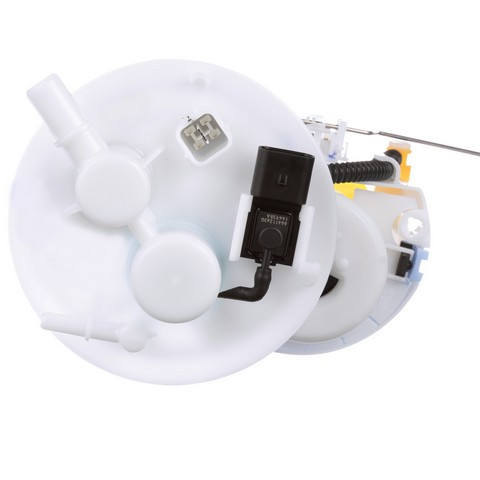

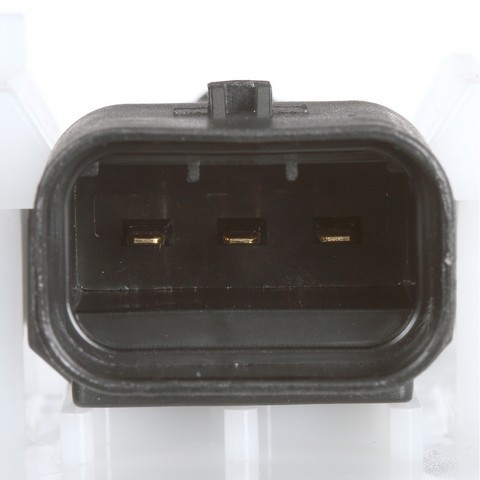

Delphi FG1555 fuel pump module for the 2012-2017 Hyundai Accent 4-cylinder 1.6L and other vehicles sends fuel from the tank to the engine. Also called a fuel pump assembly, it is built to Delphi's OE standards.
A failing fuel pump module can show up as hard starting, stalling or a fuel gauge that reads wrong, though other fuel or electrical faults can look the same. Before replacing it, look over the fuel pump fuse and its wiring connector with the engine off and cool. A shop can handle any test that needs the engine running.
This module fits the 2012-2017 Hyundai Accent 4-cylinder 1.6L and the 2012-2017 Kia Rio 4-cylinder 1.6L.
Fit and size
Build and materials
One fuel pump module with float arm and one instruction sheet. This listing holds one module, and each vehicle takes one.
Interchange: 31110-1R500 · 31110-1R500DS · 31110-1W500 · 31110-1W500DS · 94460-1R500 · 94460-1W500 · 31380-3S900
4011392 · E9115M · CFG1555 · P76854M · A33183 · SP3047M · USEP9115M
This part cross-references / interchanges with the following part numbers:
Does the Delphi FG1555 fit the 2012-2017 Kia Rio 4-cylinder 1.6L?
Yes. Delphi FG1555 fits the 2012-2017 Kia Rio 4-cylinder 1.6L, which is the L4-1.6L engine, and it also fits the 2012-2017 Hyundai Accent 4-cylinder 1.6L.
Is this Delphi fuel pump module assembly sold with the float arm?
Yes. This Delphi FG1555 listing is one fuel pump module with its float arm, plus an instruction sheet.
Does this Delphi fuel module put less load on the electrical system?
Yes. This fuel pump module draws lower amperage, which puts less load on the vehicle's electrical system.
My gas gauge reads wrong; can the float arm on this Delphi fuel pump module be the cause?
Yes, it can be, because the float arm reports tank level to the gauge. Hard starting or stalling can also be signs of a failing fuel pump module.
Does this Delphi module need the fuel tank cleaned at installation?
Yes. For the Delphi FG1555, check and clean the fuel tank when installing it; an instruction sheet comes with the part for the steps.
