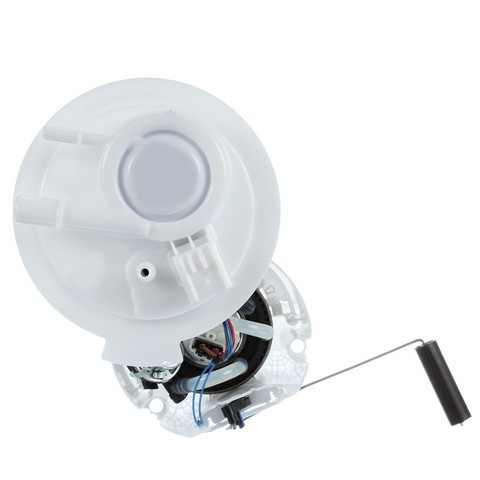

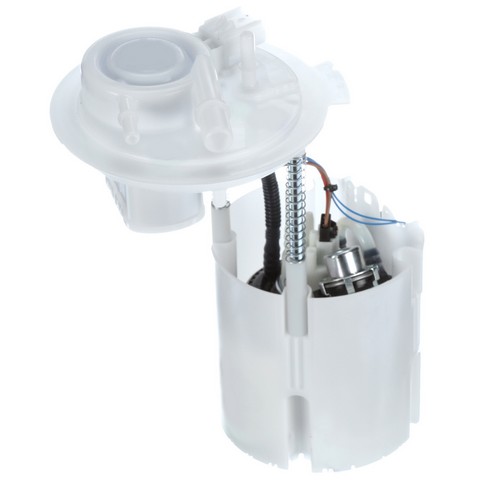

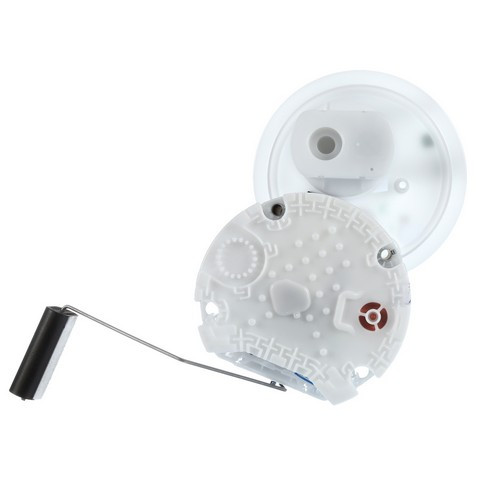

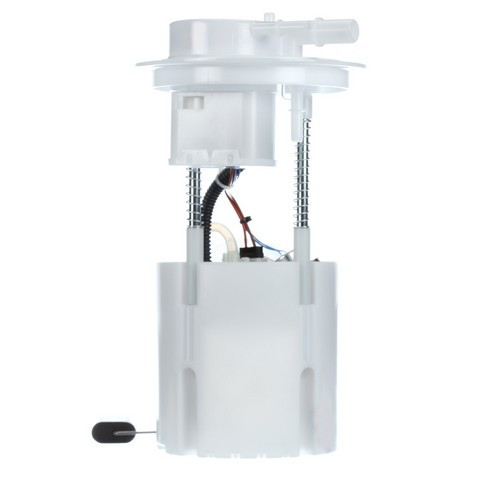

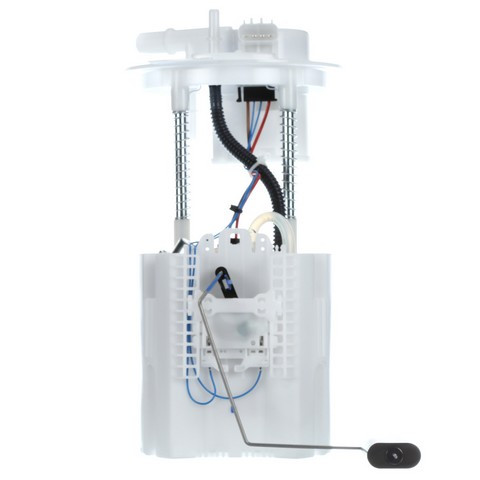

Delphi FG1560 fuel pump module for the 2014-2016 Jeep Cherokee 4-cylinder 2.4L and other vehicles moves fuel from the tank to the engine. This Delphi fuel pump module assembly, also called a fuel pump assembly, includes a float arm that reports the fuel level.
- Empty float height and float retention are matched to specification for a correct gas gauge reading
- Lower amperage draw reduces the load on the vehicle's electrical system
- Validated and tested by Delphi
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG1560 fuel pump module
- Also called: fuel pump assembly
- Fits: 2014-2016 Jeep Cherokee 4-cylinder 2.4L and other vehicles
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean a failing module, but they can also come from a blown fuse or a clogged filter. With the engine off, look at the fuel pump fuse first, and leave pressure testing to a shop.
Fits
It fits the 2013 Dodge Dart 4-cylinder 2.0L, the 2013-2016 Dart 4-cylinder 2.4L and the 2015-2016 Chrysler 200 4-cylinder 2.4L. Each car takes one module, and Delphi builds it to its own OE standards.
Specifications
- Quantity per vehicle: 1
- Type: fuel pump module assembly with float arm
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module with float arm, a seal and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the installation steps.
Interchange: 401-1502 · 6816 6589AA · 6816 6589AB · 6816 6589AC · 6816 6589AD
E7280M · DFG1560 · P77057M · 68166589AE · C0524M · A30509 · SP7224M · SP7257M
This part cross-references / interchanges with the following part numbers:
401-1502, E7280M, DFG1560, P77057M, 6816 6589AA, 6816 6589AB, 6816 6589AC, 6816 6589AD, 68166589AE, C0524M, A30509, SP7224M, SP7257M
Frequently Asked Questions
Will the Delphi FG1560 fit a 2013 Dodge Dart 4-cylinder 2.0L?
Yes. Delphi FG1560 fits the 2013 Dodge Dart 4-cylinder 2.0L and the 2013-2016 Dart 4-cylinder 2.4L.
Is this Delphi fuel pump module right for the 2015-2016 Chrysler 200 4-cylinder 2.4L?
Yes, this fuel pump module fits the 2015-2016 Chrysler 200 4-cylinder 2.4L. The listing is one module, and the car takes one.
Does this Delphi fuel module come with a float arm and seal?
Yes. Delphi FG1560 comes with the float arm, a seal and an instruction sheet.
Will the float on this Delphi module give a correct gas gauge reading?
Its empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Should the fuel tank be cleaned before installing a new fuel pump module?
Yes. Check and clean the fuel tank before the new module goes in. If you'd rather not work around fuel, a shop can do it.
