Delphi FG0061 fuel pump module for the 1998-1999 Chevrolet P30 V6 4.3L, V8 5.7L or 7.4L and other vehicles delivers fuel from the tank to the engine. The module, also called a fuel pump assembly, carries the pump and the float arm that tracks fuel level for the gauge.
- All Delphi fuel pumps are built to Delphi's own manufacturing standards
- Empty float height and float retention are held to specification for a correct gas gauge reading
- Lower amperage draw puts less load on the electrical system
- Delphi fuel pump module is validated and tested for its application
- Design and durability intended to lower failure rates
Quick facts
- Part: Delphi FG0061 fuel pump module
- Also called: fuel pump assembly
- Fits: 1998-1999 Chevrolet P30 V6 4.3L, V8 5.7L or 7.4L and other vehicles
- Condition: New
Hard starting, stalling and an erratic fuel gauge can mean the module is wearing out. A clogged fuel filter is another common source of hard starting, so these signs alone do not prove the module is at fault. If the module is the cause, this one replaces it.
Fits
This module fits the 1998-1999 Chevrolet P30 V6 4.3L, V8 5.7L or 7.4L and the 1998-1999 GMC P3500 V6 4.3L, V8 5.7L or 7.4L. Either vehicle needs a single module, and this listing is one.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box

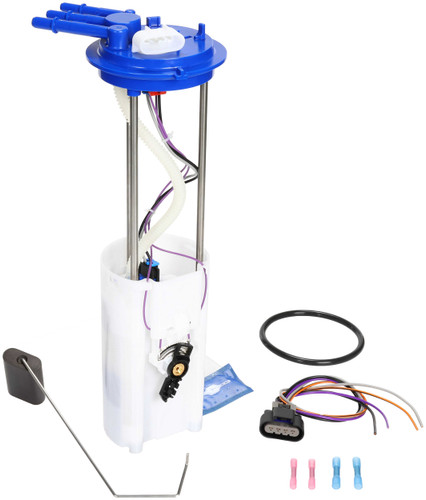

One fuel pump module with float arm, seal, splices, wire harness and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- Follow the instruction sheet for the installation steps.
Interchange: MU100 · 4010147 · E3968M · DFG0061 · 67492 · P74758M · AFS0452S · RE0452S · 25178125 · C0363M · A30122 · SP6100M · USEP3968M
This part cross-references / interchanges with the following part numbers:
MU100, 4010147, E3968M, DFG0061, 67492, P74758M, AFS0452S, RE0452S, 25178125, C0363M, A30122, SP6100M, USEP3968M
Frequently Asked Questions
Is this Delphi fuel pump module assembly right for the 1998-1999 Chevrolet P30 V6 4.3L, V8 5.7L or 7.4L?
Yes. Delphi FG0061 fits the 1998-1999 Chevrolet P30 with the V6 4.3L, V8 5.7L or 7.4L, and the P30 takes one module.
What comes with the Delphi fuel module?
The kit includes the fuel pump module with float arm, seal, splices, wire harness and an instruction sheet.
Does this Delphi module match OE float specifications?
Yes. Empty float height and float retention match OE specifications, which is what keeps the gas gauge reading correct.
Should I clean the fuel tank before installing Delphi FG0061?
Yes. Check and clean the fuel tank before installing the module; the instruction sheet in the kit covers the steps.
Can Delphi FG0061 replace a module listed as E3968M?
Yes. E3968M is another brand's number that Delphi FG0061 replaces.
