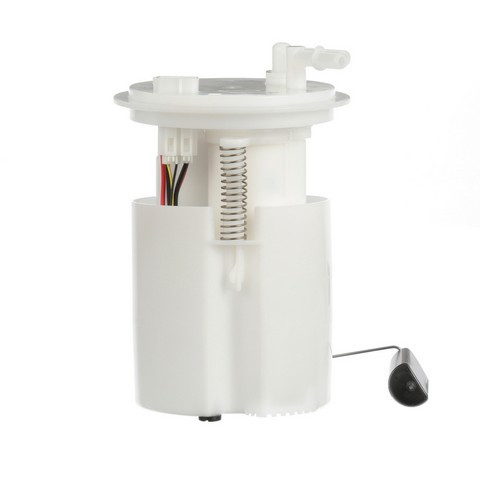

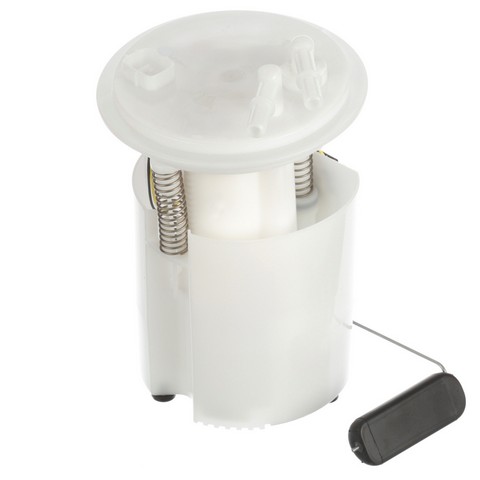

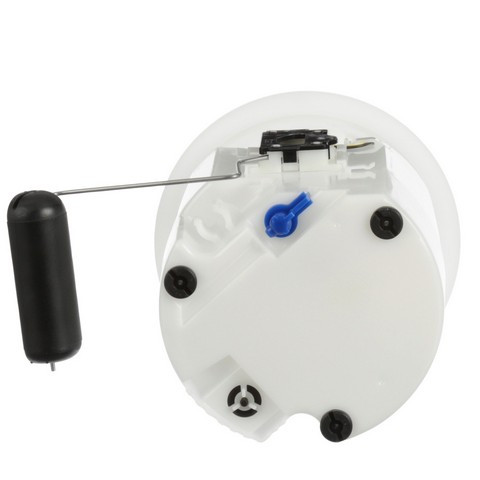

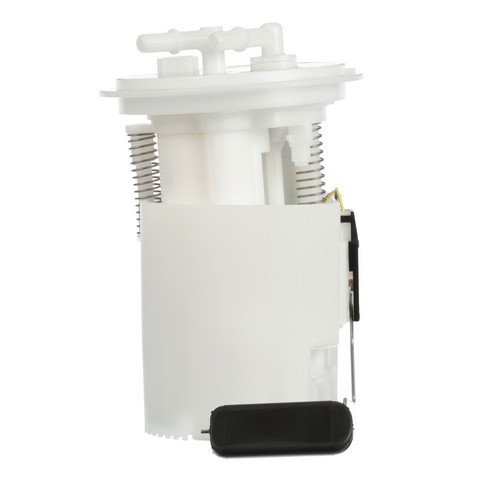

Fuel Pump Module for 2013-2014 Subaru Outback & More - Delphi FG1566

Delphi FG1566 fuel pump module for the 2013-2014 Subaru Outback H4 2.5L and other vehicles moves fuel from the tank to the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards.

• Float arm with empty float height and float retention set for a correct gas gauge reading
• Lower amperage draw puts less load on the vehicle's electrical system
• Validated and tested, then matched to the right vehicle application
• Design and durability aimed at lower failure rates

Quick facts

• Part: Delphi FG1566 fuel pump module
• Also called: fuel pump assembly
• Fits: 2013-2014 Subaru Outback H4 2.5L and other vehicles
• Condition: New

Hard starting, sputtering or a stall can come from a worn fuel pump assembly, and so can a gas gauge that reads wrong. These signs alone do not prove the pump is the problem, since a clogged fuel filter is another common cause.

Fits

It fits the 2013-2014 Subaru Outback H4 2.5L and the 2013-2014 Subaru Legacy H4 2.5L, one module per vehicle.

Specifications

• Quantity per vehicle: 1
• Condition: New
• Country of origin: Thailand

In the box

One fuel pump module with float arm and one instruction sheet.

Installation notes

• An instruction sheet comes with the module for the installation steps.
• Check and clean the fuel tank before installing the module.

Interchange: 42021 AJ230
E9211M · CFG1566 · P77050M · A30503 · SP4086M · USEP9211M
