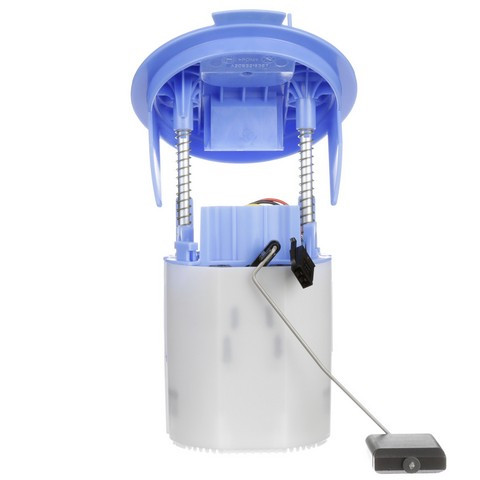

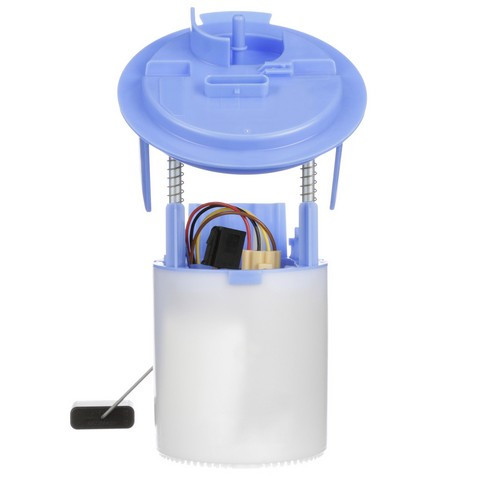

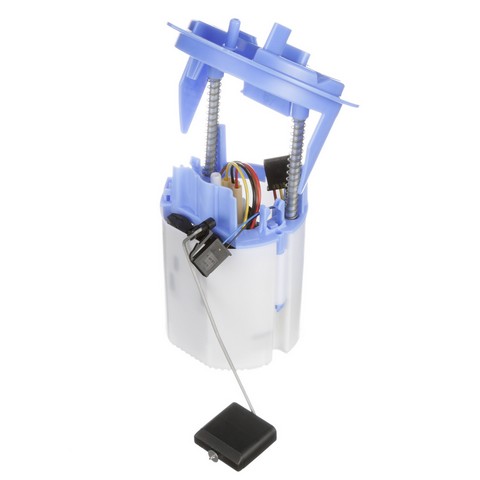

Delphi FG1577 right fuel pump module for the 2012-2018 Mercedes-Benz CLS550 V8 4.7L and other vehicles moves fuel from the tank to the engine. This Delphi fuel pump module assembly comes with its float arm, which reports the fuel level to the gauge.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw, which puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability intended to lower failure rates
Quick facts
- Part: Delphi FG1577 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2012-2018 Mercedes-Benz CLS550 V8 4.7L and other vehicles
- Position: Right
- Condition: New
A weak fuel pump assembly can show up as hard starting, sputtering under load or stalling. Before you replace the module, rule out a blown fuse or relay and wiring faults, since those can give similar symptoms. This listing is one module for the right side, and the 2012-2018 Mercedes-Benz CLS550 V8 4.7L takes one in that position.
Fits
As a right-side fuel pump module, it is a direct-fit replacement for the 2012-2018 Mercedes-Benz CLS550 V8 4.7L, the 2012-2017 Mercedes-Benz E550 V8 4.7L, the 2015-2017 Mercedes-Benz E400 V6 3.0L and other vehicles. If your car is not named here, open the "Vehicles it fits" section and check your exact model and engine against it.
Specifications
Fit and size
- Position: Right
- Quantity per application: 1
Build and materials
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module with its float arm and one instruction sheet.
Installation notes
- Check and clean the fuel tank first.
- The instruction sheet in the box covers the installation steps.
Interchange: 218 470 00 94 · 218 470 00 94 28
4011614 · E9111M · E9211M · CFG1577 · SP5142M · USEP9111M
This part cross-references / interchanges with the following part numbers:
4011614, E9111M, E9211M, CFG1577, 218 470 00 94, 218 470 00 94 28, SP5142M, USEP9111M
Frequently Asked Questions
Does the Delphi FG1577 fit the 2015-2017 Mercedes-Benz E400 V6 3.0L?
Yes. The Delphi FG1577 right fuel pump module is listed for the 2015-2017 Mercedes-Benz E400 V6 3.0L, and that car takes one on the right side.
Does the Delphi fuel module come with the float arm?
Yes. The package holds one fuel pump module with its float arm and an instruction sheet.
Does this Delphi module give a correct gas gauge reading?
Yes. Its empty float height and float retention match OE specifications for a correct gas gauge reading.
Does the Delphi fuel pump module draw less current?
Yes. This module's lower amperage draws less load on the vehicle's electrical system.
Does the Delphi FG1577 replace number 218 470 00 94?
Yes. 218 470 00 94 is one of the interchange numbers listed for the Delphi FG1577 right fuel pump module.
