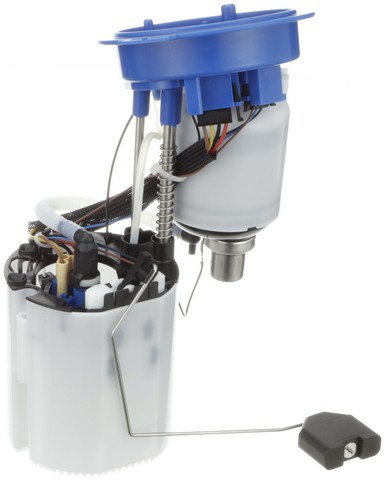

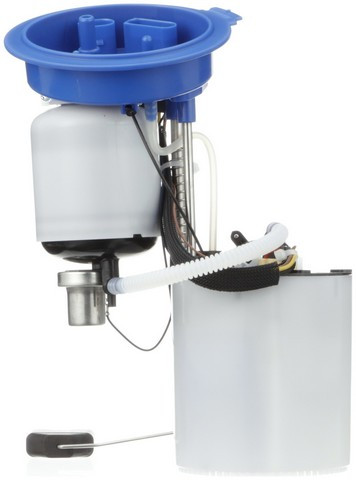

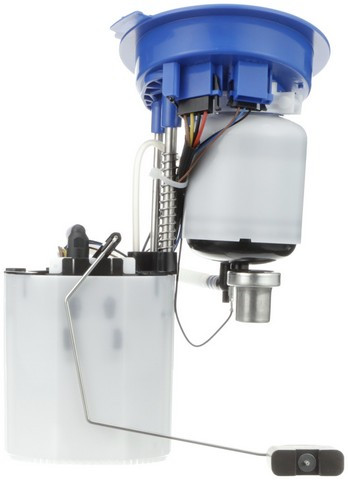

Delphi FG1601 fuel pump module for the 2012-2018 Audi A6 Quattro V6 3.0L, the 2013-2018 A6 Quattro 4-cylinder 2.0L and other vehicles delivers fuel from the tank to the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards.
- Lower amperage draw puts less load on the vehicle's electrical system
- Empty float height and float retention are set for a correct gas gauge reading
- Validated, tested and matched to the right vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG1601 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2012-2018 Audi A6 Quattro V6 3.0L, the 2013-2018 A6 Quattro 4-cylinder 2.0L and other vehicles
- Condition: New
A weak pump module can show up as hard starting, stumbling under load or an unsteady fuel gauge. A clogged fuel filter, a faulty fuel pump relay or damaged wiring can be behind the same signs, so find the cause before you buy.
Fits
The vehicles it fits include the 2012-2018 Audi A6 4-cylinder 2.0L and the 2012-2018 Audi A7 Quattro V6 3.0L, with one module per car. If your Audi is not named here, look it up by year and engine in the "Vehicles it fits" section.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Condition: New
In the box
One fuel pump module with float arm and one instruction sheet.
Installation notes
- Check and clean the fuel tank before fitting the module.
- Refer to the instruction sheet in the box for the steps.
Interchange: 4G0 919 051 C · 4G0 919 051 K
E9168M · DFG1601 · SP5147M
This part cross-references / interchanges with the following part numbers:
E9168M, 4G0 919 051 C, 4G0 919 051 K, DFG1601, SP5147M
Frequently Asked Questions
Will the Delphi fuel pump module work in the 2012-2018 Audi A7 Quattro V6 3.0L?
Yes. Delphi FG1601 fits the 2012-2018 Audi A7 Quattro V6 3.0L, and that car takes one.
Does the Delphi fuel module come with the float arm?
Yes. Delphi FG1601 comes as a fuel pump module assembly with the float arm, plus an instruction sheet.
What does the float on this Delphi module do for the gas gauge?
This module's empty float height and float retention match OE specifications, which supports a correct gas gauge reading.
Should I check the tank before installing this fuel pump assembly?
Yes. Check and clean the fuel tank first, and follow the instruction sheet that comes in the box for the rest of the job.
Does Delphi FG1601 replace Audi part 4G0 919 051 C?
Yes. 4G0 919 051 C is one of the numbers Delphi FG1601 replaces, along with 4G0 919 051 K.
