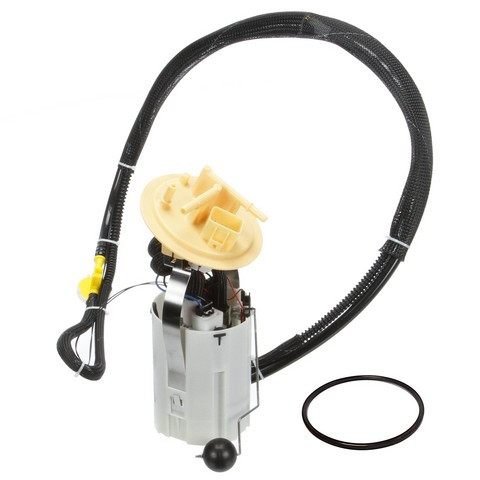

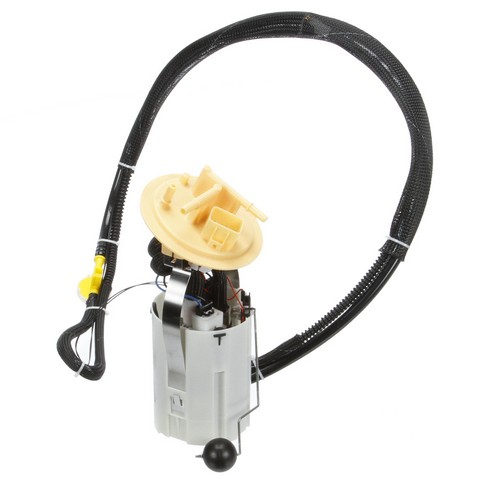

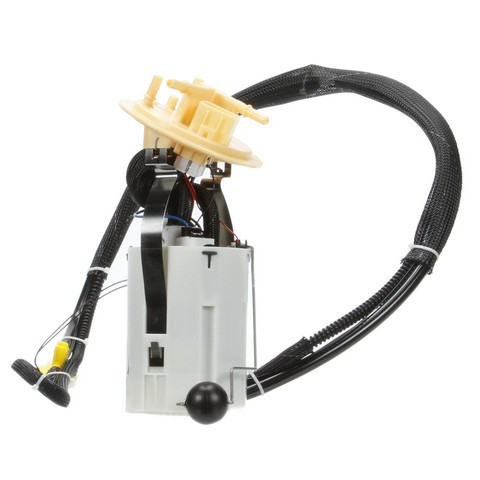

Delphi FG1617 fuel pump module for the 2007-2009 Volvo S60 5-cylinder 2.4L or 2.5L and other vehicles delivers fuel from the tank to the engine and carries the float arm for the gauge. The Delphi fuel pump module, also called a fuel pump assembly, is built to Delphi's OE standards.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1617 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007-2009 Volvo S60 5-cylinder 2.4L or 2.5L and other vehicles
- Condition: New
Hard starting, stalling or sputtering can mean the fuel pump module is worn, though a clogged fuel filter or a failing fuel pump relay can be behind them as well, so rule those out first.
Fits
This fuel pump module fits the 2007-2009 Volvo S60 5-cylinder 2.4L or 2.5L and the 2007 Volvo XC70 5-cylinder 2.5L, and each of them takes one.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
In the box
One fuel pump module with float arm, a seal and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the fuel pump module.
- The instruction sheet in the box covers the steps.
Interchange: 30761747-0 · 30792451-0 · 31261135-0
4011289 · E8807M · CFG1617 · 69890 · SP5068M · SP5125M · 30761747 · 30792451 · 31261135
This part cross-references / interchanges with the following part numbers:
4011289, E8807M, CFG1617, 69890, SP5068M, SP5125M, 30761747, 30761747-0, 30792451, 30792451-0, 31261135, 31261135-0
Frequently Asked Questions
Is the Delphi fuel pump module assembly right for the 2007 Volvo XC70 5-cylinder 2.5L?
Yes. Delphi FG1617 fits the 2007 Volvo XC70 5-cylinder 2.5L, and it also fits the 2007-2009 Volvo S60 5-cylinder 2.4L or 2.5L.
Does the Delphi fuel module come with a float arm and seal?
Yes. Delphi FG1617 comes with the float arm, a seal and an instruction sheet.
Does the Delphi module's float setup affect the gas gauge reading?
Yes. On this fuel pump module, the empty float height and float retention match OE specifications, which is what gives a correct gas gauge reading.
Does this fuel pump module draw less current from the car's electrical system?
Yes. The lower amperage of this fuel pump module puts less load on the vehicle's electrical system.
Do I need to prepare the fuel tank before fitting Delphi FG1617?
Yes. Check and clean the fuel tank before installing, and follow the instruction sheet in the box for the steps.
