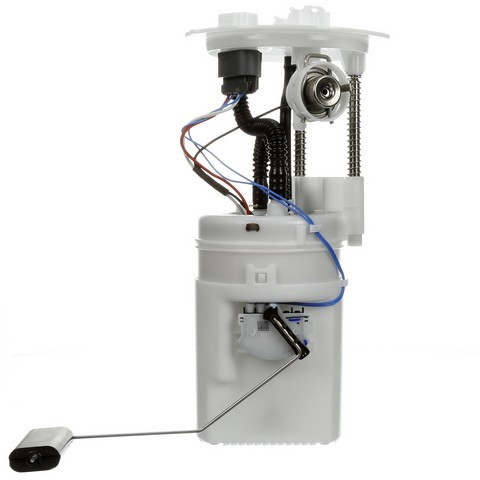

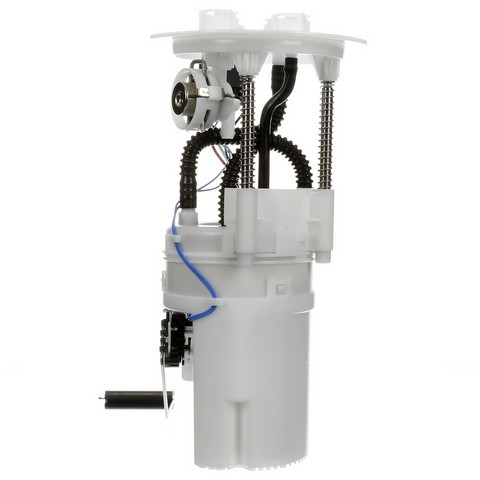

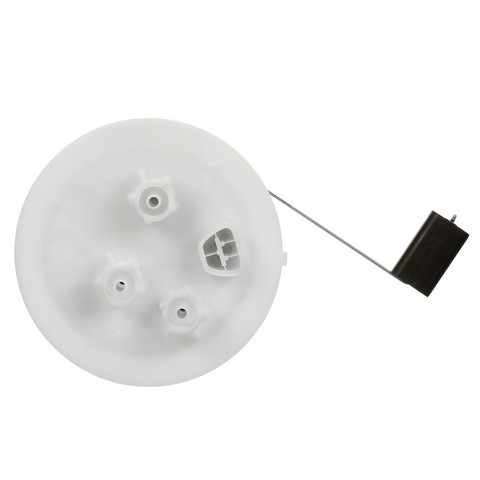

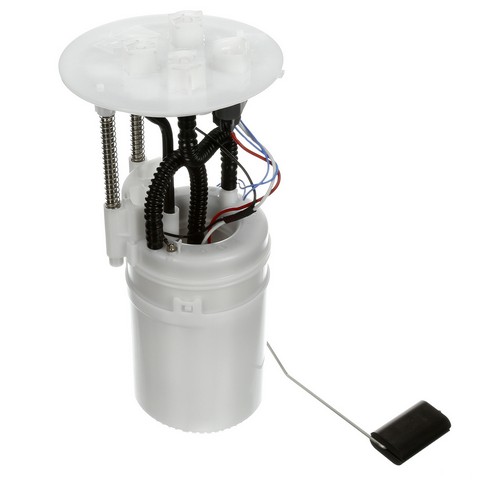

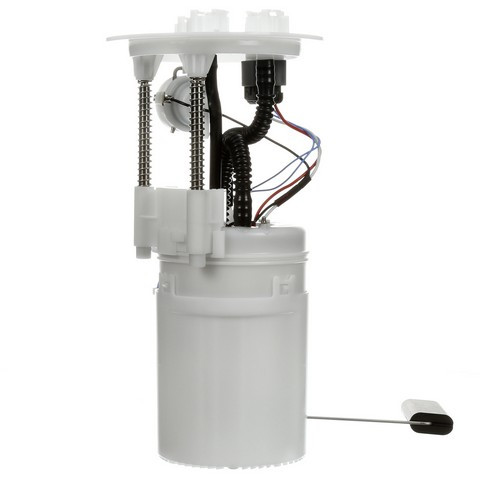

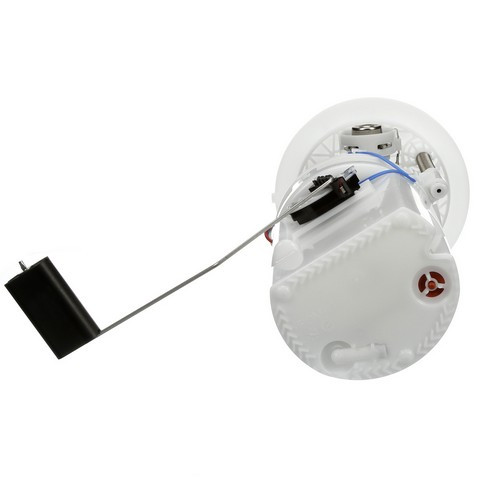

Fuel Pump Module for 2012-2019 Toyota Tundra & More - Delphi FG1624

Delphi FG1624 fuel pump module for the 2012-2019 Toyota Tundra V8 5.7L and other vehicles delivers fuel from the tank to the engine. This fuel pump assembly is built to Delphi's OE standards and comes with its float arm.

• Empty float height and float retention match specification for correct gas gauge readings
• Lower amperage draw puts less load on the vehicle's electrical system
• Validated and tested, then matched to the right vehicle application
• Design and durability for lower failure rates

Quick facts

• Part: Delphi FG1624 fuel pump module
• Also called: fuel pump assembly
• Fits: 2012-2019 Toyota Tundra V8 5.7L and other vehicles
• Condition: New

A worn fuel pump module can show up as hard starting, stalling or a fuel gauge that reads wrong. These signs alone do not prove the module is the problem, since a failed fuel pump relay can also leave the engine hard to start.

Fits

This is a direct-fit fuel pump module for the 2012-2019 Toyota Tundra V8 5.7L and the 2012-2018 Toyota Sequoia V8 5.7L.

Specifications

• Quantity per vehicle: 1
• Float arm: included
• Condition: New
• Country of origin: Thailand

In the box

One fuel pump module with its float arm and one instruction sheet. This listing is one module, and the vehicle takes one.

Installation notes

• Check the fuel tank and clean it before the module goes in.
• The instruction sheet in the box gives the installation steps.

Interchange: 77020-0C120 · 83320-0C040
4011487 · E9199M · DFG1624 · P77054M · A30506 · C0764M · SP9175M · USEP9199M
