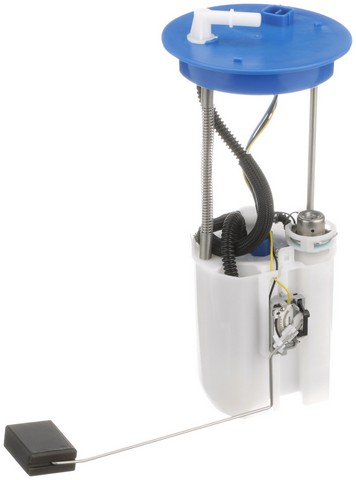

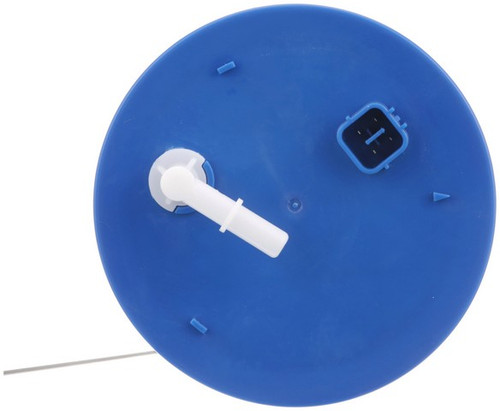

Delphi FG1680 fuel pump module for the 2016-2022 Honda Pilot V6 3.5L and other vehicles feeds fuel from the tank to the engine. This Delphi fuel pump module assembly is built to the brand's own OE standards.
- Lower amperage, so the pump puts less load on the vehicle's electrical system
- Empty float height and float retention set for a correct gas gauge reading
- Validated and tested for the application it is matched to
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG1680 fuel pump module
- Also called: fuel pump assembly
- Fits: 2016-2022 Honda Pilot V6 3.5L and other vehicles
- Condition: New
Hard starting, stalling, a whine from the tank or an erratic fuel gauge can mean the fuel pump assembly is wearing out. A fuse, a relay or the wiring in the pump circuit can be behind a no-start or a stall as well, so trace the cause before ordering.
Fits
This module is listed for a wide range of Honda, Acura and BMW models, including the 2017-2025 Honda Ridgeline V6 3.5L and the 2019-2025 Honda Passport V6 3.5L. If your car is not named here, look up your year and engine in the "Vehicles it fits" section.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Country of origin: Thailand
In the box

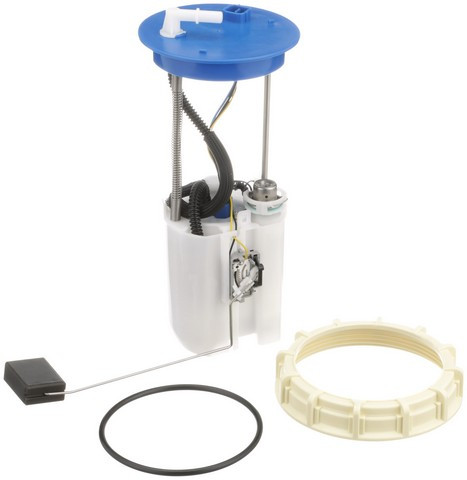

One fuel pump module with a float arm, a seal, a lock ring and an instruction sheet. This listing holds one module, and each vehicle takes one.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box gives the steps.
Interchange: 16 11 7 195 465 · 17045-TG7-A10 · 17045-TZ5-A00 · 17045-TZ5-A10 · 17045-TZ5-A11 · 17047-TZ5-A00 · 17047-TZ5-A01 · 17047-TZ5-A10 · 17052-T0C-000
DFG1680 · P77052M · 17045TG7A11 · A30504 · SP8408M
This part cross-references / interchanges with the following part numbers:
DFG1680, 16 11 7 195 465, P77052M, 17045-TG7-A10, 17045TG7A11, 17045-TZ5-A00, 17045-TZ5-A10, 17045-TZ5-A11, 17047-TZ5-A00, 17047-TZ5-A01, 17047-TZ5-A10, 17052-T0C-000, A30504, SP8408M
Frequently Asked Questions
Is the Delphi FG1680 the right fuel pump module for a 2016-2022 Honda Pilot V6 3.5L?
Yes. Delphi FG1680 is listed for the 2016-2022 Honda Pilot V6 3.5L, which takes one module.
Does the Delphi fuel module come with a lock ring and seal?
Yes. The module comes with a float arm, a seal, a lock ring and an instruction sheet.
Does the Delphi fuel pump module give a correct gas gauge reading?
Yes. Its empty float height and float retention match OE specifications, which sets the gas gauge reading correctly.
Should the fuel tank be cleaned before installing this fuel pump module?
Yes. Check and clean the fuel tank first, and follow the instruction sheet that comes with the module.
Is the Delphi module a replacement for number 17045-TZ5-A00?
Yes. Delphi FG1680 replaces 17045-TZ5-A00, along with the other numbers on the Interchange line.
