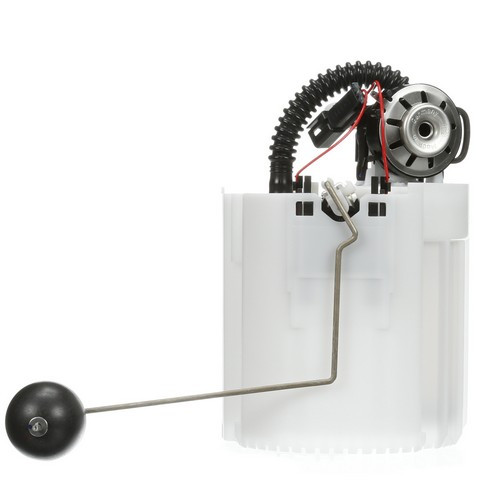

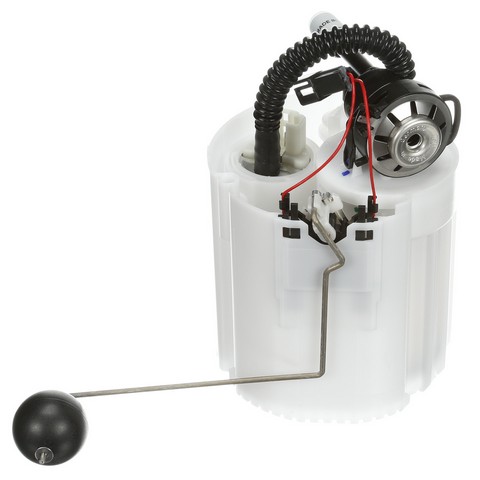

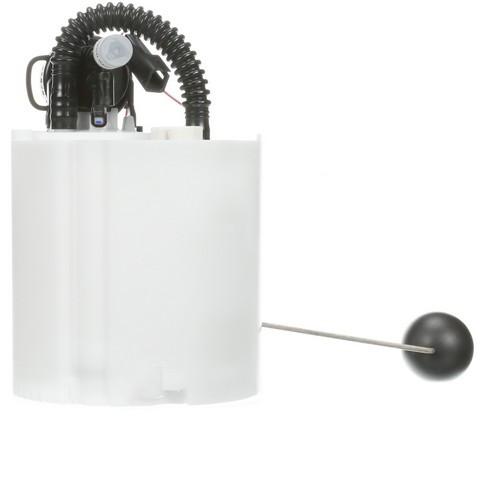

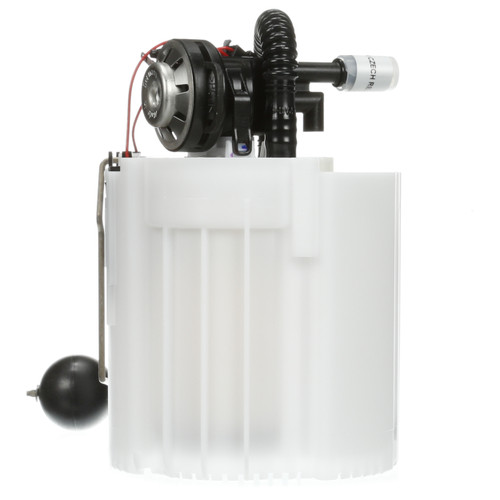

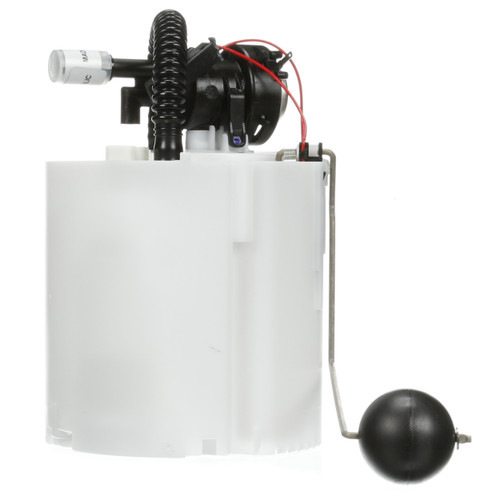

Delphi FG1682 fuel pump module for the 2001-2003 Volvo S60 5-cylinder 2.4L, the 2001-2004 S60 5-cylinder 2.3L, the 2004-2006 S60 5-cylinder 2.5L, the 2005-2009 S60 5-cylinder 2.4L, the 2008-2009 S60 5-cylinder 2.5L and other vehicles carries fuel from the tank to the engine. This Delphi fuel pump module assembly, also called a fuel pump assembly, comes with its float arm.
- Lower amperage draw puts less load on the vehicle's electrical system
- Empty float height and float retention set for a correct gas gauge reading
- Validated and tested, then matched to the right vehicle application
- Design and durability that give lower failure rates
Quick facts
- Part: Delphi FG1682 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2001-2003 Volvo S60 5-cylinder 2.4L, the 2001-2004 S60 5-cylinder 2.3L, the 2004-2006 S60 5-cylinder 2.5L, the 2005-2009 S60 5-cylinder 2.4L, the 2008-2009 S60 5-cylinder 2.5L and other vehicles
- Condition: New
Hard starting, sputtering or a gas gauge that reads wrong can mean the module is worn, though a clogged fuel filter or a worn spark plug can be behind the first two, so find the cause before replacing it.
Fits
The same module also fits the 2001-2003 Volvo V70 5-cylinder 2.4L, the 2001-2004 V70 5-cylinder 2.3L, the 2003 V70 5-cylinder 2.5L, the 2005 V70 5-cylinder 2.4L and the 2006 V70 5-cylinder 2.5L. Delphi builds all its fuel pumps to its OE standards. These cars need only one module, and this listing is one.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module with its float arm and one instruction sheet.
Installation notes
- Check and clean the fuel tank when fitting the module.
- An instruction sheet comes with the part.
Interchange: 30792879-0 · 30794758-0
4011506 · E8847M · DFG1682 · 67946 · 69742 · P76365M · SP5126M · 30792879 · 30794758
This part cross-references / interchanges with the following part numbers:
4011506, E8847M, DFG1682, 67946, 69742, P76365M, SP5126M, 30792879, 30792879-0, 30794758, 30794758-0
Frequently Asked Questions
Does Delphi FG1682 fit the 2008-2009 Volvo S60 5-cylinder 2.5L?
Yes. Delphi FG1682 fits the 2008-2009 Volvo S60 5-cylinder 2.5L, and that car takes one module.
Does the Delphi fuel pump module come with the float arm?
Yes. This module comes with its float arm and an instruction sheet.
Does this fuel pump module match the original float height?
Yes. Its empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Does the Delphi fuel module replace number 4011506?
Yes. Delphi FG1682 is listed as a replacement for 4011506; the other cross-reference numbers are on the Interchange line.
Do I need to clean the tank when installing a Delphi module?
Yes. The fuel tank should be checked and cleaned when the module goes in, and the instruction sheet that comes with it covers the installation.
