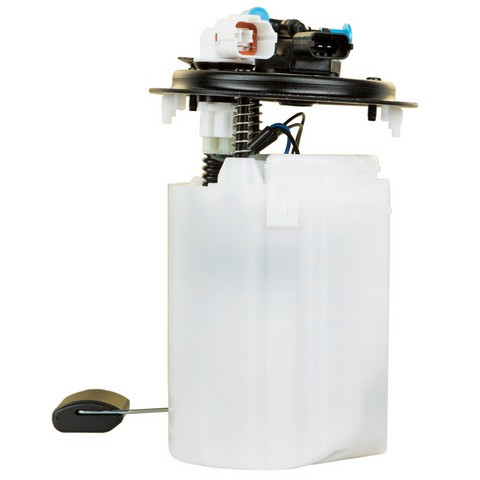

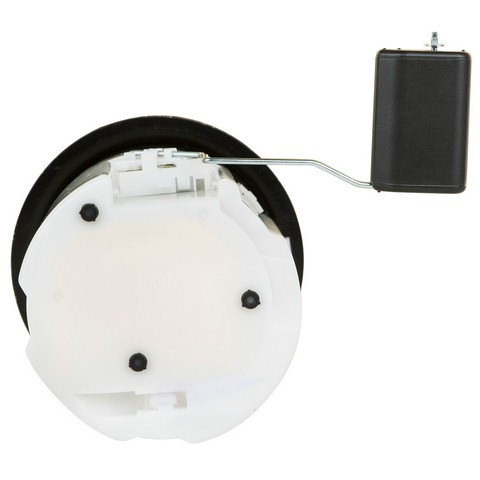

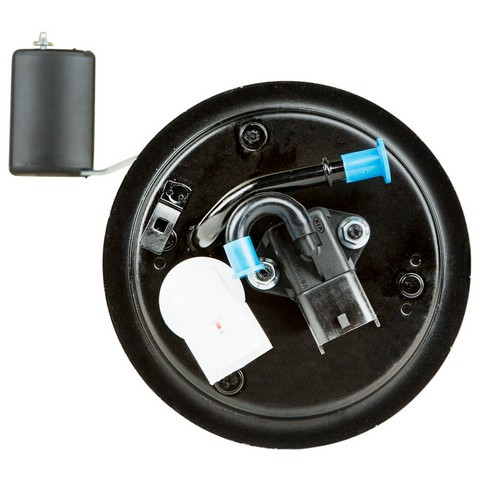

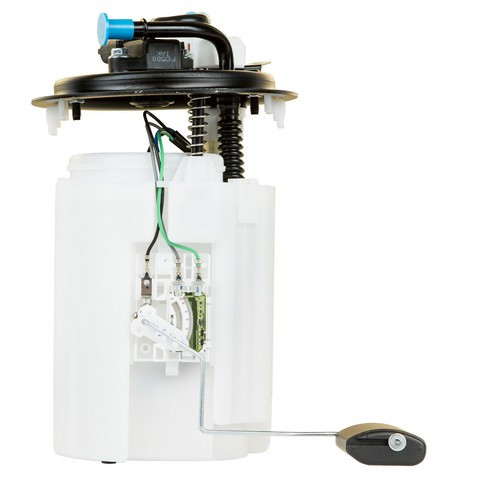

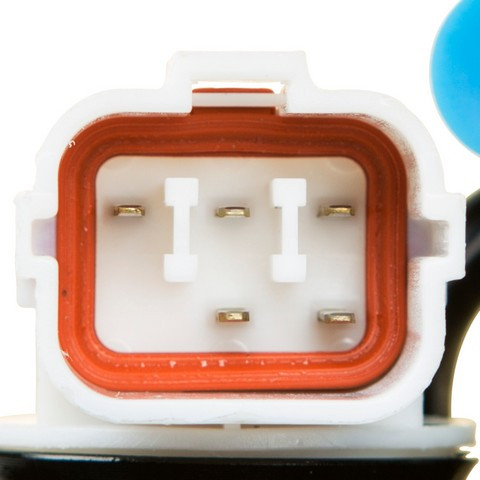

Fuel Pump Module for 2004-2005 Kia Rio - Delphi FG1253

Delphi FG1253 fuel pump module for the 2004-2005 Kia Rio 4-cylinder 1.6L delivers fuel from the tank to the engine. This Delphi fuel pump module assembly also carries the float arm that reports the fuel level to the gas gauge.

• Empty float height and float retention set for a correct gas gauge reading
• Lower amperage, so the pump draws less load on the vehicle's electrical system
• Validated and tested module
• Design and durability for lower failure rates

Quick facts

• Part: Delphi FG1253 fuel pump module
• Also called: fuel pump assembly
• Fits: 2004-2005 Kia Rio 4-cylinder 1.6L
• Condition: New

A worn fuel pump module can show up as hard starting, stalling or a gas gauge that reads wrong. Those signs alone do not prove the pump is at fault, since a clogged fuel filter can cause some of them too. Some shops call this part a fuel pump assembly.

Fits

It fits the 2004-2005 Kia Rio 4-cylinder 1.6L and is matched to that application. Its float height and float retention match OE specifications, and it is built to Delphi's OE standards.

Specifications

• Quantity per vehicle: 1
• Float arm: included
• Condition: New

In the box

One fuel pump module with float arm and one instruction sheet. This listing holds one module, and the 2004-2005 Kia Rio 4-cylinder 1.6L takes one.

Installation notes

• An instruction sheet comes with the module for the steps.
• Check and clean the fuel tank before installing the module.

Interchange: 94460-FD500 · 31110-FD500 · 31110-FD500DS
4010427 · E8636M · CFG1253 · 69885 · P76407M · A33089 · SP3026M · USEP8636M
