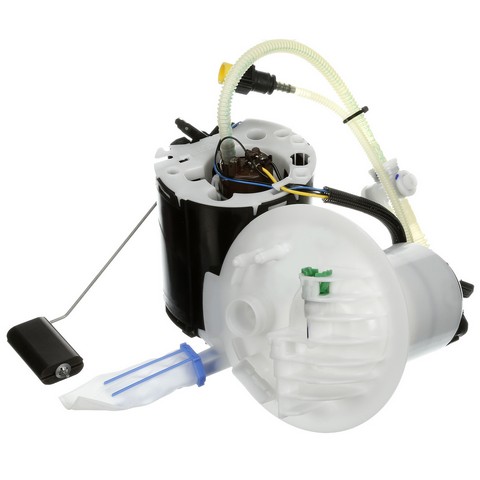

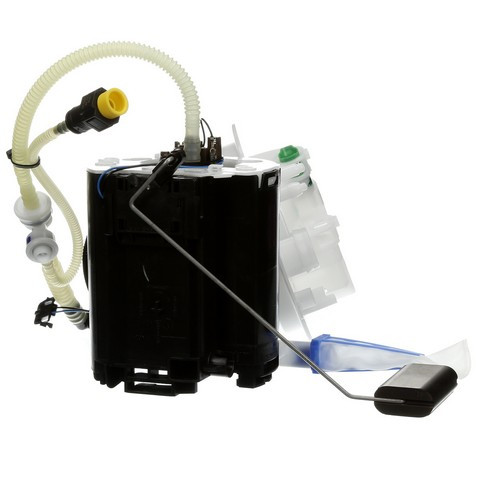

Delphi FG1697 fuel pump module for the 2008-2012 Land Rover LR2 6-cylinder 3.2L delivers fuel from the tank to the engine. This Delphi fuel pump module assembly, also called a fuel pump assembly, comes with its float arm.
- Empty float height and float retention are set to specification for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested, and matched to the right vehicle application
- Design and durability give lower failure rates
Quick facts
- Part: Delphi FG1697 fuel pump module
- Also called: fuel pump assembly
- Fits: 2008-2012 Land Rover LR2 6-cylinder 3.2L
- Condition: New
A failing module can show up as hard starting, stalling or a gas gauge that reads wrong. Before you replace it, rule out the fuel filter, the fuse, the relay and the wiring, because each of those can produce similar symptoms.
Fits
Delphi FG1697 is a direct-fit replacement for the 2008-2012 Land Rover LR2 6-cylinder 3.2L (L6-3.2L). Delphi builds all its fuel pumps to its own OE standards.
Specifications
Fit and size
- Engine: L6-3.2L
- Quantity per vehicle: 1
Build and materials
- Type: fuel pump module assembly with float arm
- Condition: New
In the box
One fuel pump module with float arm and one instruction sheet. This listing holds one module, and the 2008-2012 Land Rover LR2 6-cylinder 3.2L takes one.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part for the steps.
Interchange: LR0 03779 · LR0 05568 · LR0 05619 · LR0 08218 · LR0 10431 · LR0 20015 · LR0 38599
E9125M · DFG1697 · SP5140M · USEP9125M
This part cross-references / interchanges with the following part numbers:
E9125M, DFG1697, LR0 03779, LR0 05568, LR0 05619, LR0 08218, LR0 10431, LR0 20015, LR0 38599, SP5140M, USEP9125M
Frequently Asked Questions
Is the Delphi fuel pump module FG1697 right for the 2008-2012 Land Rover LR2 6-cylinder 3.2L?
Yes. Delphi FG1697 is listed for the 2008-2012 Land Rover LR2 6-cylinder 3.2L (L6-3.2L), and that vehicle takes one module.
Does the Delphi fuel module come with the float arm?
Yes. Delphi FG1697 comes with the float arm and an instruction sheet. Nothing else is listed in the box.
Does the Delphi module match the original float height?
Yes. Its empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Can a gas gauge that reads wrong point to a failing fuel pump module?
It can, because the float arm is part of the module. Hard starting or stalling are other signs, and a shop can test the fuel system to confirm.
Do I need to do anything to the fuel tank before installing the Delphi FG1697?
Yes. Check and clean the fuel tank first. The instruction sheet in the box covers the installation steps.
