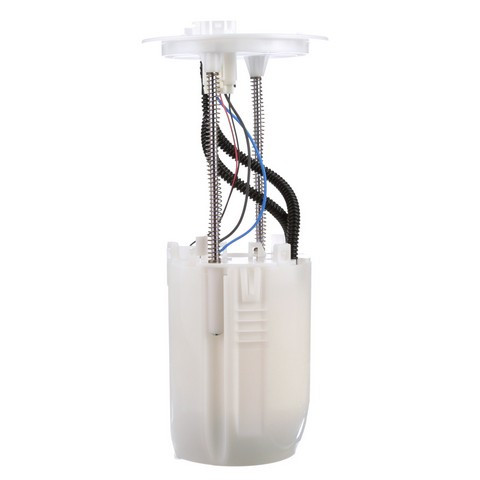

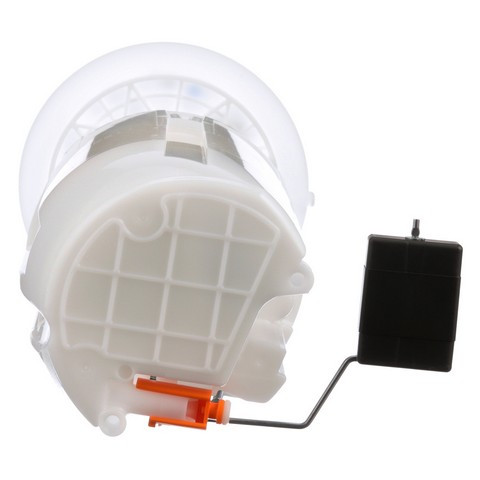

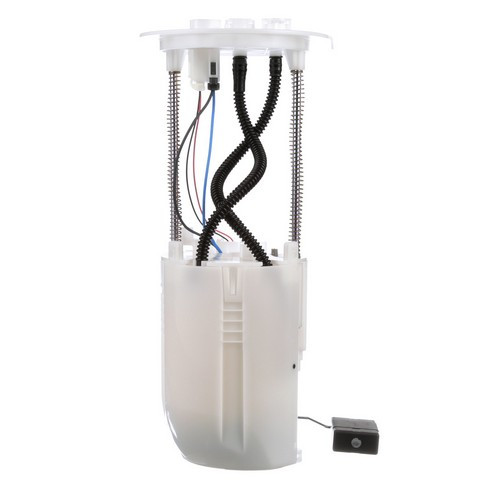

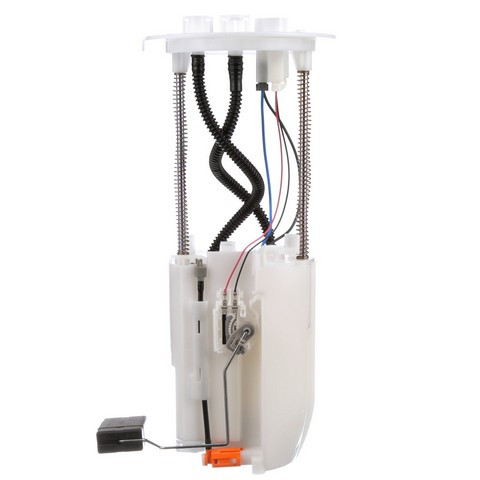

Delphi FG1700 fuel pump module for the 2010-2014 Toyota FJ Cruiser V6 4.0L pumps fuel from the tank to the engine and carries the float arm for the gas gauge. This Delphi fuel pump module assembly is built to Delphi's OE standards, and its empty float height and float retention match OE specifications.
- Lower amperage draw puts less load on the vehicle's electrical system
- Float arm set for a correct gas gauge reading
- Validated and tested before it is matched to its application
- Design and durability behind lower failure rates
Quick facts
- Part: Delphi FG1700 fuel pump module
- Also called: fuel pump assembly
- Fits: 2010-2014 Toyota FJ Cruiser V6 4.0L
- Condition: New
A worn fuel pump assembly can show up as hard starting, sputtering under load or a gas gauge that reads wrong. Those signs can also come from a blown fuse, a damaged connector or a dirty tank, so look over the fuse and connector with the engine off first; a shop can test fuel pressure.
Fits
It fits the 2010-2014 Toyota FJ Cruiser V6 4.0L, which takes one.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Condition: New
In the box
One fuel pump module with float arm and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing.
- An instruction sheet comes with the part for the steps.
Interchange: 77020-35170 · 77020-35171 · 83320-35610 · 83320-35611 · 83320-35640
4011515 · E8789 · E9067M · DFG1700 · P76902 · A46581 · SP9180M
This part cross-references / interchanges with the following part numbers:
4011515, E8789, E9067M, DFG1700, P76902, A46581, SP9180M, 77020-35170, 77020-35171, 83320-35610, 83320-35611, 83320-35640
Frequently Asked Questions
Does the Delphi FG1700 fit the 2010-2014 Toyota FJ Cruiser V6 4.0L?
Yes. Delphi FG1700 is listed for the 2010-2014 Toyota FJ Cruiser V6 4.0L, and that vehicle takes one.
Does the Delphi module come with its float arm and instructions?
Yes. Delphi FG1700 includes the float arm and an instruction sheet.
How does the Delphi fuel module keep the gas gauge accurate?
This module's empty float height and float retention match OE specifications, which helps the gauge show the right fuel level.
How does the Delphi fuel pump module affect the electrical system?
This fuel pump module has a lower amperage draw, so it puts less load on the vehicle's electrical system.
Does the Delphi FG1700 replace part number 77020-35170?
Yes. 77020-35170 is one of the numbers this fuel pump module replaces, along with 83320-35610 and the others on the Interchange line.
