Fuel Pump Module for 2011-2015 Mazda CX-9 - Delphi FG1715

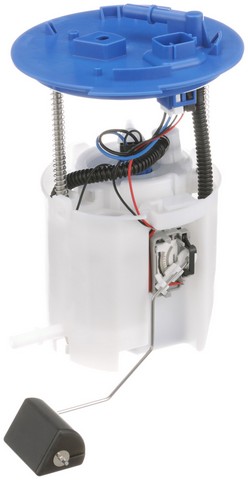

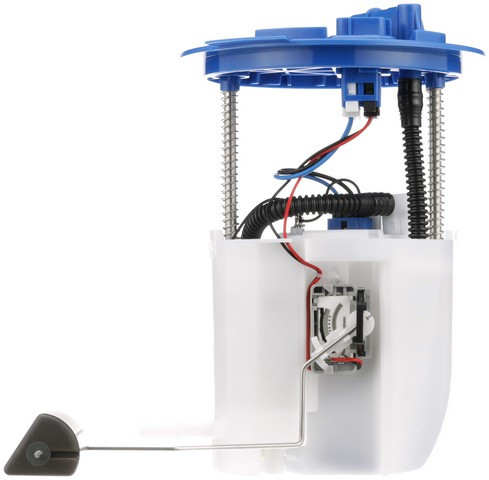

Delphi FG1715 fuel pump module for the 2011-2015 Mazda CX-9 V6 3.7L delivers fuel from the tank to the engine. The Delphi fuel pump module assembly comes with its float arm and is built to OE standards.

• Empty float height and float retention are set for a correct gas gauge reading
• Lower amperage draw puts less load on the vehicle's electrical system
• Validated, tested and matched to its vehicle application
• Design and durability aimed at lower failure rates

Quick facts

• Part: Delphi FG1715 fuel pump module
• Also called: fuel pump assembly
• Fits: 2011-2015 Mazda CX-9 V6 3.7L
• Condition: New

Hard starting, stalling or a fuel gauge that reads wrong can mean the pump or float is worn, but a clogged fuel filter or a bad fuel pump relay can be behind them as well. Trace the cause first, then replace the module if it is the culprit.

Fits

This module is a direct-fit replacement for the 2011-2015 Mazda CX-9 V6 3.7L.

Specifications

• Quantity per vehicle: 1
• Float arm: included
• Condition: New

In the box

One fuel pump module with its float arm and one instruction sheet. This listing is one module, and the 2011-2015 Mazda CX-9 V6 3.7L takes one.

Installation notes

• An instruction sheet comes with the module.
• Check and clean the fuel tank when you install it.

Interchange: CA41-13-280 · CA41-13-350 · CA43-13-35X
E9023M · CFG1715 · SP4132M · SP4147M · USEP9023M
