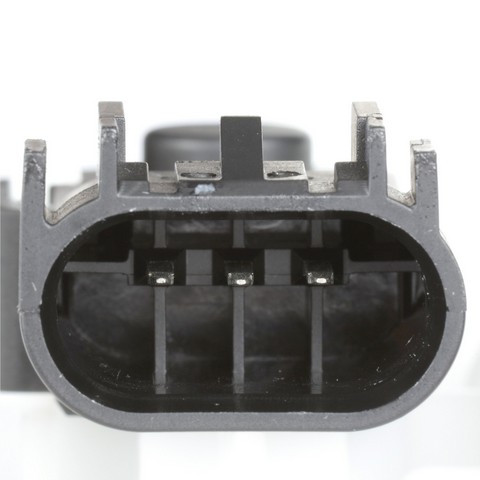

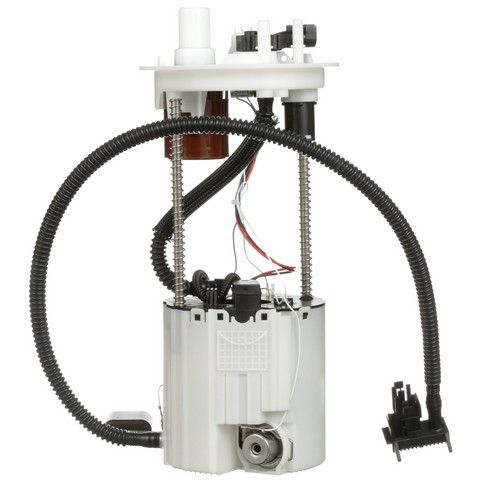

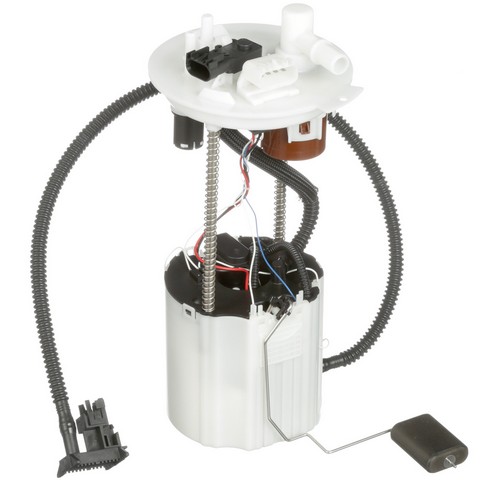

Delphi FG1716 fuel pump module for the 2012 Chevrolet Captiva Sport V6 3.0L and the 2012-2015 Captiva Sport 4-cylinder 2.4L moves fuel from the tank to the engine. This Delphi fuel pump module assembly, also called a fuel pump assembly, includes the float arm that sets the gas gauge reading.
- Built to Delphi's own standards
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draws less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Lower failure rates from its design and durability
Quick facts
- Part: Delphi FG1716 fuel pump module
- Also called: fuel pump assembly
- Fits: 2012 Chevrolet Captiva Sport V6 3.0L and the 2012-2015 Captiva Sport 4-cylinder 2.4L
- Condition: New
A fuel gauge that reads wrong, a long crank or a no-start can point to a failing pump or float, though a fault elsewhere in the fuel system can show up the same way. Before replacing the module, look at the fuel pump fuse with the engine off, since a blown fuse or wiring fault can look like a dead pump. Fuel pressure tests are best left to a shop.
Fits
This module fits the 2012 Chevrolet Captiva Sport V6 3.0L and the 2012-2015 Captiva Sport 4-cylinder 2.4L; each takes one.
Specifications
- Quantity per vehicle: 1
- Type: fuel pump module assembly with float arm
- Condition: New
In the box
One fuel pump module assembly with float arm, seals and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- Follow the instruction sheet for the steps.
Interchange: M100149 · MU2130 · E4036M · DFG1716 · 13585472 · 13591799 · SP6720M · USEP4036M
This part cross-references / interchanges with the following part numbers:
M100149, MU2130, E4036M, DFG1716, 13585472, 13591799, SP6720M, USEP4036M
Frequently Asked Questions
Does this Delphi fuel pump module fit the 2012-2015 Chevrolet Captiva Sport 4-cylinder 2.4L?
Yes. Delphi FG1716 fits the 2012-2015 Chevrolet Captiva Sport 4-cylinder 2.4L and the 2012 Captiva Sport V6 3.0L, with one module per vehicle.
Does this Delphi fuel module come with the float arm and seals?
Yes. Delphi FG1716 is a fuel pump module assembly with the float arm, seals and an instruction sheet.
Is the float on this Delphi module set to OE height?
Yes. Empty float height and float retention on this module match OE specifications, which is meant to give a correct gas gauge reading.
Should I clean the fuel tank before putting in a new fuel pump module?
Yes. Check and clean the fuel tank before installing Delphi FG1716, and follow the instruction sheet in the box for the steps.
Does Delphi FG1716 interchange with 13585472?
Yes. 13585472 is one of the numbers this module replaces, along with 13591799, M100149 and others on the Interchange line.
