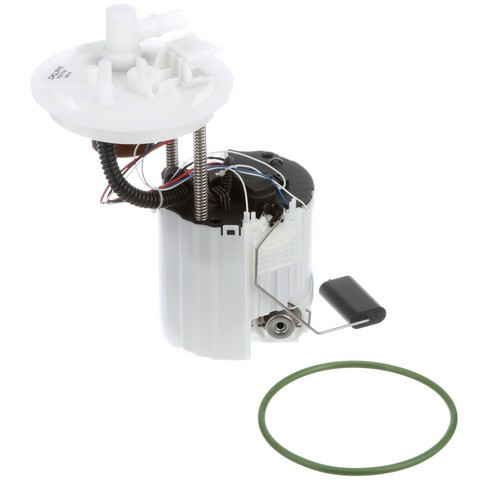

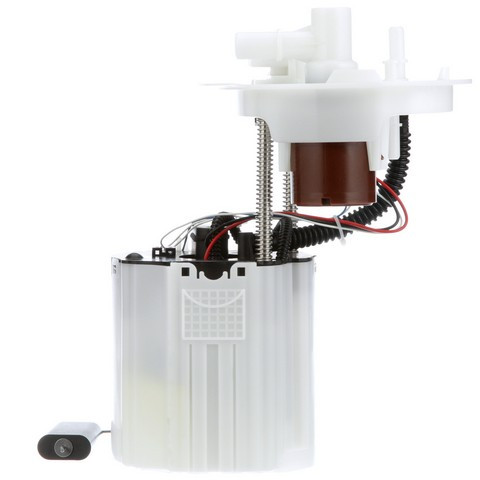

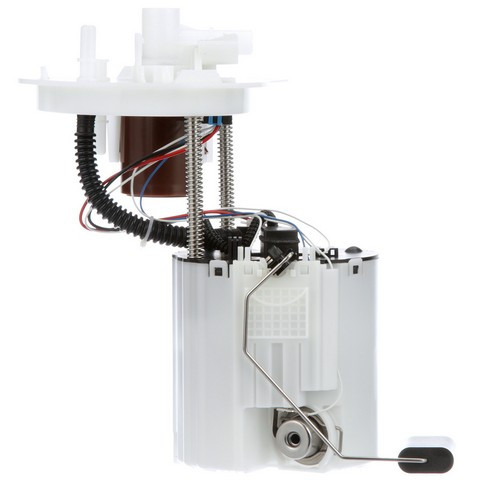

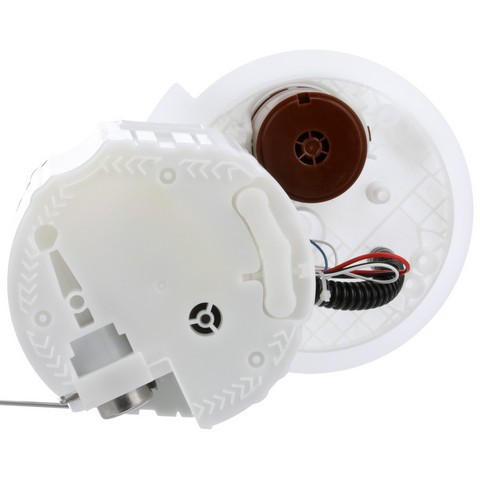

Delphi FG1741 fuel pump module for the 2012-2017 Chevrolet Sonic 4-cylinder 1.4L or 1.8L moves fuel from the tank toward the engine. This Delphi fuel pump module assembly also carries the float arm that reports fuel level to the gas gauge.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the vehicle application
- Lower failure rates from its design and durability
Quick facts
- Part: Delphi FG1741 fuel pump module
- Also called: fuel pump assembly
- Fits: 2012-2017 Chevrolet Sonic 4-cylinder 1.4L or 1.8L
- Condition: New
A worn fuel pump assembly can show up as hard starting, sputtering, stalling or a gas gauge that reads wrong. Before you replace the module, rule out a clogged fuel filter, a blown fuse or a bad relay, and a dirty tank, because those can cause similar symptoms.
Fits
It fits the 2012-2017 Chevrolet Sonic with the L4-1.4L or the L4-1.8L engine, one module per fuel tank. Delphi builds the pump to its OE standards.
Specifications
- Quantity per vehicle: 1
- Construction: module assembly with float arm and seal
- Condition: New
In the box
One fuel pump module assembly with float arm and seal, plus an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- Follow the included instruction sheet for the steps.
Interchange: M100056 · MU2108 · SK1392 · 4011355 · E4056M · CFG1741 · P76867M · 13504910 · 13507609 · 13507610 · 13577817 · 13592112 · 13592120 · A33195 · SP6704M · USEP4056M
This part cross-references / interchanges with the following part numbers:
M100056, MU2108, SK1392, 4011355, E4056M, CFG1741, P76867M, 13504910, 13507609, 13507610, 13577817, 13592112, 13592120, A33195, SP6704M, USEP4056M
Frequently Asked Questions
Is the Delphi FG1741 fuel pump module right for the 2012-2017 Chevrolet Sonic 4-cylinder 1.4L or 1.8L?
Yes. Delphi FG1741 fits the 2012-2017 Chevrolet Sonic with either the 4-cylinder 1.4L or 1.8L engine, and the car takes one.
What comes with the Delphi fuel module besides the pump?
This fuel pump module assembly comes with a float arm, a seal and an instruction sheet.
Is the float on this Delphi module set for an accurate gas gauge?
Yes. Empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Is the amperage draw of this Delphi fuel pump module low?
Yes. Its lower amperage draw puts less load on the vehicle's electrical system.
Do I need to clean the fuel tank before installing Delphi FG1741?
Yes. Before installing Delphi FG1741, check and clean the fuel tank, then follow the instruction sheet that comes with the module.
