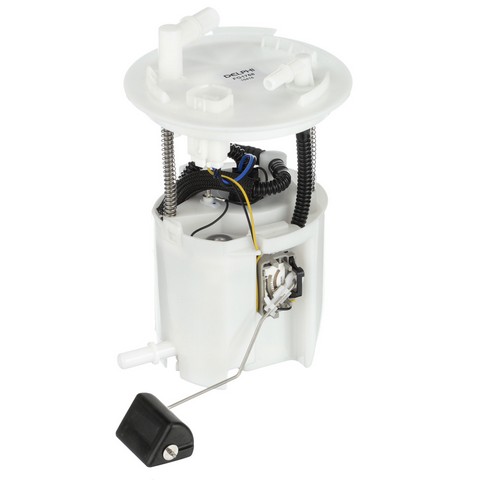

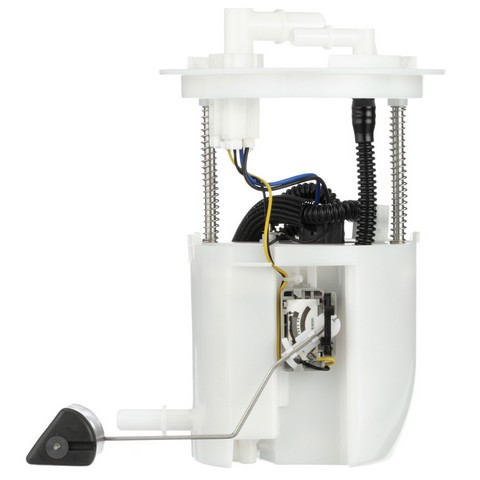

Delphi FG1758 left fuel pump module for the 2011-2014 Ford Edge V6 3.5L or 3.7L and other vehicles moves fuel from the tank to the engine. Sold as a fuel pump assembly too, it carries a float arm that reports the fuel level to the gauge.
- Empty float height and float retention are held to original specifications for correct gas gauge readings
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the vehicle application
- Design and durability that give lower failure rates
Quick facts
- Part: Delphi FG1758 fuel pump module
- Also called: fuel pump assembly
- Fits: 2011-2014 Ford Edge V6 3.5L or 3.7L and other vehicles
- Position: Left
- Condition: New
Hard starting, sputtering or an inaccurate fuel gauge can mean this module is failing, though other parts of the fuel and electrical system can produce those signs too. With the engine off, look over the fuel pump fuse and its wiring for damage before you replace the module.
Fits
It fits the 2011-2014 Ford Edge V6 3.5L or 3.7L and the 2011-2015 Lincoln MKX V6 3.7L. Delphi builds all of its fuel pumps to its own OE standards.
Specifications
Fit and size
- Position: Left
- Quantity per vehicle: 1
Build and materials
- Condition: New
- Float arm: included
- Seal: included
In the box
One fuel pump module with float arm, seal and instruction sheet. This listing holds one module, and the left position takes one.
Installation notes
- An instruction sheet comes with the module.
- Check and clean the fuel tank during installation.
Interchange: BT4Z 9A299-A · BT4Z 9H307-C · PFS-581 · PS-425
4010759 · E2518 · E2579M · CFG1758 · P76762M · C0152M · A33146 · SP1381 · SP2466M
This part cross-references / interchanges with the following part numbers:
4010759, E2518, E2579M, CFG1758, P76762M, BT4Z 9A299-A, BT4Z 9H307-C, PFS-581, PS-425, C0152M, A33146, SP1381, SP2466M
Frequently Asked Questions
Does the Delphi fuel pump module FG1758 fit the 2011-2014 Ford Edge V6 3.5L as well as the V6 3.7L?
Yes. Delphi FG1758 is listed for the 2011-2014 Ford Edge with either the V6 3.5L or the V6 3.7L, and it is the left-side module.
Does the Delphi fuel pump module assembly include the float arm and seal?
Yes. Delphi FG1758 comes with the float arm, a seal and an instruction sheet. This listing holds one module.
Will the Delphi fuel module read the gas gauge correctly?
Yes. This module's empty float height and float retention match OE specifications for correct gas gauge readings.
Should I clean the tank before installing the Delphi module?
Yes. Check the fuel tank and clean it as part of the install, so the new module goes into a clean tank.
Is the Delphi FG1758 left module right for the 2011-2015 Lincoln MKX V6 3.7L?
Yes. Delphi FG1758 is listed for the 2011-2015 Lincoln MKX with the V6 3.7L, in the left position.
