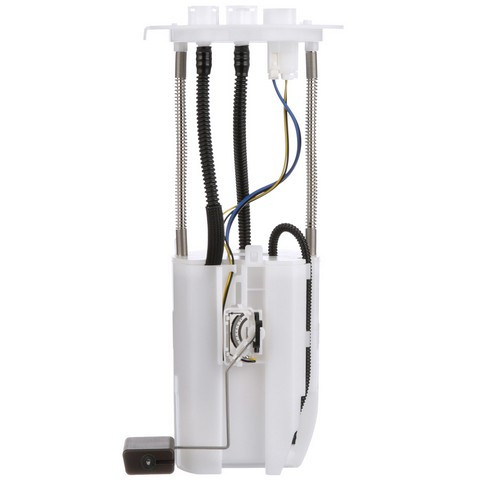

Delphi FG1760 fuel pump module for the 2007-2009 Toyota FJ Cruiser V6 4.0L moves fuel from the tank toward the engine. Also called a fuel pump assembly, it includes a float arm for the gas gauge.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Lower failure rates from its design and durability
Quick facts
- Part: Delphi FG1760 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007-2009 Toyota FJ Cruiser V6 4.0L
- Condition: New
A hard start, stalling, a gas gauge that reads wrong or a whine from the tank can all be signs of module wear. These signs alone do not prove the module is the problem, since a failed fuel pump relay can also stop fuel delivery.
Fits
This Delphi fuel pump module assembly fits the 2007-2009 Toyota FJ Cruiser V6 4.0L. Its empty float height and float retention match OE specifications, and it is built to Delphi's OE standards.
Specifications
- Engine: V6 4.0L
- Quantity per vehicle: 1
- Condition: New
In the box
One fuel pump module with float arm, seal, clips and an instruction sheet. This listing holds one module, and the 2007-2009 Toyota FJ Cruiser V6 4.0L takes one.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the steps.
Interchange: 77020-35121 · 83320-35610 · 83320-35611 · 83320-35640
4010634 · E8725 · E8878M · DFG1760 · P76617M · A30385 · SP9034M
This part cross-references / interchanges with the following part numbers:
4010634, E8725, E8878M, DFG1760, P76617M, A30385, SP9034M, 77020-35121, 83320-35610, 83320-35611, 83320-35640
Frequently Asked Questions
Does the Delphi FG1760 fit the 2007-2009 Toyota FJ Cruiser V6 4.0L?
Yes. Delphi FG1760 is listed for the 2007-2009 Toyota FJ Cruiser V6 4.0L, and that vehicle takes one module.
Does the Delphi fuel module come with a float arm and seal?
Yes. This fuel pump module comes with the float arm, a seal, clips and an instruction sheet.
Is the float height on this Delphi module set to OE specifications?
Yes. Empty float height and float retention match OE specifications, which is what keeps the gas gauge reading correct.
Which symptoms can point to a worn Delphi fuel pump module?
Hard starting, stalling or a gas gauge that reads wrong can be signs of wear. Testing the fuel system needs the engine running and fuel lines opened, so leave that to a shop.
Does the Delphi FG1760 need anything done to the tank before it goes in?
Yes. Check and clean the fuel tank first, and follow the instruction sheet that comes with Delphi FG1760 for the steps.
