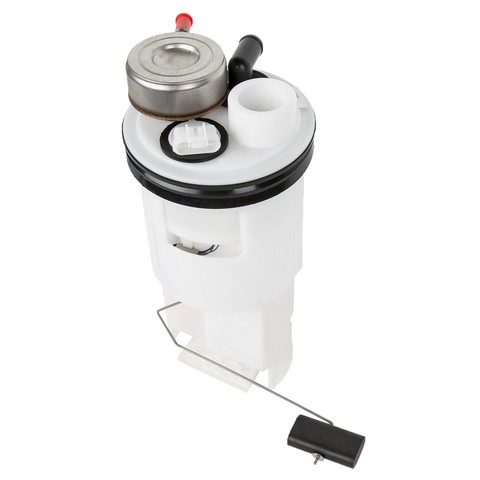

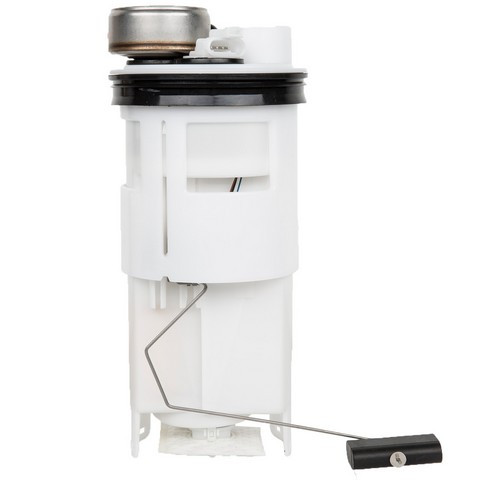

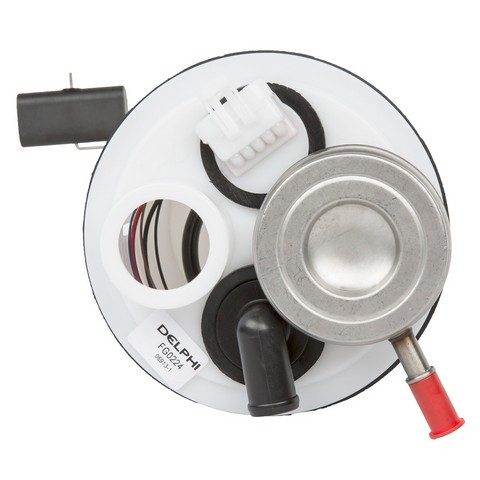

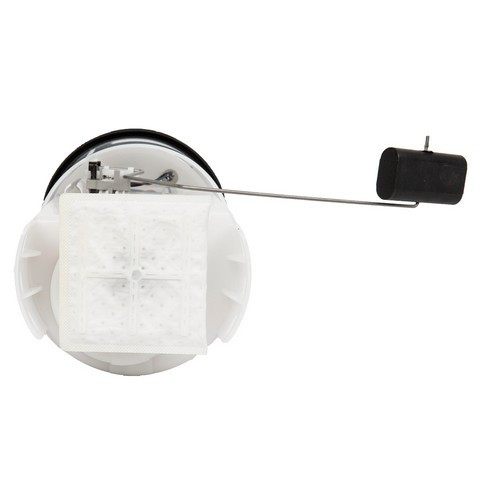

Delphi FG0224 fuel pump module for the 1994 Dodge Dakota 4-cylinder 2.5L and the 1994-1995 Dakota V6 3.9L or V8 5.2L pumps fuel from the tank to the engine. This Delphi fuel pump module assembly includes the float arm that tracks fuel level for the gas gauge.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested, then matched to its application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG0224 fuel pump module
- Also called: fuel pump assembly
- Fits: the 1994 Dodge Dakota 4-cylinder 2.5L and the 1994-1995 Dakota V6 3.9L or V8 5.2L
- Condition: New
A whine from the tank, hard starting or stalling can mean the pump is wearing out. A clogged fuel filter, a faulty fuel pump relay or a blown fuse can be behind these signs too, so find the cause before you buy a new module.
Fits
Built to Delphi's OE standards, this fuel pump module is a direct-fit replacement for the 1994 Dodge Dakota 4-cylinder 2.5L and the 1994-1995 Dakota V6 3.9L or V8 5.2L.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
- Seal: included
- Float height and retention: match OE specifications
In the box
One fuel pump module with float arm, seal and instruction sheet. This listing holds one module, and the vehicle takes one.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the installation steps.
Interchange: 4762 407 · 4762 408 · 953-3066 · 953-6000
PMU163 · 4010048 · E7062M · DFG0224 · 67620 · P74675M · AFS0281S · RE0281S · EFP122M · C0410M · A30054 · SP6163M · USEP7062M
This part cross-references / interchanges with the following part numbers:
PMU163, 4010048, E7062M, DFG0224, 67620, P74675M, 4762 407, 4762 408, 953-3066, 953-6000, AFS0281S, RE0281S, EFP122M, C0410M, A30054, SP6163M, USEP7062M
Frequently Asked Questions
Does the Delphi fuel pump module fit the 1994-1995 Dodge Dakota V8 5.2L?
Yes. Delphi FG0224 fits the 1994-1995 Dodge Dakota V8 5.2L.
Does the Delphi fuel module come with a float arm and seal?
Yes. This Delphi FG0224 listing is one fuel pump module with a float arm, a seal and an instruction sheet.
Is the float on this Delphi module set for an accurate gas gauge reading?
Yes. On this fuel pump module, empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Does this fuel pump assembly need the tank cleaned before it goes in?
Yes. Check and clean the fuel tank before installing the module. An instruction sheet comes in the box for the steps.
Does Delphi FG0224 replace the number 953-3066?
Yes. 953-3066 is one of the numbers this fuel pump module replaces. 953-6000 and the other cross-reference numbers are on the Interchange line.
