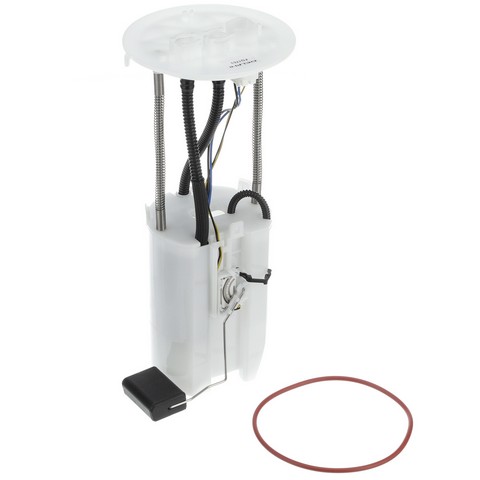

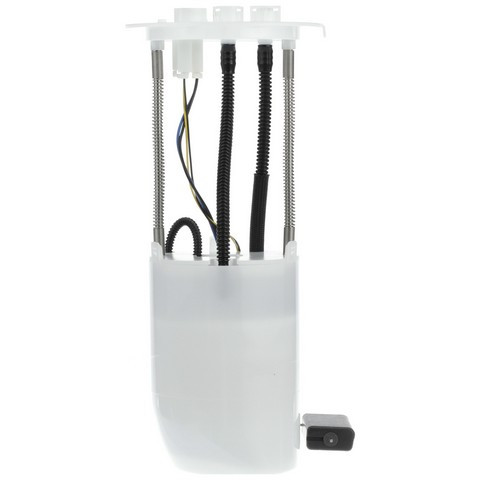

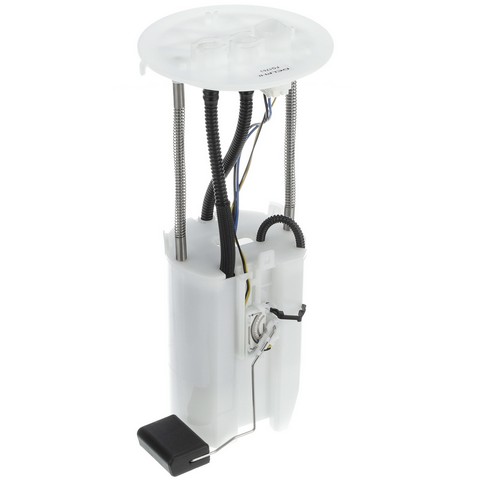

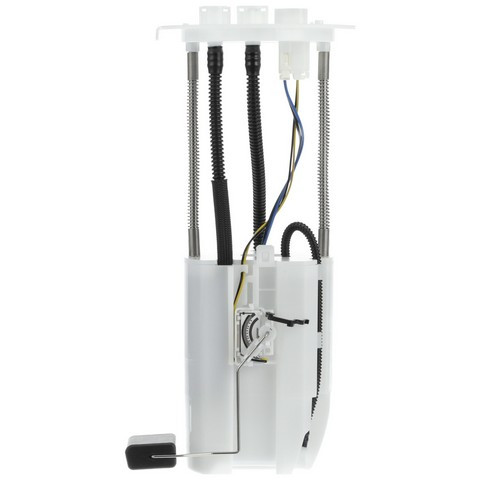

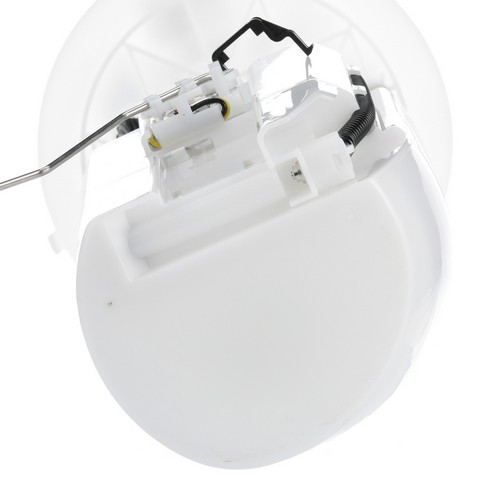

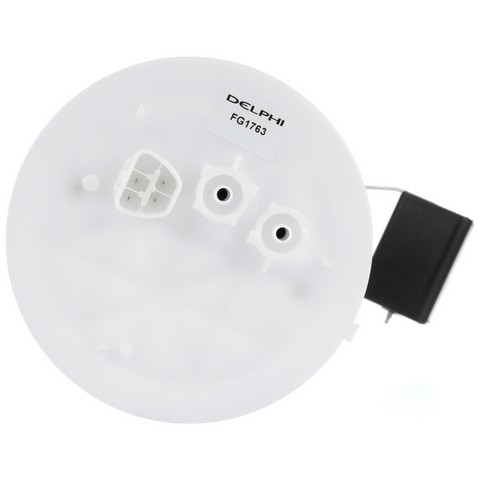

Fuel Pump Module for 2010-2024 Toyota 4Runner & More - Delphi FG1763

Delphi FG1763 fuel pump module for the 2010-2024 Toyota 4Runner and other vehicles delivers fuel from the tank to the engine. The Delphi fuel pump module also carries a float arm that reports the fuel level to the gauge.

• Empty float height and float retention are set to give a correct gas gauge reading
• Lower amperage draw puts less load on the vehicle's electrical system
• Validated and tested, then matched to the right vehicle application
• Lower failure rates due to its design and durability

Quick facts

• Part: Delphi FG1763 fuel pump module
• Also called: fuel pump assembly
• Fits: 2010-2024 Toyota 4Runner and other vehicles
• Condition: New

Hard starting, stalling or a fuel gauge that reads wrong can mean the module is worn, though a failed fuel pump relay or a blown fuse can be behind the same signs. If the module is the cause, this assembly replaces it.

Fits

The 2010-2020 Toyota 4Runner V6-4.0L and the 2021-2024 4Runner take this module, and so do the 2012-2020 Lexus GX460 V8-4.6L and the 2021-2023 GX460. A single module goes in each.

Specifications

In the box

One fuel pump module assembly with float arm and one instruction sheet.

Installation notes

• Check and clean the fuel tank before fitting the module.
• The instruction sheet gives the installation steps.

Interchange: 23070-31010 · 77020-35150 · 77020-35151
4010749 · E8789 · E9068M · DFG1763 · P76902 · P77307M · A46538 · SP1386 · SP9018M · USEP9068M
