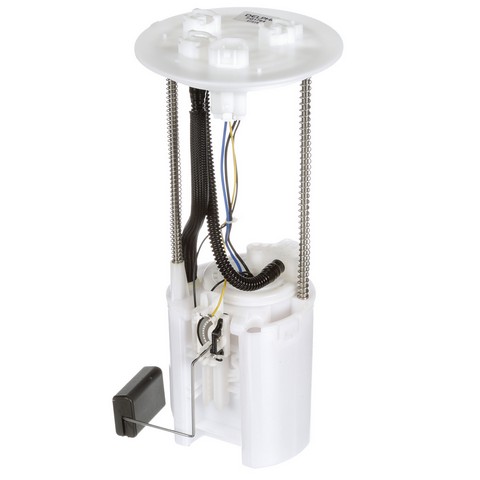

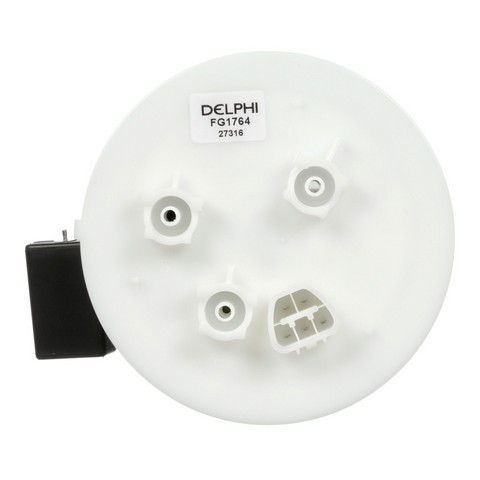

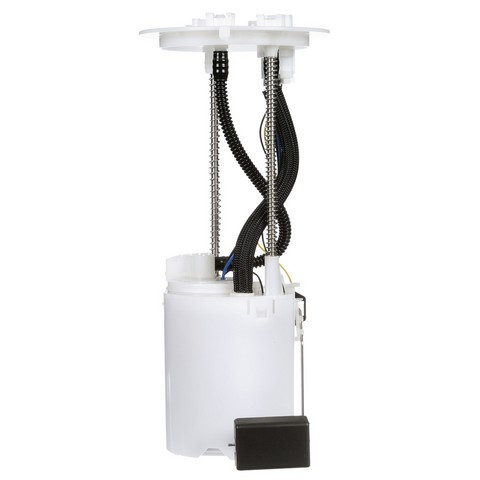

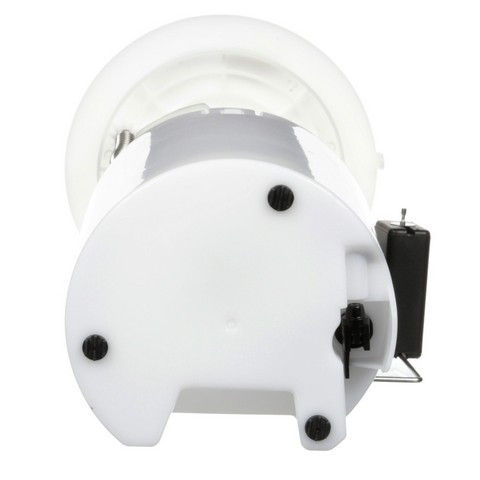

Fuel Pump Module for 2003-2004 Toyota 4Runner & More - Delphi FG1764

Delphi FG1764 fuel pump module for the 2003-2004 Toyota 4Runner V6 4.0L or V8 4.7L and other vehicles delivers fuel from the tank to the engine. Its float arm reports the tank level to the gas gauge.

• Draws lower amperage, which puts less load on the vehicle's electrical system
• Empty float height and float retention are held to specification for a correct gas gauge reading
• Validated and tested
• Design and durability behind lower failure rates

Quick facts

• Part: Delphi FG1764 fuel pump module
• Also called: fuel pump assembly
• Fits: 2003-2004 Toyota 4Runner V6 4.0L or V8 4.7L and other vehicles
• Condition: New

Hard starting, stalling or an erratic fuel gauge can mean the module is worn, though a faulty fuel pump relay or a wiring fault can be behind them too, so find the cause before you replace it.

Fits

This module fits the 2003-2004 Toyota 4Runner V6 4.0L or V8 4.7L and the 2003-2005 Lexus GX470 V8 4.7L. Delphi builds its fuel pumps to its OE standards and matches each one to its vehicle application.

Specifications

• Quantity per vehicle: 1
• Construction: module assembly with float arm
• Condition: New

In the box

One fuel pump module with float arm and one instruction sheet. You get one module in this listing, and the application list calls for one per vehicle.

Installation notes

• Check and clean the fuel tank before fitting the module.
• The instruction sheet in the box covers the installation steps.

Interchange: 951-0024 · 77020-35060 · 77020-35061 · 77020-35062 · 77240-35190
4010377 · E8501 · E9077M · DFG1764 · 69748 · P76514 · P77305M · E16334 · SP9015M · USEP9077M
