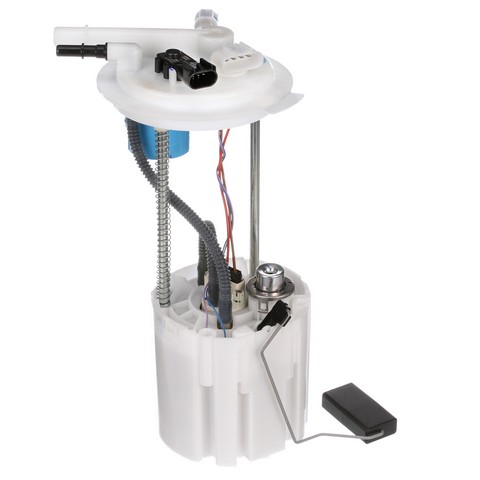

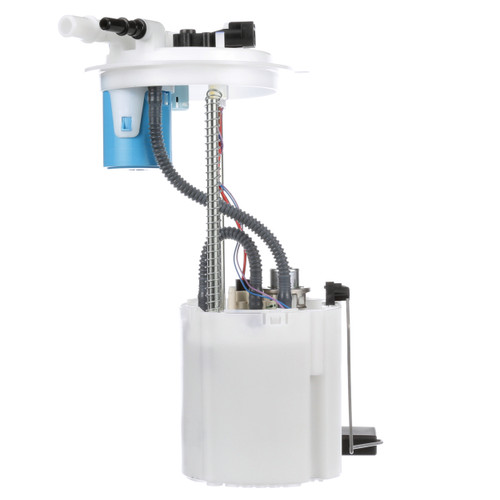

Delphi FG1805 fuel pump module for the 2008-2010 Saturn Sky 4-cylinder 2.0L and other vehicles pumps fuel from the tank toward the engine. Also called a fuel pump assembly, it pairs the pump with a float arm for the gas gauge.
- Built to Delphi's own standards, as are all Delphi fuel pumps
- Empty float height and float retention give a correct gas gauge reading
- Lower amperage draws less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1805 fuel pump module
- Also called: fuel pump assembly
- Fits: 2008-2010 Saturn Sky 4-cylinder 2.0L and other vehicles
- Condition: New
Hard starting, sputtering under load or a gas gauge that reads wrong can point to a failing module. A clogged fuel filter, a weak relay, a blown fuse or damaged wiring can also be behind those symptoms, so track down the cause before buying a new module.
Fits
This module fits the 2008-2010 Saturn Sky 4-cylinder 2.0L and the 2008-2009 Pontiac Solstice 4-cylinder 2.0L. Either car takes one module. Its empty float height and float retention match OE specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: L4-2.0L
Build and materials
- Condition: New
- Float arm: included
- Seals: included
In the box

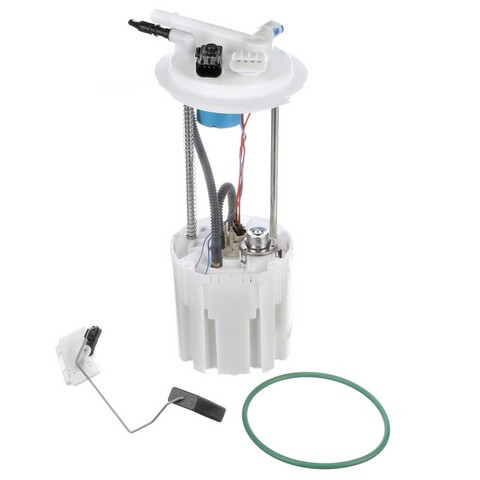

One fuel pump module with float arm, seals and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the package covers the steps.
Interchange: M10121 · MU1704 · E3795M · DFG1805 · 19168380 · 19210221 · 19257689 · SP6692M
This part cross-references / interchanges with the following part numbers:
M10121, MU1704, E3795M, DFG1805, 19168380, 19210221, 19257689, SP6692M
Frequently Asked Questions
Does the Delphi fuel pump module assembly FG1805 fit the 2008-2009 Pontiac Solstice 4-cylinder 2.0L?
Yes. Delphi FG1805 fits the 2008-2009 Pontiac Solstice 4-cylinder 2.0L, and it also fits the 2008-2010 Saturn Sky 4-cylinder 2.0L.
Does the Delphi fuel module FG1805 include the float arm and seals?
Yes. The Delphi FG1805 package holds the fuel pump module with float arm, seals and an instruction sheet.
How does the Delphi fuel pump module keep the gas gauge reading correct?
The empty float height and float retention match OE specifications. That is what gives a correct gas gauge reading.
What symptoms can come from a worn Delphi FG1805 fuel pump module?
Stalling, a whine from the tank area or a no-start can be signs. A shop can test fuel pressure to confirm whether the module is the cause.
What should I do before installing the Delphi module?
Clean and inspect the fuel tank before the new module goes in. An instruction sheet comes in the package for the installation steps.
