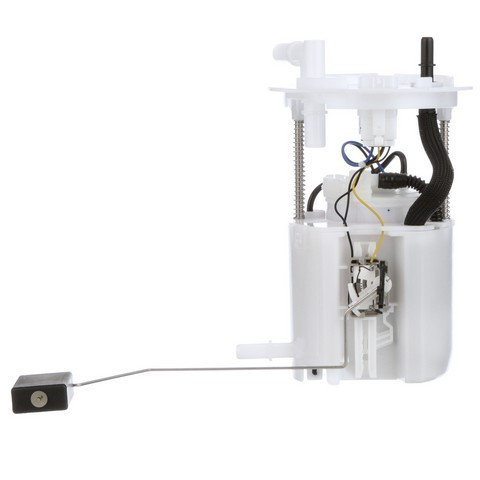

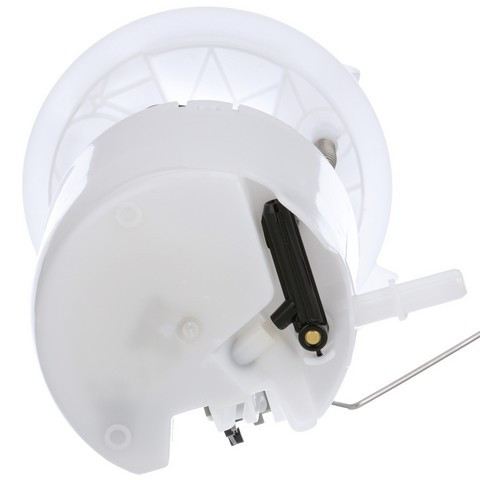

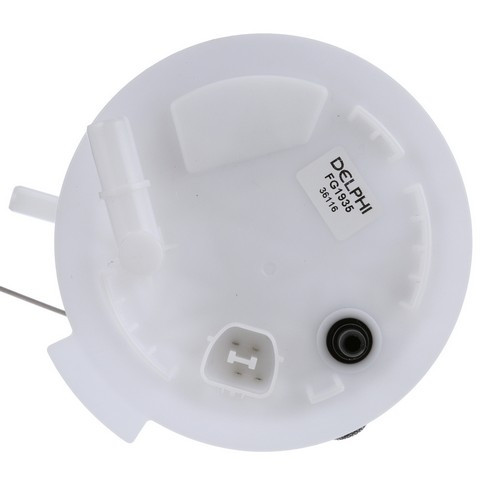

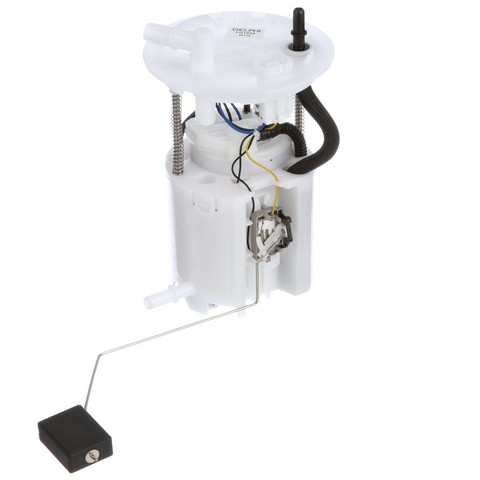

Delphi FG1935 right fuel pump module for the 2013-2019 Ford Explorer V6 3.5L, the 2016-2019 Explorer 4-cylinder 2.3L and other vehicles moves fuel from the tank toward the engine. This Delphi fuel pump module assembly, also called a fuel pump assembly, is built to Delphi's OE standards, and its float settings match OE specifications.
- Empty float height and float retention that give a correct gas gauge reading
- Lower amperage draw puts less load on the electrical system
- Validated and tested for the application it is matched to
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1935 fuel pump module
- Also called: fuel pump assembly
- Fits: 2013-2019 Ford Explorer V6 3.5L, the 2016-2019 Explorer 4-cylinder 2.3L and other vehicles
- Position: Right
- Condition: New
A clogged fuel filter, a weak relay or a wiring fault can be behind hard starting, stalling or an odd gauge reading as well as a worn module, so find the cause before you buy.
Fits
It is listed for a wide range of Ford and Lincoln models, including the 2014-2019 Ford Police Interceptor Utility V6 3.5L, the 2018-2019 Police Interceptor Utility V6 3.7L, the 2013-2019 Lincoln MKT V6 3.5L and the 2014-2019 MKT V6 3.7L. If your car is not named here, open the "Vehicles it fits" section and look up your exact model and engine.
Specifications
Fit and size
- Position: Right
- Quantity per application: 1
Build and materials
- Construction: module assembly with float arm
- Condition: New
- Country of origin: Thailand
In the box

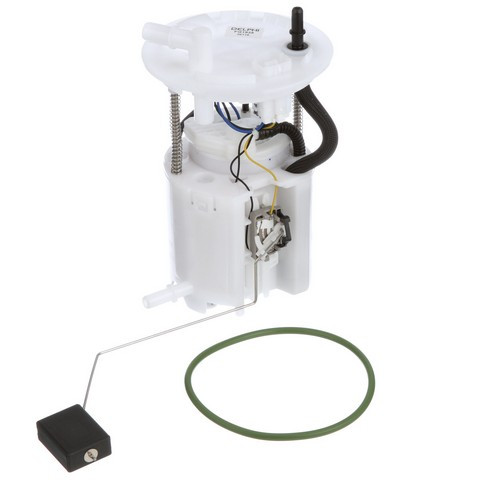

One fuel pump module with float arm, one seal and one instruction sheet. This listing is one module for the right side, and that side takes one.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the package gives the steps.
Interchange: DA8Z 9H307-D · DA8Z 9H307-G · DA8Z 9H307-K · DA8Z 9H307-L · PFS-1028 · PFS-1042
4010780 · 4011011 · 4011304 · 4011479 · E2605M · E2610M · DFG1935 · P77220M · P77345M · A46030 · SP2510M · SP2511M
This part cross-references / interchanges with the following part numbers:
4010780, 4011011, 4011304, 4011479, E2605M, E2610M, DFG1935, P77220M, P77345M, DA8Z 9H307-D, DA8Z 9H307-G, DA8Z 9H307-K, DA8Z 9H307-L, PFS-1028, PFS-1042, A46030, SP2510M, SP2511M
Frequently Asked Questions
Does the Delphi FG1935 fuel pump module fit the 2016-2019 Ford Explorer 4-cylinder 2.3L?
Yes. Delphi FG1935 is listed for the 2016-2019 Ford Explorer 4-cylinder 2.3L and is a right-side module. Other cars are in the "Vehicles it fits" section.
Does the Delphi fuel module come with the float arm and seal?
Yes. The package holds the module with its float arm, one seal and an instruction sheet.
How does the float on the Delphi FG1935 affect gas gauge accuracy?
Delphi FG1935 has an empty float height and float retention that match OE specifications, which is meant to give a correct gas gauge reading.
Does the Delphi fuel pump module need anything done to the tank first?
Yes. The tank should be checked and cleaned before the new module goes in. An instruction sheet comes with the part for the steps.
What can a failing fuel pump module look like?
Hard starting, stalling or a gas gauge reading that is off can be signs. Tests that open a fuel line belong with a shop.
