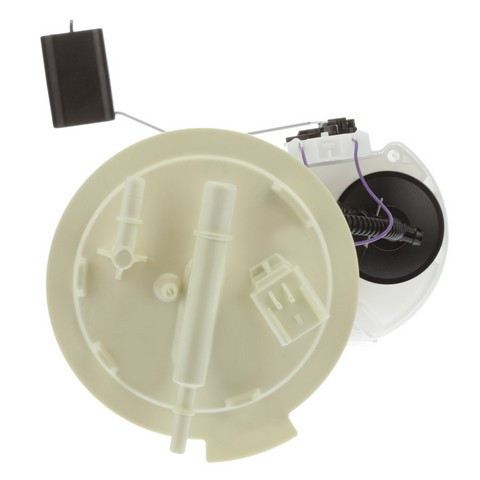

Fuel Pump Module for 2015-2017 Ford F-150 - Delphi FG1990

Delphi FG1990 fuel pump module for the 2015-2017 Ford F-150 V6 3.5L or V8 5.0L moves fuel from the tank to the engine. This Delphi fuel pump module assembly includes the float arm that tells the gas gauge how much fuel is left.

• Empty float height and float retention are held to specification for a correct gas gauge reading
• Lower amperage draw puts less load on the vehicle's electrical system
• Validated, tested and matched to the vehicle application
• Design and durability aimed at lower failure rates

Quick facts

• Part: Delphi FG1990 fuel pump module
• Also called: fuel pump assembly
• Fits: 2015-2017 Ford F-150 V6 3.5L or V8 5.0L
• Condition: New

A worn fuel pump module can show up as hard starting, sputtering, a whine from the tank or a gas gauge that reads wrong. These signs alone do not prove the module is at fault, since a failed fuel pump relay can cause some of them too.

Fits

This is a direct-fit replacement for the 2015-2017 Ford F-150 V6 3.5L or V8 5.0L, and that truck takes one.

Specifications

• Quantity per vehicle: 1
• Float arm: included
• Condition: New
• Country of origin: Thailand

In the box

One fuel pump module with float arm, one instruction sheet and one tank seal.

Installation notes

• An instruction sheet comes with the part.
• Check and clean the fuel tank before installing.

Interchange: FL3Z 9H307-A · FL3Z 9H307-J · PFS-1052 · PFS-1177
E2654M · E2655M · DFG1990 · A46037 · SP2556M
