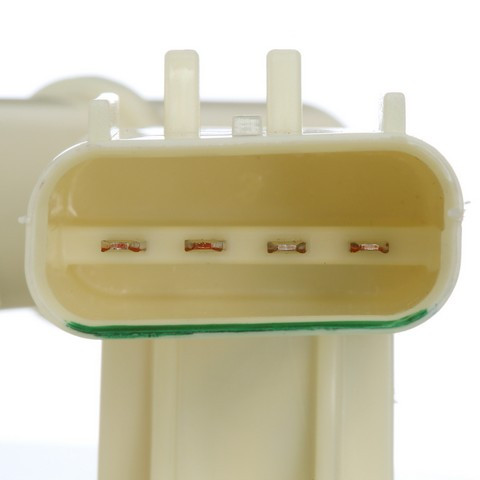

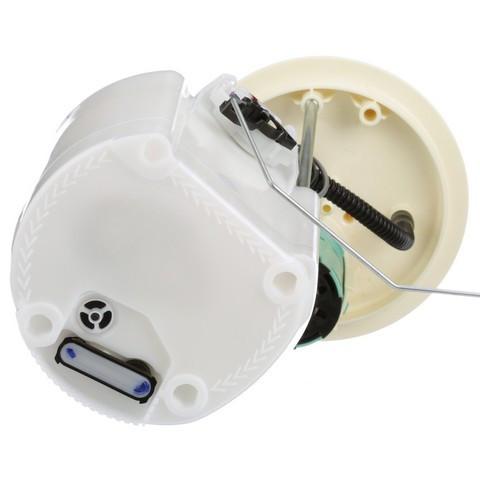

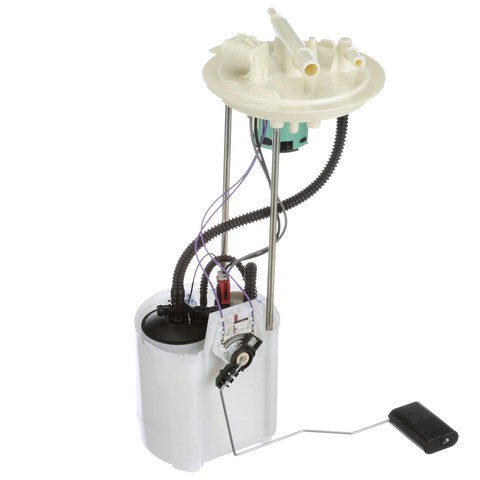

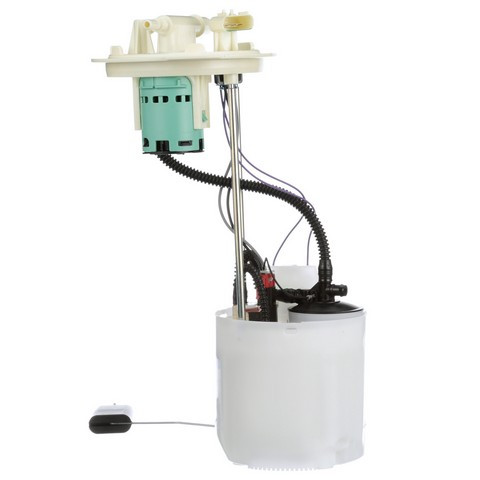

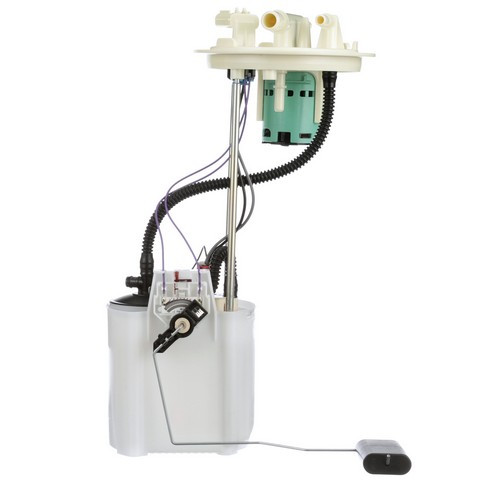

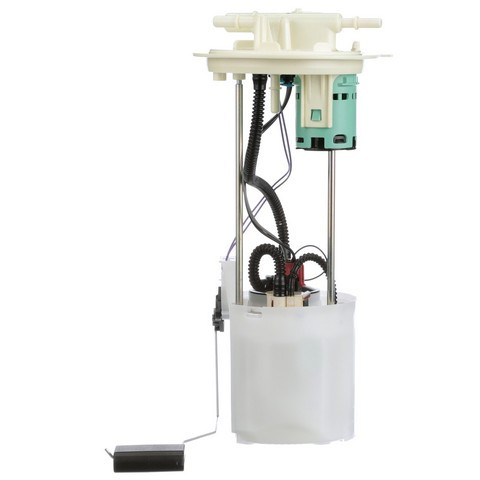

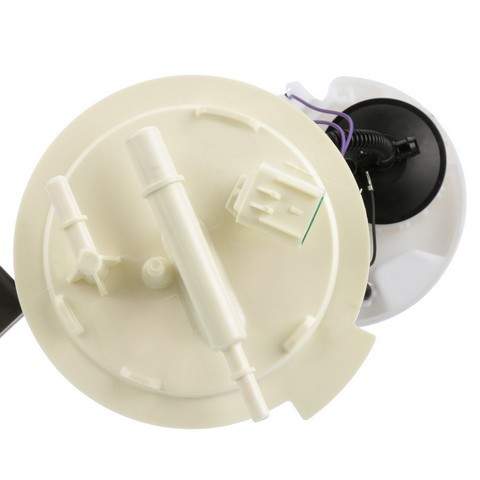

Delphi FG1997 fuel pump module for the 2015-2017 Ford F-150 V6 3.5L or V8 5.0L moves fuel from the tank toward the engine. This Delphi fuel pump module assembly, which some call a fuel pump assembly, pairs the pump with a float arm.
- Float arm with empty height and retention built for correct gas gauge readings
- Lower amperage, so the pump draws less load on the vehicle's electrical system
- Validated and tested
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1997 fuel pump module
- Also called: fuel pump assembly
- Fits: 2015-2017 Ford F-150 V6 3.5L or V8 5.0L
- Condition: New
Hard starting, sputtering or a fuel gauge that reads wrong can mean the module is wearing out. These signs alone do not prove the module is at fault, since a weak fuel pump relay is another common cause. If the module is the cause, this one replaces it.
Fits
It is a direct-fit replacement for the 2015-2017 Ford F-150 with either the V6 3.5L or the V8 5.0L engine. The empty float height and float retention match OE specifications, and the pump is built to Delphi's OE standards.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engines: V6-3.5L, V8-5.0L
Build and materials
- Construction: module assembly with float arm
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module assembly with float arm and one instruction sheet. The 2015-2017 Ford F-150 V6 3.5L or V8 5.0L takes one.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the steps.
Interchange: FL3Z 9H307-E · PFS-1056
4011417 · DFG1997 · P77434M · A46038 · SP2557M
This part cross-references / interchanges with the following part numbers:
4011417, DFG1997, P77434M, FL3Z 9H307-E, PFS-1056, A46038, SP2557M
Frequently Asked Questions
Does this Delphi fuel pump module fit the 2015-2017 Ford F-150 V6 3.5L or V8 5.0L?
Yes. Delphi FG1997 fits the 2015-2017 Ford F-150 with the V6 3.5L or the V8 5.0L engine, and the truck takes one.
What does the Delphi fuel module come with besides the pump?
This listing is one fuel pump module assembly with its float arm, plus an instruction sheet.
Will the float on this Delphi module give a correct gas gauge reading?
Its empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Do I need to prepare the fuel tank before installing this fuel pump module?
Yes. Check and clean the fuel tank first, and use the instruction sheet that comes with the part for the steps.
Is FL3Z 9H307-E the same part as the Delphi FG1997?
Yes. FL3Z 9H307-E is listed as an interchange number for Delphi FG1997, and the other cross-reference numbers are on the Interchange line.
