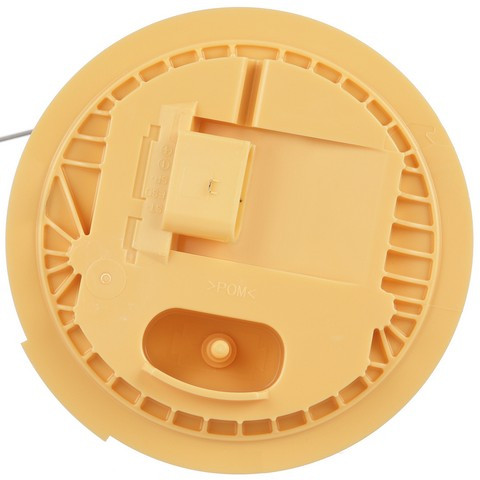

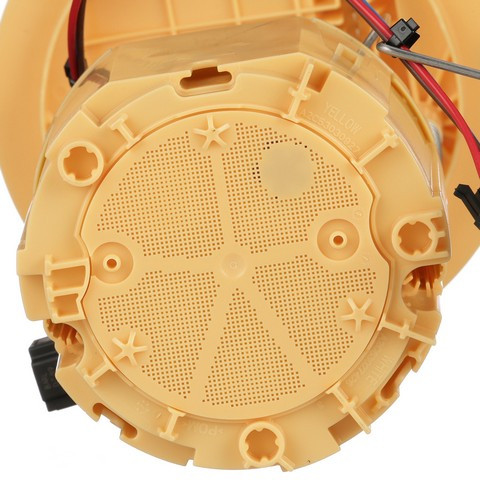

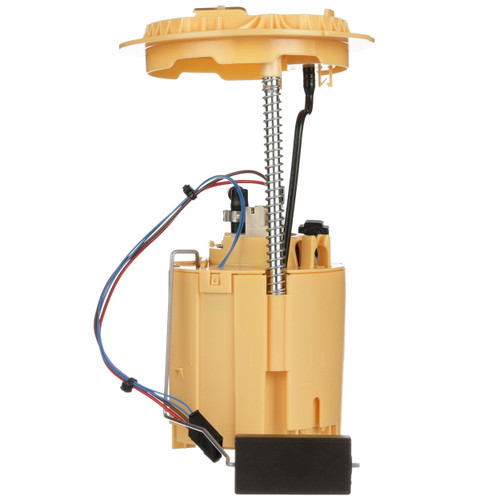

Delphi FG2173 right fuel pump module for the 2010-2012 Mercedes-Benz GL350 V6 3.0L and other vehicles sends fuel from the tank to the engine. The Delphi fuel pump module assembly, also called a fuel pump assembly, includes the float arm.
- Empty float height and float retention set to specification for a correct gas gauge reading
- Lower amperage draw, which puts less load on the vehicle's electrical system
- Validated, tested and matched to its vehicle application
- Lower failure rates from the module's design and durability
- Float arm included with the module assembly
Quick facts
- Part: Delphi FG2173 fuel pump module
- Also called: fuel pump assembly
- Fits: 2010-2012 Mercedes-Benz GL350 V6 3.0L and other vehicles
- Position: Right
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean the module is wearing out. A clogged fuel filter, a weak relay or a dirty tank can be behind the same signs, so find the cause before buying. If a failed Delphi fuel pump module is the cause, this one replaces it.
Fits
This right fuel pump module fits the 2010-2012 Mercedes-Benz GL350 V6 3.0L, the 2010-2011 Mercedes-Benz ML350 V6 3.0L and the 2007-2009 Mercedes-Benz GL320 V6 3.0L. This listing is one module for the right side, and the other side is ordered separately.
Specifications
Fit and size
- Position: Right
- Quantity: 1 for the right side
Build and materials
- Type: fuel pump module assembly with float arm
- Condition: New
In the box
One fuel pump module assembly with float arm and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part.
Interchange: 164 470 03 94
4011621 · CFG2173
This part cross-references / interchanges with the following part numbers:
4011621, CFG2173, 164 470 03 94
Frequently Asked Questions
Does the Delphi FG2173 fit the 2010-2011 Mercedes-Benz ML350 V6 3.0L?
Yes. Delphi FG2173 is the right-side fuel pump module for the 2010-2011 Mercedes-Benz ML350 V6 3.0L. If your car is another model, look it up in the "Vehicles it fits" section.
Is the float arm included with the Delphi fuel module?
Yes. Delphi FG2173 comes as a fuel pump module assembly with the float arm, plus an instruction sheet.
How does this fuel pump module keep the gas gauge reading correct?
Its empty float height and float retention are set to specification, which is meant to give a correct gas gauge reading.
How do I know if the fuel pump module is going bad?
Hard starting, stalling or an inaccurate fuel gauge can be signs of a worn module. A shop can test the fuel system to confirm.
Will this Delphi module replace number 164 470 03 94?
Yes. Delphi FG2173 is listed as a replacement for 164 470 03 94, and for 4011621 and CFG2173.
