Fuel Pump Module for 2014-2020 Ram 3500 & More - Delphi FG2278

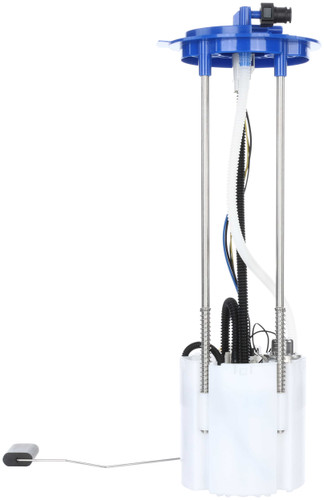

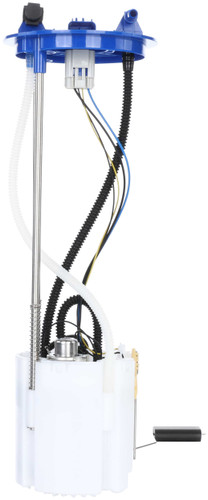

Feed your RAM's engine a steady supply of gas with the Delphi fuel pump module assembly FG2278, an in-tank electric module that installs as a direct-fit replacement for the 2014-2015 RAM 3500 (V8-5.7L) and the 2014-2020 RAM 3500, RAM 4500 and RAM 5500 (V8-6.4L). This specific-fit, premium-grade unit carries the electric pump, pressure regulator and internal strainer in one plastic housing to draw fuel from the tank and route it to the engine.

• In-tank electric pump: An electric, in-tank pump sized for gas applications delivers fuel from the tank toward the engine.
• Integrated regulator and strainer: Includes a pressure regulator and an internal strainer, with a strainer inlet and two quick-connect outlets, plus four male blade terminals through a single rectangular connector.
• OE-matched float level: Empty float height and float retention match Delphi's OE specifications for accurate fuel-gauge readings.
• Lower amperage draw: Draws less current, placing less load on the vehicle's electrical system.

Built to Delphi's OE standards and validated, tested and matched to the vehicle application. The module ships with a float arm, seal and instruction sheet, and a gasket/seal is included. Mounting hardware and the lock ring are not included — consult the vehicle service information for the correct fasteners and lock ring and whether they may be reused. Before installing, check and clean the fuel tank to avoid unnecessary returns. Country of origin: Thailand.

Interchange: 6823 1478AA · 6823 1478AB
68231478AA · 68231478AB · E7275M · EFG2278
