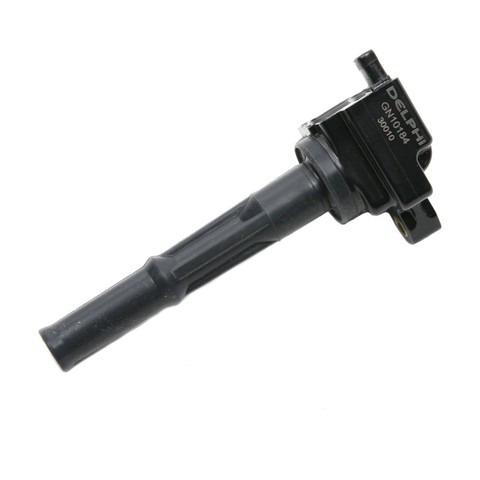

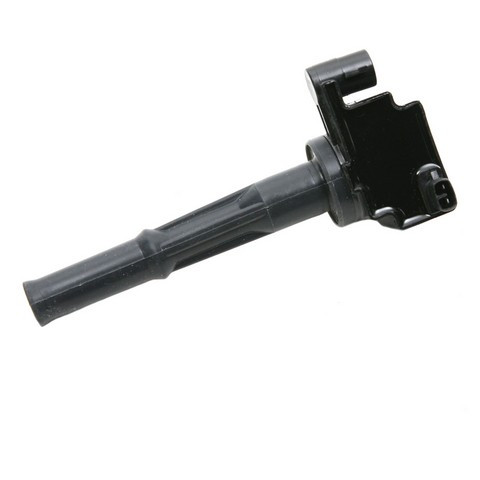

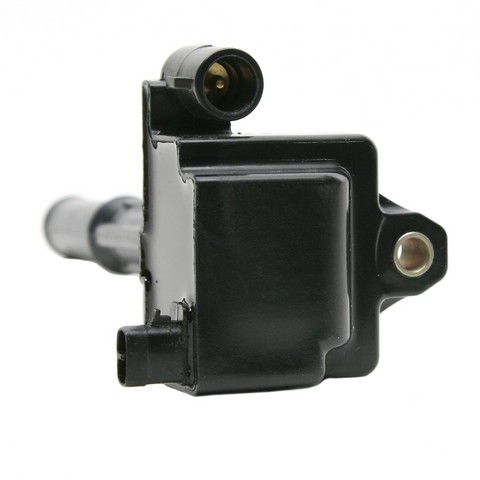

Delphi GN10184 ignition coil for the 1995-2004 Toyota Tacoma V6 3.4L and other vehicles sends power to the spark plugs for fast starts. Every Delphi ignition coil is endurance tested for consistent engine performance and engineered to OE design specifications.
- Smart winding process controls wire lengths to keep voltage the same
- High quality wire coating resists imperfections that lead to failure
- Endurance tested using high quality materials for fast starts and optimized fuel efficiency
- Coil without module, supplied with its boot
- 2 pin male sealed connector with 2 HV towers
Quick facts
- Part: Delphi GN10184 ignition coil
- Fits: 1995-2004 Toyota Tacoma V6 3.4L and other vehicles
- Condition: New
A weak coil can show up as a misfire, rough running or hard starting, though worn spark plugs or wiring faults produce those symptoms too. With the engine off, look over the boot and connector for cracks or burn marks before replacing the coil. The 3.4L V6 takes three coils, and this listing is a single coil.
Fits
GN10184 is listed for a wide range of Toyota models, with the 2000-2004 Toyota Tundra V6 3.4L and the 1996-2002 Toyota 4Runner V6 3.4L among the top. It is a direct-fit replacement for these vehicles.
Specifications
Fit and size
- Quantity per vehicle: 3 (V6 3.4L)
- Connector: 2 pin male sealed

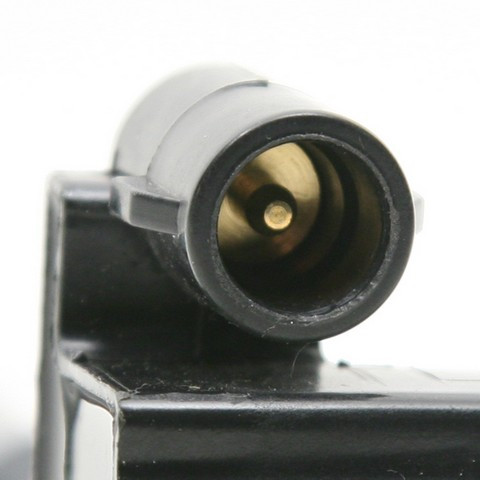

- HV towers: 2
Build and materials
- Design: coil without module

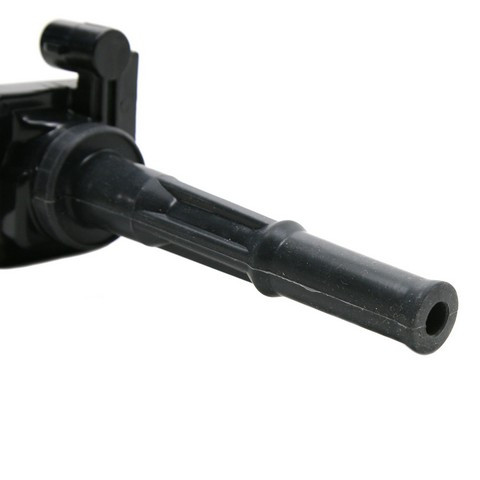

- Boot: comes with boot
- Condition: New
In the box
One ignition coil.
Interchange: 178-8274 · 52-1519 · 673-1201 · 2-50110 · 36-8014 · C-509 · UF-156 · UF-156T · 90919-02212 · 921-2009
E589 · 5C1308 · E679 · 26C1061 · C1041 · IC223 · CLS1029 · 5015 · IC223SB · U4016 · 50050 · CUF156 · 921X2009
This part cross-references / interchanges with the following part numbers:
E589, 5C1308, E679, 178-8274, 26C1061, 52-1519, 673-1201, C1041, IC223, CLS1029, 5015, 2-50110, IC223SB, U4016, 50050, 36-8014, C-509, UF-156, UF-156T, 90919-02212, CUF156, 921-2009, 921X2009
Frequently Asked Questions
Is this an ignition coil for the 1995-2004 Toyota Tacoma V6 3.4L?
Yes, Delphi GN10184 is listed for the 1995-2004 Toyota Tacoma V6 3.4L. If your Toyota is another model, look up your year, model and engine in the "Vehicles it fits" section.
Does the Delphi GN10184 coil come with a boot and a module?
The coil comes with its boot, but it is a coil without module, so no module is included. The package holds one ignition coil.
What connector does the Delphi coil pack GN10184 have?

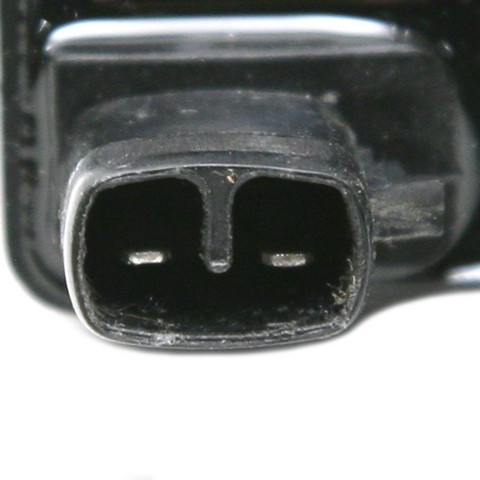

The coil has a 2 pin male sealed connector and 2 HV towers.
Are Delphi coils built to OE design specifications?
Yes, Delphi coils are engineered to OE design specifications and endurance tested using high quality materials, and they provide OE performance, durability and electromagnetic capacity level requirements.
Does Delphi GN10184 replace UF-156?
Yes, UF-156 is one of the numbers this coil replaces, and the other cross-reference numbers are on the Interchange line of this page.
