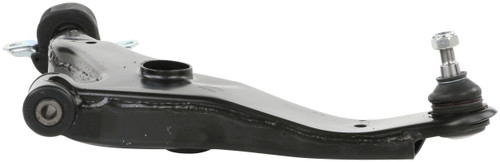

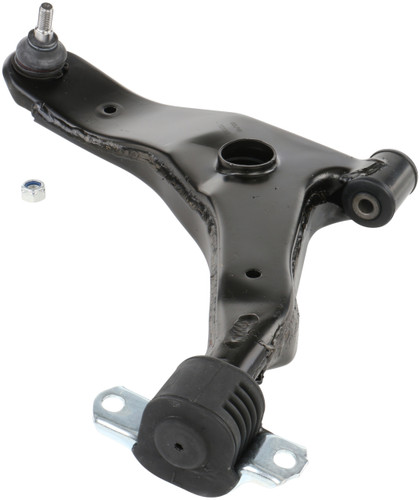

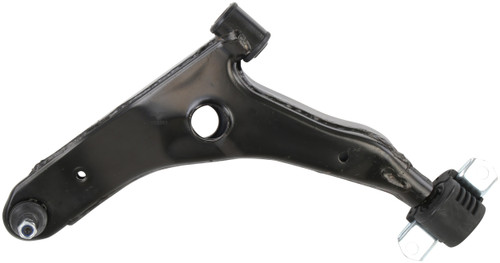

Delphi TC2093 front left lower control arm with ball joint for the 2000-2004 Volvo S40 and other vehicles connects the front left wheel to the chassis and carries the lower ball joint. Sold as a control arm and ball joint assembly, it swaps in the arm and the joint as one piece.
- Control arm withstands temperatures below -40 degrees C and over 120 degrees C and 720 hours of salt spray exposure
- 100% crack detection and ultrasonic flaw detection on every control arm
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot welding for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC2093 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2000-2004 Volvo S40 and other vehicles
- Position: Front left lower
- Condition: New
A clunk over bumps, uneven front tire wear or steering that wanders can mean a worn control arm or ball joint. Worn struts, sway bar links, tires or wheel bearings can be behind those signs too, so find the cause before buying. The front axle has one lower control arm per side; this listing is one piece, for the front left, and the right side is a separate part. Both sides are normally replaced together.
Fits
It is a direct-fit control arm for the 2000-2003 Volvo S40, the 2004 Volvo S40 L4-1.9L and the 2000-2004 Volvo V40.
Specifications
Fit and size
- Position: Front left lower
- Quantity per application: 1 per side
Build and materials
- Type: control arm with ball joint
- Construction: robot welded
- Ball studs: machined to micron tolerances
- Finish: anti-corrosion protection
- Condition: New
Interchange: 101-5064 · 102-5064
KSC6165 · CB45123 · CB45123PR · CK620595 · RK620595 · MS20316 · JTC1002 · 30887644 · 30887653
This part cross-references / interchanges with the following part numbers:
101-5064, 102-5064, KSC6165, CB45123, CB45123PR, CK620595, RK620595, MS20316, JTC1002, 30887644, 30887653
Frequently Asked Questions
Is this the lower control arm for the 2000-2004 Volvo S40?
Yes, Delphi TC2093 is the front left lower control arm with ball joint for the 2000-2004 Volvo S40, with the 2004 model listed for the L4-1.9L engine; the right side is a separate part.
Is this a control arm for the 2000-2004 Volvo V40?
Yes, this front left lower control arm fits the 2000-2004 Volvo V40; the right side is ordered separately.
How is this Delphi control arm tested for corrosion and temperature?
Delphi TC2093 withstands temperatures below -40 degrees C and over 120 degrees C and is exposed to 720 hours of salt spray. Anti-corrosion protection is applied to each part.
How are the ball studs on this control arm made?
The ball studs on this control arm are machined to micron tolerances for durability and smooth joint operation.
Does Delphi TC2093 replace CK620595?
Yes. CK620595 is one of the numbers this Delphi TC2093 front left lower control arm with ball joint replaces.
