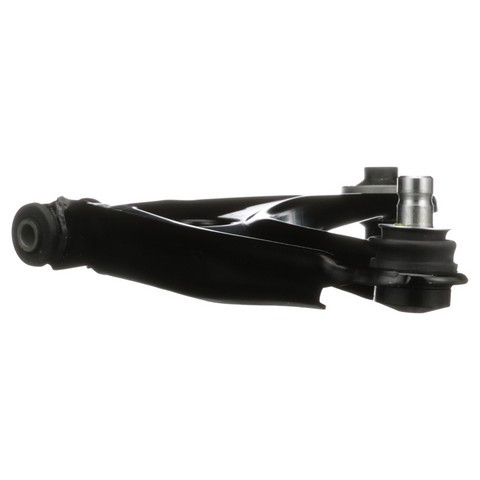

Delphi TC3326 front left lower control arm with ball joint for the 2007-2017 Jeep Compass and other vehicles links the front left wheel to the chassis. It is sold as a control arm and ball joint assembly, so the joint comes with the arm.
- Tested below -40 degrees C and above 120 degrees C, and exposed to 720 hours of salt spray
- 100% crack detection and ultrasonic flaw detection on every control arm
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot-welded for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC3326 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2007-2017 Jeep Compass and other vehicles
- Position: Front left lower
- Condition: New
A clunk over bumps, loose steering or uneven front tire wear can mean a worn arm or ball joint. Before you replace this arm, rule out a worn sway bar link, tie rod end or strut mount, since those can give similar signs.
Fits
This listing is one arm for the front left. The 2007-2017 Jeep Compass, the 2007-2017 Jeep Patriot and the 2007-2012 Dodge Caliber each take one on that side. The front right is a separate part ordered separately, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1 on this side
Build and materials
- Type: control arm with ball joint assembly
- Protection: anti-corrosion protection on each part
- Condition: New
Interchange: 623.63016 · 5105 041AA · 5105 041AB · 5105 041AC · 5105 041AH · 5105 041AI · 521-109
CB81193 · CB81193PR · CK620066 · RK620066 · CMS25188 · GS25188 · JTC2141
This part cross-references / interchanges with the following part numbers:
623.63016, 5105 041AA, 5105 041AB, 5105 041AC, 5105 041AH, 5105 041AI, 521-109, CB81193, CB81193PR, CK620066, RK620066, CMS25188, GS25188, JTC2141
Frequently Asked Questions
Is Delphi TC3326 the Jeep Compass lower control arm for 2007-2017?
Yes. Delphi TC3326 fits the 2007-2017 Jeep Compass on the front left lower side. The front right takes its own arm, ordered separately.
Is this Jeep Patriot control arm the right one for the front left of a 2007-2017 Jeep Patriot?
Yes. This arm is the front left lower position for the 2007-2017 Jeep Patriot. The listing is one arm only, so the right side is a separate order.
What testing does the Delphi control arm go through?
Delphi TC3326 is tested below -40 degrees C and above 120 degrees C and exposed to 720 hours of salt spray. Each control arm also gets 100% crack detection and ultrasonic flaw detection.
How are the ball studs on this control arm made?
The ball studs on this front left lower arm are machined to micron tolerances for durability and smooth joint operation. The arm itself is robot-welded for consistent quality.
Does Delphi TC3326 replace the 5105 041AA number?
Yes. 5105 041AA is on the list of numbers Delphi TC3326 replaces. The rest of the cross-references are on the Interchange line.
