Front Right Lower Control Arm with Ball Joint for 2011-2020 Toyota Sienna - Delphi TC5900

Be the first to review this product
$97.99
WARNING:California Proposition 65▾
MPN: TC5900
UPC: 689604322345
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Delphi Suspension Control Arm and Ball Joint Assembly P/N:TC5900
Delphi Suspension Control Arm and Ball Joint Assembly P/N:TC5900
$97.99

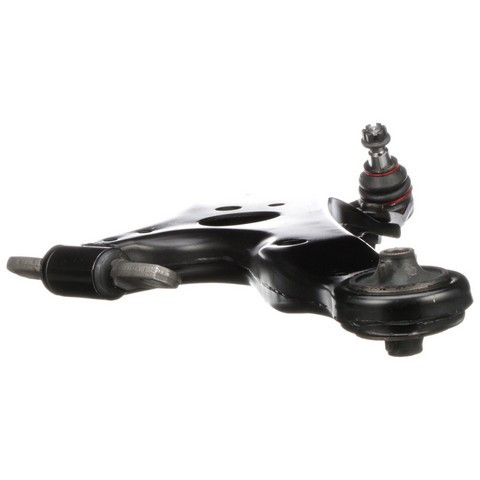

Help keep the front suspension located and the steering tracking true with this Delphi control arm, MPN TC5900 — a front right lower control arm and ball joint assembly built on Delphi's OE safety technology. It's a direct-fit replacement for the 2011-2013 Toyota Sienna, pairing the arm and its integrated ball joint in one unit so a worn joint and arm on the front passenger-side lower position can be serviced together.

  • OE-level validation: Delphi tests to the extreme — parts withstand temperatures below -40°C and over 120°C and endure 720 hours of salt spray, with dimensional and material analysis for OE-to-aftermarket compatibility.
  • 100% inspected: every control arm undergoes crack detection and ultrasonic flaw detection so materials match OE specifications.
  • Precision joint: ball studs are machined to micron tolerances for durability and smooth joint operation.
  • Robot-welded & protected: robot welding for consistent quality, plus anti-corrosion protection applied to each part for corrosion prevention and enhanced aesthetics.

If a failed ball joint or worn control arm is the cause of clunking, loose steering, or uneven front tire wear, this assembly replaces the worn original. This is a 2011-2013 Toyota Sienna lower control arm for the front right corner.

Interchange: 102-7708 · 102-7774 · 622.44096 · 522-498 · 48068-08040
1027708 · 1027774 · 62244096 · 522498 · 4806808040 · CB74454 · CB74454PR · RK622035 · CMS861131 · GS861131 · JTC2576 · JTC2577

This part cross-references / interchanges with the following part numbers:

102-7708, 102-7774, 622.44096, 522-498, CB74454, CB74454PR, RK622035, CMS861131, GS861131, JTC2576, JTC2577, 48068-08040

Frequently Asked Questions

Is this the right control arm for a 2011-2013 Toyota Sienna?

Yes. This Delphi assembly is a direct-fit front right lower control arm for the 2011-2013 Toyota Sienna. The Buyer's Guide tab lists the full fitment details.

What position on the vehicle is this control arm for?

It is the front right (passenger-side) lower control arm. It replaces the worn original arm and its integrated ball joint on that corner.

Does the ball joint come with the control arm?

Yes. The ball joint is integrated with this control arm and installs as one unit, so a worn joint and the arm are replaced together.

What are signs this control arm may need replacing?

Clunking over the front end, loose or wandering steering, and uneven front tire wear can point to a worn ball joint or bushing. Diagnose the cause before replacing.

How is this Delphi control arm built for durability?

It gets 100% crack and ultrasonic flaw detection, ball studs machined to micron tolerances, robot welding, and anti-corrosion protection, and is tested from below -40°C to over 120°C plus 720 hours of salt spray.
