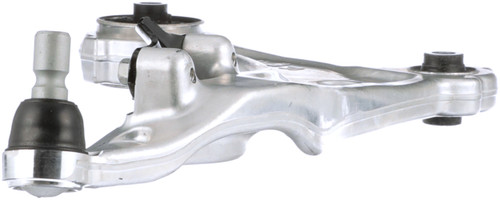

Delphi TC7422 front right lower control arm with ball joint for the 2011-2017 Nissan Quest links the front right wheel to the vehicle and lets the suspension pivot. This Delphi control arm is listed as a control arm and ball joint assembly, so the ball joint comes attached to the arm.
- Control arm tested at temperatures below -40 degrees C and over 120 degrees C, with 720 hours of salt spray exposure
- 100% crack detection and ultrasonic flaw detection on each control arm to check the materials against specification
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot-welded control arm for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC7422 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2011-2017 Nissan Quest
- Position: Front right lower
- Condition: New
A clunk over bumps, uneven front tire wear or loose steering can mean the ball joint or arm is worn. If this arm is the cause, this part replaces it. With the engine off, look at the arm for cracks or bends and at the ball joint for visible damage; a shop can check joint play on a lift.
Fits
It fits the 2011-2017 Nissan Quest, which takes one in the front right lower position. This listing is one side; the front left lower is a separate part, and the pair on that axle is normally replaced at the same time.
Specifications
Fit and size
- Position: front right lower
- Quantity per vehicle: 1
Build and materials
- Type: control arm with ball joint, robot welded
- Corrosion protection: anti-corrosion protection on each part
- Condition: New
Interchange: 102-7826 · 54500-1JA0A · 524-222
CB69294 · CB69294PR · CMS301201 · GS301201
This part cross-references / interchanges with the following part numbers:
102-7826, 54500-1JA0A, 524-222, CB69294, CB69294PR, CMS301201, GS301201
Frequently Asked Questions
Does this 2011-2017 Nissan Quest control arm fit the front right side?
Yes. Delphi TC7422 is the front right lower control arm with ball joint for the 2011-2017 Nissan Quest. The front left lower is a separate part.
Does this front right lower control arm come with the ball joint?
Yes. The ball joint is part of the assembly, so it comes attached to the arm. Its ball studs are machined to micron tolerances.
What testing does the Delphi TC7422 control arm go through?
Each control arm gets 100% crack detection and ultrasonic flaw detection. Delphi parts are tested below -40 degrees C and over 120 degrees C and exposed to 720 hours of salt spray.
Can a clunk over bumps mean the ball joint on this front lower control arm is worn?
Yes, it can, though other suspension parts can make the same noise. Uneven front tire wear and loose steering are other signs, and a shop can check the joint for play.
Is 54500-1JA0A an interchange number for this control arm?
Yes. 54500-1JA0A is listed as an interchange number for Delphi TC7422.
