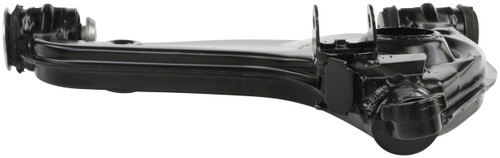

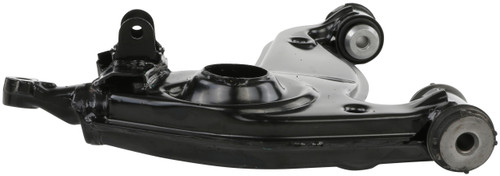

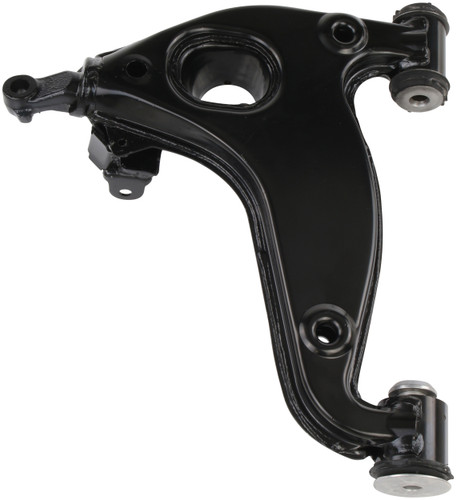

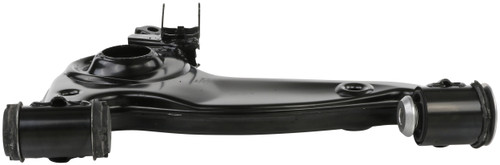

Delphi TC1149 front right lower control arm for the 1994-1999 Mercedes-Benz S320 and other vehicles links the wheel to the vehicle body and lets it move with the suspension. This Delphi control arm, also called a suspension control arm, goes on the front right lower position.
- Withstands temperatures below -40 degrees C and over 120 degrees C, and 720 hours of salt spray
- 100% crack detection and ultrasonic flaw detection on every control arm
- Robot-welded construction for consistent performance and quality
- Ball studs machined to micron tolerances for smooth joint operation
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC1149 control arm
- Also called: suspension control arm
- Fits: 1994-1999 Mercedes-Benz S320 and other vehicles
- Position: Front right lower
- Condition: New
A worn lower control arm can show up as a clunk over bumps, uneven tire wear or a pull in the steering. Before you replace this arm, rule out worn sway bar links, strut mounts and tire problems, which can give similar signs. This listing is one arm for the front right; the front left is a separate part, and both sides are normally replaced together.
Fits
As a front right lower control arm, it fits the 1994-1999 Mercedes-Benz S320, the 1994-1999 Mercedes-Benz S420 and the 1994-1999 Mercedes-Benz S500, and each takes one on this side. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Front right lower
- Quantity per vehicle: 1
- Sold individually: one arm per listing
Build and materials
- Construction: robot-welded
- Ball studs: machined to micron tolerances
- Protection: anti-corrosion protection on each part
- Condition: New
Interchange: 101-6927 · 102-6927 · 140 330 43 07 · 140 330 65 07 · 140 330 71 07 · A140 330 4307 · A140 330 6507 · A140 330 7107
BJ06124 · KSC5363 · B9919 · CK642020 · K642020 · K9919 · RK642020 · CMS101127 · MK9919 · MS101127
This part cross-references / interchanges with the following part numbers:
101-6927, 102-6927, BJ06124, KSC5363, B9919, CK642020, K642020, K9919, RK642020, 140 330 43 07, 140 330 65 07, 140 330 71 07, A140 330 4307, A140 330 6507, A140 330 7107, CMS101127, MK9919, MS101127
Frequently Asked Questions
Is this the Mercedes S500 control arm for a 1994-1999 Mercedes-Benz S500?
Yes. Delphi TC1149 is listed for the 1994-1999 Mercedes-Benz S500 as the front right lower control arm; open the "Vehicles it fits" section to check your engine.
Which wheel position does the Delphi TC1149 control arm go on?
Delphi TC1149 is the front right lower control arm. The front left lower arm is a separate part, so this listing covers one side only.
How precisely are the ball studs made on this control arm?
The ball studs are machined to micron tolerances for smooth joint operation. The arm is also robot-welded for consistent performance and quality.
What testing does the Delphi TC1149 control arm go through?
Every arm undergoes 100% crack detection and ultrasonic flaw detection. The parts withstand temperatures below -40 degrees C and over 120 degrees C, and 720 hours of salt spray.
What can a worn lower control arm cause?
A worn lower control arm can cause a clunk over bumps, uneven tire wear or a pull in the steering. If you notice these, have the suspension checked promptly.
