Front Left Brake Caliper for 2006-2008 Dodge Ram 1500 & More - Raybestos FRC11684

$163.99

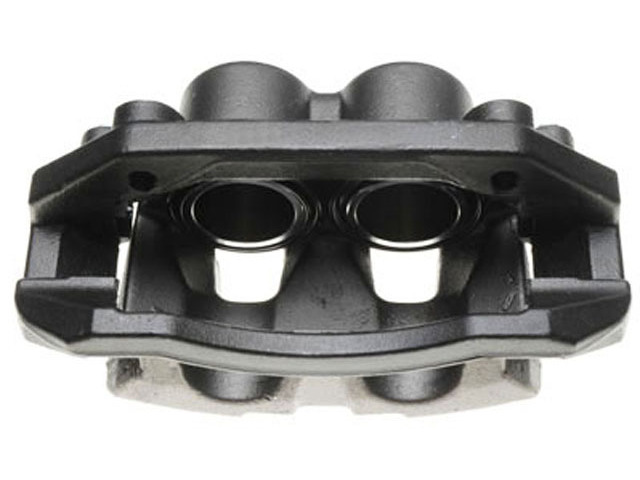

Raybestos Brakes Disc Brake Caliper FRC11684

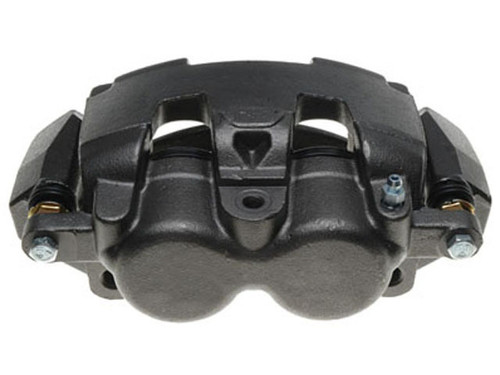

Raybestos Brakes Disc Brake Caliper FRC11684 - view 2

$163.99

Current Stock: 7

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Part number: FRC11684

UPC: 829352399903

Raybestos Brakes Disc Brake Caliper P/N:FRC11684

$163.99

Description

If the front-left brake caliper on your truck is leaking or sticking, the Raybestos R-Line remanufactured caliper and bracket assembly, part number FRC11684, is a direct-fit replacement for the 2006-2008 Dodge Ram 1500, 2005-2008 Dodge Dakota and 2006-2009 Mitsubishi Raider (all engines). This semi-loaded, non-plated unit mounts at the front left wheel. It turns hydraulic pressure from the brake pedal into clamping force on the pads and rotor.

New rubber and sealing parts: Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are all replaced with new materials, which is intended to provide leak-free operation.
Inspected core components: Castings, guide pins and brackets are carefully inspected before they are reused.
Pressure tested: Every caliper is 100% pressure tested before it ships.
EPDM70 rubber components: These are selected for heat resistance, performance and durability. Materials match OE specifications and vehicle-specific designs.

Specifications: The caliper is a floating type with a cast-iron casting and a 2.122 in (53.9 mm) piston. It has an M10x1 bleeder screw thread and 14 mm bracket mounting holes with a 2.0 mm thread pitch. The country of origin is Mexico. The listed applications use one. This listing is for the left-front caliper only. Replacing both front calipers together is recommended for even, balanced braking.

Interchange: 99-17727B · 18-B5009 · 18-P5009 · 141.67054 · 142.67054 · 14-1242
9917727B · 18B5009 · 18P5009 · 14167054 · 14267054 · 141242 · 5143358AB · 5143358AC · 5143358AD · 5143358AE · SC2025

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

99-17727B, 18-B5009, 18-P5009, 141.67054, 142.67054, 5143358AB, 5143358AC, 5143358AD, 5143358AE, SC2025, 14-1242

Buyer's Q&A

Frequently Asked Questions

Is this the right brake caliper for a 2006-2008 Dodge Ram 1500?

It is listed as the front-left caliper for the 2006-2008 Dodge Ram 1500, and it also fits the 2005-2008 Dodge Dakota. Check the "Vehicles it fits" section to confirm your exact vehicle.

What is renewed on this remanufactured disc brake caliper?

All the rubber and sealing parts are new: seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings. Castings, guide pins and brackets are inspected before reuse.

What are the key specifications of FRC11684?

It is a floating caliper with a cast-iron casting and a 2.122 in (53.9 mm) piston. It has an M10x1 bleeder screw thread and 14 mm bracket mounting holes with a 2.0 mm thread pitch.

What signs suggest a brake caliper may need replacing?

Signs include brake fluid leaking at the caliper, pulling to one side when braking, a dragging brake or uneven pad wear. Diagnose the cause first, because other brake parts can produce similar symptoms.

Should I replace both front calipers at the same time?

This left-front caliper is sold individually. Replacing both front calipers together is recommended for balanced braking, and the brake system must be bled after installation.
