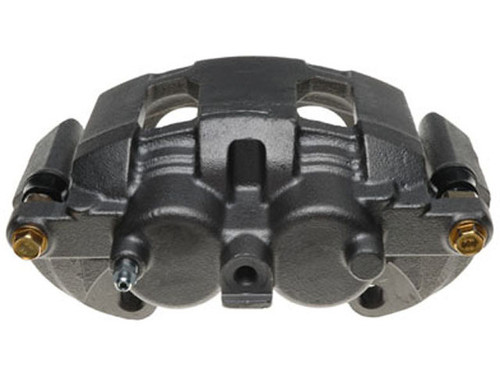

Silence brake drag and restore a firm clamp at the front-left wheel with the Raybestos R-Line Semi-Loaded Disc Brake Caliper and Bracket Assembly (FRC11791). The piston presses the pads against the rotor to slow the vehicle, and this floating unit drops in as a direct-fit replacement for the 2006-2011 Buick Lucerne (V6-3.8L 2006-2008, V6-3.9L 2009-2011), the 2006-2013 Chevrolet Impala, the 2014-2016 Chevrolet Impala Limited, and the 2006-2007 Chevrolet Monte Carlo. It is cataloged for the front-left (driver's-side) position.
Remanufactured from an OE core: castings, guide pins and brackets are carefully inspected before reuse, with new seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings installed for leak-free operation.
EPDM70 rubber components: for heat resistance, performance and durability.
Silicone boots for heavy-duty applications where applicable.
100% pressure tested; materials match OE specifications.
Specs: floating design, cast-iron casting, 1.768 in (44.9 mm) piston diameter, M10x1.5 bleeder screw thread, and 14.0 mm bracket mounting holes with a 2.0 mm thread pitch. Country of origin: Mexico. Sold individually; replacing the calipers on both sides of the axle together is good practice for balanced braking.
It's a direct-fit front-left caliper for the 2006-2011 Buick Lucerne (V6-3.8L and V6-3.9L), 2006-2013 Chevrolet Impala, 2014-2016 Chevrolet Impala Limited, and 2006-2007 Chevrolet Monte Carlo. See the Buyer's Guide tab to confirm.
Does it include the mounting bracket?
Yes. This is a semi-loaded caliper and bracket assembly, so the bracket ships with the unit. Brake pads are typically supplied separately.
Which corner is this caliper for?
It is cataloged for the front-left (driver's-side) position.
What is the piston size and caliper type?
It's a floating caliper with a 1.768 in (44.9 mm) piston diameter and an M10x1.5 bleeder screw thread.
Should I replace both front calipers together?
This listing is for one front-left caliper, sold individually. Replacing both sides of the axle together is good practice for even, balanced braking.
