Front Right Brake Caliper for 2005-2012 Ford F-350 Super Duty & More - Raybestos FRC11585

$149.99

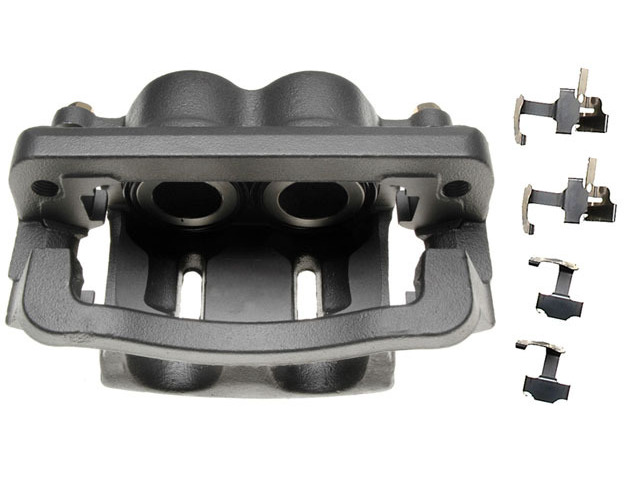

Raybestos Brakes Disc Brake Caliper FRC11585

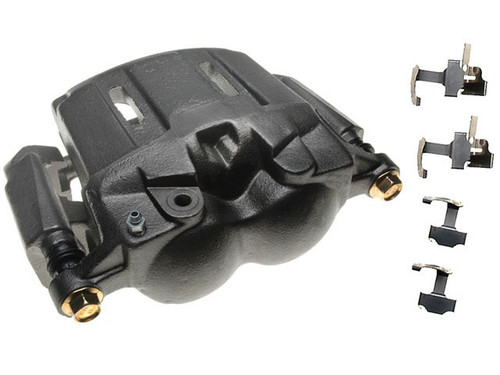

Raybestos Brakes Disc Brake Caliper FRC11585 - view 2

Part number: FRC11585

UPC: 829352355947

Condition: New

Weight: 26.00 LBS

Item Package Quantity: 1

$149.99

Current Stock: 10

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Caliper P/N:FRC11585

$149.99

Description

Raybestos Brakes FRC11585 front right brake caliper for the 2005-2012 Ford F-350 Super Duty and other vehicles presses the brake pads against the rotor to slow the wheel. This remanufactured, semi-loaded caliper and bracket assembly is also called a disc brake caliper.

Raybestos R-Line non-plated remanufactured caliper
New seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings for leak-free operation
Castings, guide pins and brackets inspected before they are reused
100% pressure tested, with each caliper tested for reliable braking performance
EPDM70 rubber components for heat resistance and durability
Silicone boots for heavy duty applications, where applicable

Quick facts

Part: Raybestos Brakes FRC11585 brake caliper
Also called: disc brake caliper
Fits: 2005-2012 Ford F-350 Super Duty and other vehicles
Position: Front right
Material: Cast iron
Condition: Remanufactured

A brake that drags, a pull to one side or fluid near the caliper can mean the caliper is worn. Before you replace it, rule out worn pads and a worn rotor, which can show similar signs. Replace the front calipers on both sides together; this listing is one caliper, and the front left is ordered separately. The front axle takes one on each side.

Fits

It fits the 2005-2012 Ford F-350 Super Duty and the 2011-2012 Ford F-450 Super Duty.

Specifications

Fit and size

Position: front right
Quantity per vehicle: 1 for this position
Caliper piston diameter: 59.9 mm (2.358 in)
Bracket mounting hole size: 16 mm, thread pitch 2 mm
Bleeder screw thread: 3/8-24

Build and materials

Type: floating, semi-loaded caliper and bracket assembly
Casting material: cast iron
Rubber components: EPDM70
Condition: remanufactured
Country of origin: Mexico

Interchange: 99-17939A · 18-5350 · 18-B4996 · 18-B5350 · 18-P4996 · 18-P5350 · 141.65079 · 14-3315
SC1392

Product information is for general reference and may contain errors. See our Disclaimer.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

99-17939A, 18-5350, 18-B4996, 18-B5350, 18-P4996, 18-P5350, 141.65079, SC1392, 14-3315

Buyer's Q&A

Frequently Asked Questions

Does this 2005-2012 Ford F-350 Super Duty brake caliper fit the front right side?

Yes. Raybestos Brakes FRC11585 is the front right caliper for the 2005-2012 Ford F-350 Super Duty. The front left side is a separate part.

Is the Raybestos Brakes FRC11585 caliper right for the 2011-2012 Ford F-450 Super Duty?

Yes. The 2011-2012 Ford F-450 Super Duty is in this caliper's fitment, and this one is the front right position.

What size is the piston in this floating caliper?

The piston diameter is 59.9 mm (2.358 in). The bracket mounting holes are 16 mm with a 2 mm thread pitch, and the bleeder screw thread is 3/8-24.

Which parts are new on this remanufactured caliper?

On Raybestos Brakes FRC11585, seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials. Castings, guide pins and brackets are inspected before reuse.

Is this Raybestos R-Line caliper pressure tested?

Yes. Each caliper is 100% pressure tested, and each one is also tested for reliable braking performance.
