Raybestos Brakes Disc Brake Caliper P/N:FRC12596

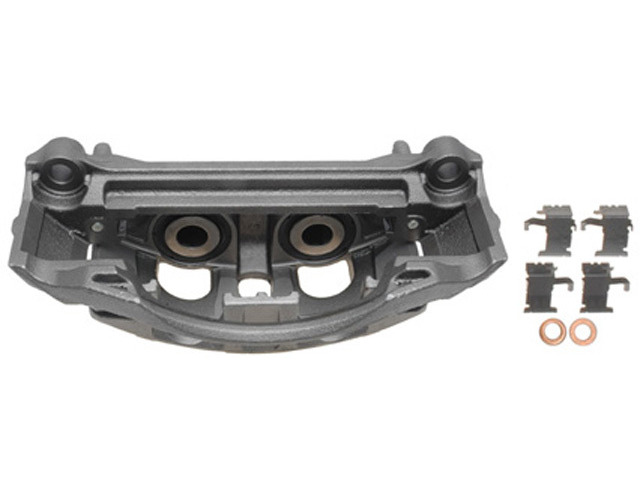

Raybestos Brakes FRC12043 rear right brake caliper for the 2008-2019 Ford E-350 Super Duty and other vehicles squeezes the pads against the rotor to slow the wheel. This remanufactured, semi-loaded caliper and bracket assembly is rebuilt with all new rubber and sealing components.
Pulling to one side, brake fluid wetness around the wheel or pads that wear unevenly can point to a sticking or leaking caliper. Seized guide pins, a worn rotor or a swollen brake hose can show up the same way, so find the cause before you buy a disc brake caliper.
It is listed for a wide range of Ford models, including the 2008-2019 Ford E-350 Super Duty, the 2008-2014 Ford E-150 and the 2008-2014 Ford E-250. If your vehicle is not named here, look it up in the "Vehicles it fits" section. The rear axle takes one caliper on each side; this listing is the rear right, the rear left is ordered separately, and both are normally replaced together.
Fit and size
Build and materials
Interchange: 15-13363 · 99-17953A · 18-B5074 · 18-P5074 · 141.65533 · 142.65533 · 10-3363S · 14-3363
SC3028 · SC3058 · 8C2Z2552A · BC2Z2552A
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is the Raybestos Brakes FRC12043 the right Ford E-250 brake caliper for a 2008-2014 E-250?
Yes. Raybestos Brakes FRC12043 is the rear right caliper for the 2008-2014 Ford E-250. The rear left side is a separate part.
What size is the piston on this rear right caliper?
The piston measures 47.5 mm (1.87 in) across, and the bleeder screw thread is M10x1.
Which parts are new in this remanufactured caliper?
On the Raybestos Brakes FRC12043, the seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are new. The castings, guide pins and brackets are inspected before they are reused.
Does this caliper come with its bracket?
Yes. It is a caliper and bracket assembly in the semi-loaded configuration, and the caliper is a floating type.
Does Raybestos Brakes FRC12043 cross to number 18-B5074?
Yes. 18-B5074 is one of the numbers Raybestos Brakes FRC12043 replaces.
