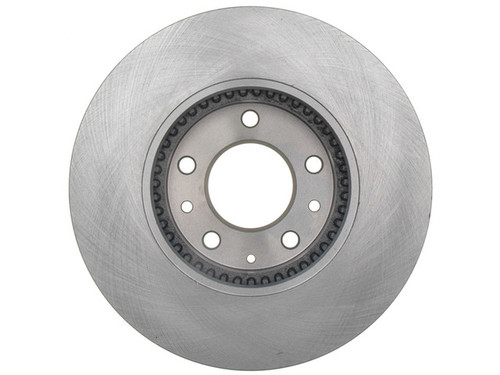

Help keep everyday stops smooth and dependable with the Raybestos R-Line Brake Rotor, part number 680404R, a vented front rotor engineered for everyday driving conditions. It fits many vehicles, among them the 2006-2012 Ford Fusion, 2006-2013 Mazda 6 and 2007-2012 Lincoln MKZ. See the Buyer's Guide tab for the full list.
Raybestos R-Line rotors and drums offer broad coverage and are built for dependability, safety and performance in daily driving.
- OE fit, form and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE standard: Meets the SAE standard for tensile strength, supporting the rotor's structural integrity.
- Low initial lateral runout and thickness variation: Small runout and thickness variation are designed to help reduce pedal pulsation and brake noise and to support longer pad life.
- Mill balanced edges: Mill balanced and 100 percent validated to help minimize thickness variation, for less vibration and smoother stopping.
This conventional-style, vented cast iron rotor has a non-directional braking surface. It measures 11.77 in (298.95 mm) in outside diameter and 1.908 in (48.45 mm) in overall height. Nominal thickness is 0.979 in (24.85 mm) and discard thickness is 0.906 in (23 mm). It has 5 lug holes of 0.511 in (13 mm) on a 4.5 in (114.3 mm) bolt circle and a 2.839 in (72.1 mm) center hole. An ABS tone ring is not included. Country of origin: China.
Each rotor is sold individually, and this listing is for one. The listed applications use two, so replacing both front rotors together as a matched pair is recommended for even, balanced braking.
