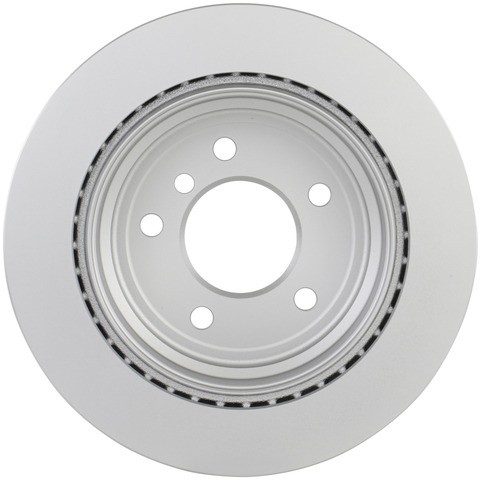

Bosch 15010127 rear brake rotor for the 2012-2015 BMW X1 and other vehicles spins with the rear wheel and gives the brake pads a flat face to clamp. The drum-in-hat center doubles as the drum for the parking brake.
- Bosch QuietCast brake rotor line, made with 3D laser measuring and repeated inspection
- 100% precision balanced for smooth operation and less vibration
- Tight tolerances with low run-out and DTV specifications for a smooth pedal feel without pulsation
- Heat flowed castings promote consistent wear for quiet operation and long life
- Vane configuration built for proper heat dissipation from the braking system
- Premium Full Coating covers the rotor, vanes included where applicable, to protect against corrosion
Quick facts
- Part: Bosch 15010127 brake rotor
- Also called: disc brake rotor
- Fits: 2012-2015 BMW X1 and other vehicles
- Position: Rear
- Material: Iron alloy
A worn rear rotor can show up as a pulsing brake pedal, a grinding noise, or deep grooves with a raised lip at the outer edge. Worn pads or caliper trouble can bring on a pulse or grind as well, so during a brake service, measure the old rotor's thickness and look for cracks before replacing it. The engraved edge code on this rotor gives its identification and discard spec. Both rear rotors are normally replaced together, and this listing is one.
Fits
Cars this rotor fits include the 2012-2015 BMW X1, the 2007-2013 BMW 328i and the 2009-2013 BMW 328i xDrive. If your BMW isn't one of these, look it up by year and engine under the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Outside diameter: 300 mm
- Center bore diameter: 75 mm
- Bolt circle: 120 mm, 5 lug holes
- Nominal thickness: 20 mm
- Minimum (discard) thickness: 18.4 mm
Build and materials
- Construction: Vented, directional
- Design: Drum-in-hat
- Surface: Smooth
- Material: Iron alloy
- Coating: Geomet full coating
- Balancing: 100% precision balanced
- ABS sensor ring: for trouble-free ABS and traction control operation on equipped vehicles
In the box
One rear brake rotor, without a hub assembly; the cars it fits take two at the rear.
Interchange: 34216864901
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this the right brake rotor for a 2007-2013 BMW 328i?
Yes. The Bosch 15010127 rear brake rotor fits the 2007-2013 BMW 328i, and the car takes two at the rear.
What size is the Bosch 15010127 rear rotor?
The Bosch 15010127 has a 300 mm outside diameter, a 20 mm nominal thickness, a 75 mm center bore and a 120 mm bolt circle with 5 lug holes.
How thin can this rear rotor wear before it needs replacing?
This rear rotor's minimum (discard) thickness is 18.4 mm, and the engraved edge code on the rotor carries that discard spec.
What coating does the Bosch QuietCast Premium disc brake rotor have?
This rear rotor has a Geomet full coating that covers the vanes where applicable, to help protect it against corrosion.
Do Bosch QuietCast rotors come with the hub attached?
No. This listing is one rear brake rotor without a hub assembly; the hub is a separate part.
