Front Brake Rotor for 2011-2017 Audi Q5 & More - HELLA 355123122

$129.99

Vehicles this part fits

    Part number: 355123122
    EAN: 4082300574630
    Condition: New
    Weight: 23.61 LBS
    Item Package Quantity: 1
    $129.99
    Adding to cart… The item has been added

    Have questions?

    DISC BRAKE ROTOR
    DISC BRAKE ROTOR
    $129.99
    $129.99

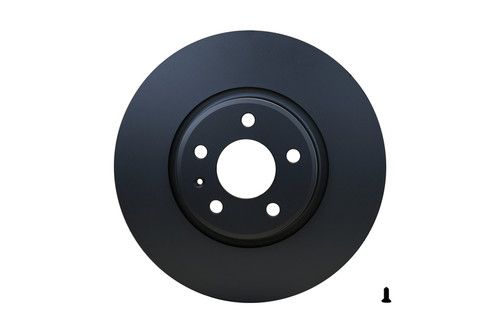

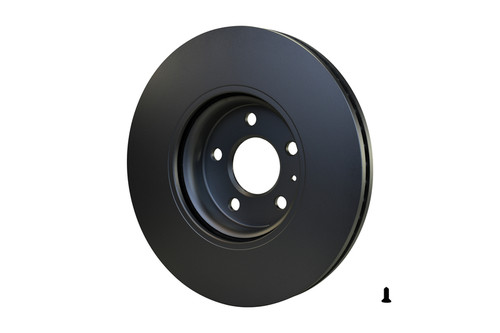

    HELLA BRAKES 355123122 front brake rotor for the 2011-2012 Audi Q5 V6 3.2L, the 2011-2017 Q5 4-cylinder 2.0L and other vehicles gives the brake pads a smooth surface to clamp, which slows the front wheel.

    • Gray cast iron disc with high carbon content for improved heat dissipation
    • Full zinc coating for rust protection
    • High carbon content and soft casting material absorb sound and resist deformation
    • Internally vented, full-cast disc with a smooth, non-directional surface
    • Mill balanced and ECE R90 ready

    Quick facts

    • Part: HELLA BRAKES 355123122 brake rotor
    • Also called: disc brake rotor
    • Fits: the 2011-2012 Audi Q5 V6 3.2L, the 2011-2017 Q5 4-cylinder 2.0L and other vehicles
    • Position: Front
    • Material: gray cast iron
    • Condition: New

    Vibration through the pedal, deep grooves, or a disc worn down to its discard thickness can mean the rotor is worn, though worn pads or a sticking caliper can produce similar symptoms, so find the cause before you replace it.

    Fits

    Among the many Audi models that take these brake rotors are the 2012-2017 Audi A5 Quattro and the 2012-2016 Audi A4. This listing is one rotor, and the other side of the front axle is normally replaced at the same time. If your Audi is not named here, enter it in the "Vehicles it fits" section to see whether it takes this rotor.

    Specifications

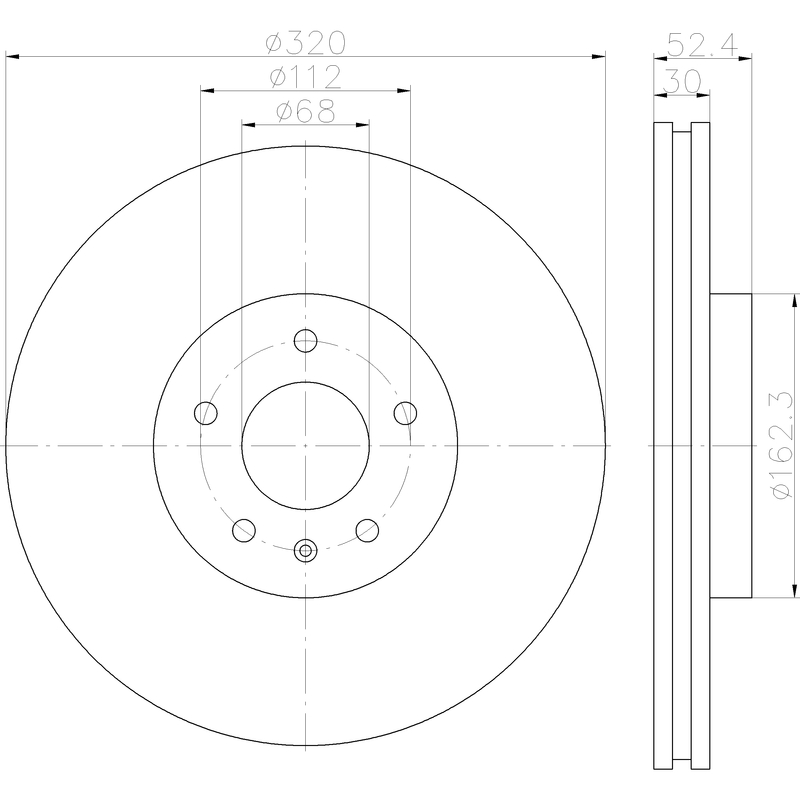

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Outside diameter: 320 mm (12.60 in)
    • Centering diameter: 68 mm (2.68 in)
    • Center hole diameter: 100 mm
    • Inner diameter: 149.4 mm
    • Wheel bolt bore diameter: 15.3 mm
    • Bolt circle: 112 mm (4.41 in), 5 lug holes
    • Nominal thickness: 30 mm (1.18 in)
    • Discard thickness: 28 mm (1.10 in)
    • Overall height: 52.1 mm

    Build and materials

    • Type: internally vented, full cast
    • Material: gray cast iron
    • Finish: coated disc and hat
    • Surface: smooth, non-directional
    • Balancing: mill balancing
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    In the box

    This listing holds one front brake rotor; the vehicles take two on the front axle. The wheel hub, wheel studs, wheel bearing and ABS tone ring are not included.

    Installation notes

    • Fixing screws come with the rotor.
    • The surface is non-oiled, so no degreasing is needed.

    Frequently Asked Questions

    Is this a brake rotor for the 2012-2016 Audi A4?

    Yes, HELLA BRAKES 355123122 is a front rotor listed for the 2012-2016 Audi A4; for another Audi, look it up in the "Vehicles it fits" section.

    Are wheel studs or a hub included with this HELLA rotor?

    No. This front rotor comes with fixing screws, but the wheel hub, wheel studs, wheel bearing and ABS tone ring are not included.

    Is this disc brake rotor vented or solid?

    HELLA BRAKES 355123122 is internally vented and full cast in gray cast iron. It measures 320 mm across and 30 mm thick when new.

    At what thickness does this front rotor need replacing?

    The discard thickness is 28 mm, against 30 mm new. A disc that measures 28 mm or less is due for replacement.

    Does this rotor need degreasing before it goes on?

    No, the surface is non-oiled, so degreasing is not needed; the rotor also has a full zinc coating for rust protection.
