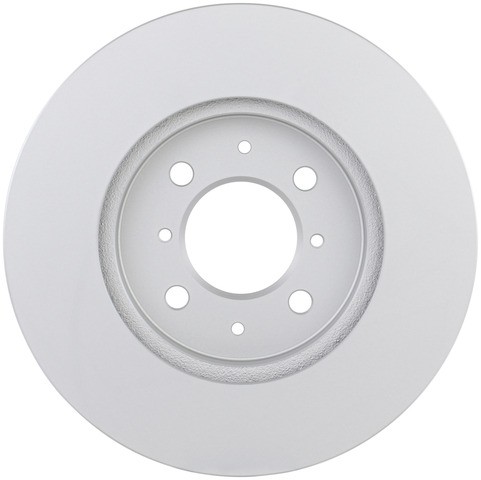

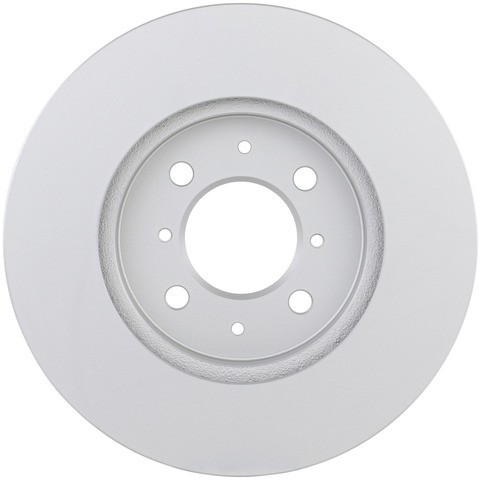

Bosch 26010730 front brake rotor for the 1990-2000 Honda Civic 4-cylinder 1.6L, the 1994-1995 Civic 4-cylinder 1.5L, the 2001-2005 Civic 4-cylinder 1.7L, the 2002-2003 Civic 4-cylinder 2.0L, the 2003-2005 Civic 4-cylinder 1.3L and other vehicles provides the disc surface the brake pads clamp to slow the wheel. This Bosch brake rotor is a vented disc made of iron alloy.
- Precision balanced for smooth operation and minimal vibration
- Tight tolerances with low run-out and DTV specifications for a smooth pedal feel without pulsation
- Heat flowed castings for consistent wear, quiet operation and long life
- Vane configuration for heat dissipation from the braking system
- Full coating, including the vanes where applicable, to protect against corrosion
- Engraved edge code carries identification and the discard specification
Quick facts
- Part: Bosch 26010730 brake rotor
- Also called: disc brake rotor
- Fits: the 1990-2000 Honda Civic 4-cylinder 1.6L, the 1994-1995 Civic 4-cylinder 1.5L, the 2001-2005 Civic 4-cylinder 1.7L, the 2002-2003 Civic 4-cylinder 2.0L, the 2003-2005 Civic 4-cylinder 1.3L and other vehicles
- Position: Front
- Material: Iron Alloy
- Condition: New
A sticking caliper or worn pads can cause a pulsing pedal or vibration under braking just as a worn rotor can, so find the cause before you buy. Deep grooves or cracks in the disc face can be signs the rotor itself is worn.
Fits
Listed for a wide range of Honda and Acura models, this rotor is a direct-fit replacement for the 2007-2013 Honda Fit and the 2010-2014 Honda Insight as well as the Civics named above. If your car is not one of these, run it through the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Outside diameter: 261.5 mm
- Center bore diameter: 64.15 mm
- Nominal thickness: 21 mm
- Bolt circle: 100 mm, 4 lug holes
Build and materials
- Construction: Vented
- Material: Iron Alloy
- Coating: Geomet
- ABS sensor ring: for trouble-free ABS and traction control operation
- Hub assembly: none, rotor only
- Condition: New
In the box
One front brake rotor without a hub assembly. This listing is a single rotor and the vehicle takes two, so order two and fit them together.
Interchange: 45251S5DA10 · 45251SB2990
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Will these Honda Civic rotors fit a 2001-2005 Honda Civic 4-cylinder 1.7L?
Yes. Bosch 26010730 is a front rotor listed for the 2001-2005 Honda Civic 4-cylinder 1.7L. For other years, engines or models, use the "Vehicles it fits" section.
Are Bosch QuietCast rotors coated against rust?
Yes. This Bosch 26010730 rotor has a Geomet coating, a full coating that includes the vanes where applicable, to protect against corrosion.
Does the Bosch QuietCast brake rotor come with a hub?
No. The 26010730 is a rotor without a hub assembly. This listing is one front rotor, and the vehicle takes two.
How thick is the Bosch QuietCast premium disc brake rotor?
The Bosch 26010730 is a vented rotor with a nominal thickness of 21 mm and a 64.15 mm center bore.
Where is the discard specification on this Bosch front brake rotor?
It is carried by the engraved edge code on the rotor, which also identifies it. With the engine off and the rotor cool, compare a thickness measurement against that specification.
