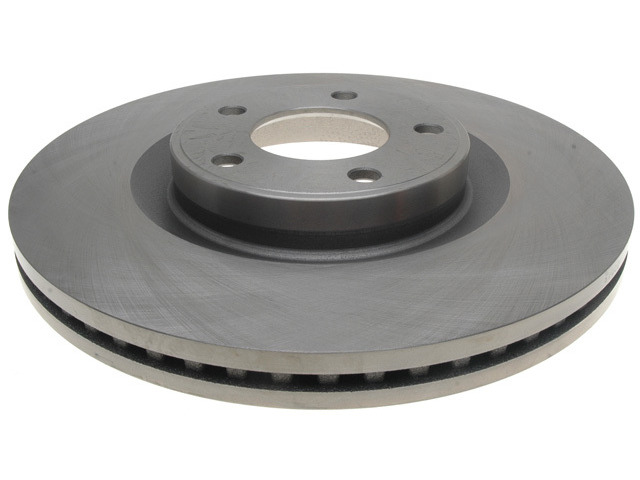

Keep front-axle braking smooth and quiet with the Raybestos R-Line Disc Brake Rotor 680544R. It installs as a direct-fit front rotor for the 2007-2015 Ford Edge [All] and 2007-2015 Lincoln MKX [All], and Raybestos states it is developed from OE samples for OE fit, form, and function. This is a vented, non-directional cast iron rotor measuring 320 mm (12.598 in) outside diameter with 5 lug holes.
A vented, non-directional design; discard thickness 26 mm (1.024 in), nominal thickness 28 mm (1.102 in). ABS tone ring is not included. Sold individually; order 2 for a complete front-axle replacement, and replace both sides together as a matched set for even, balanced braking. Country of origin: China.
Interchange: Manufacturer part number 680544R.
Will this rotor fit my vehicle?
It is a direct-fit front rotor for the 2007-2015 Ford Edge [All] and 2007-2015 Lincoln MKX [All]. Check the Buyer's Guide tab to confirm your exact application.
Is this a vented or solid rotor?
It is a vented, non-directional cast iron rotor with a 320 mm (12.598 in) outside diameter and 5 lug holes.
How many rotors do I need?
The listed applications use 2 rotors on the front axle. This listing is sold individually, so order 2 and replace both sides together as a matched set for balanced braking.
Does it include an ABS tone ring?
No. Per the catalog, an ABS tone ring is not included with this rotor.
What are the thickness specifications?
Nominal thickness is 28 mm (1.102 in) and the discard thickness is 26 mm (1.024 in). Measure and compare to your service information before reuse.
