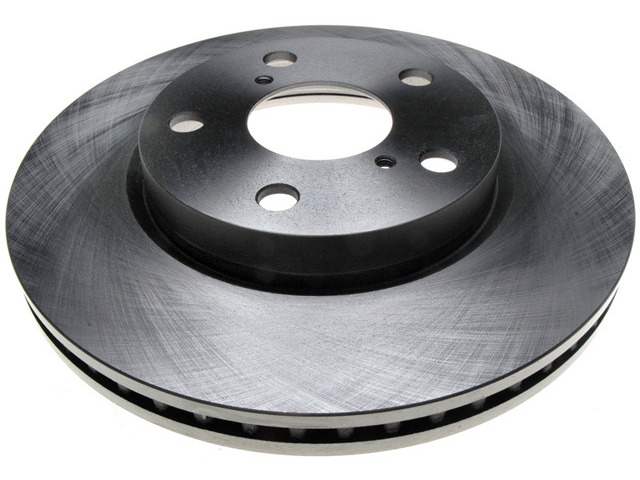

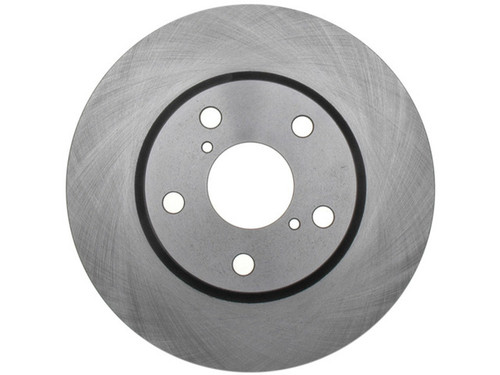

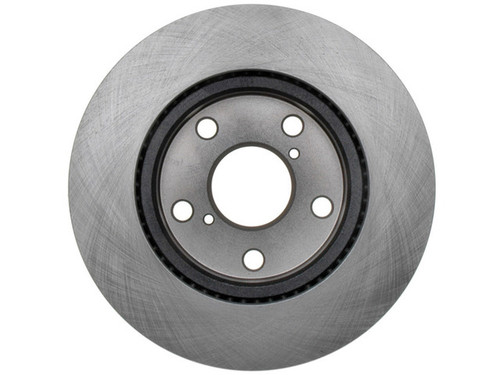

Bring smooth, quiet stops back to the front axle with the Raybestos R-Line Disc Brake Rotor (MPN 980477R). This front, vented cast-iron rotor is a direct-fit replacement offering OE fit, form, and function for the 2006-2018 Toyota RAV4, 2008-2015 Scion xB, 2010-2012 Lexus HS250h, and 2012-2018 Toyota Prius V (all engines).
Key specs: 275 mm (10.827 in) outside diameter, 25 mm nominal thickness, 22 mm discard thickness, 62 mm center hole, 5 stud/lug holes on a 114.3 mm bolt circle, non-directional surface. An ABS tone ring is not included. Country of origin: China. Sold individually; the Quantity Per Application is 2, so most listed applications use two — order two and replace both sides together as a matched set for even, balanced braking.
Manufacturer part number 980477R.
Which vehicles does this rotor fit?
It is a direct-fit replacement for the 2006-2018 Toyota RAV4, 2008-2015 Scion xB, 2010-2012 Lexus HS250h, and 2012-2018 Toyota Prius V (all engines). See the Buyer's Guide tab to confirm your vehicle.
Is this a front or rear rotor?
This is a front disc brake rotor for the listed applications.
Is the rotor vented or solid?
It is a vented, conventional cast-iron rotor with a non-directional brake surface.
Does it include an ABS tone ring?
No. An ABS tone ring is not included with this rotor.
How many should I buy?
It is sold individually. The Quantity Per Application is 2, so most listed applications use two; ordering both and replacing them together as a matched set supports even, balanced braking.
