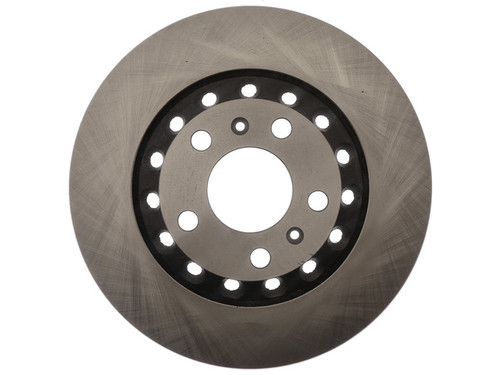

Keep the rear brakes running true and pedal feel steady with the Raybestos R-Line Disc Brake Rotor 980517R, a rear vented disc brake rotor that installs as a direct-fit replacement for the 2005-2010 Audi A8 Quattro [All] and 2004-2006 Volkswagen Phaeton [All].
- OE fit, form and function: developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE tensile strength: meets the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low lateral runout & thickness variation: a small lateral runout and thickness variation help reduce pedal pulsation and brake noise while supporting extended pad life.
- Mill balanced edges: mill balanced and 100% validated to minimize thickness variation, reducing vibration for smoother stops.
This is a conventional vented rotor with internal cooling vanes. It measures 12.198 in (309.85 mm) outside diameter, with 5 lug holes on a 112 mm (4.409 in) bolt circle and a 68 mm (2.677 in) center bore. Nominal thickness is 21.9 mm (0.863 in), with a discard thickness of 20 mm (0.787 in). An ABS tone ring is not included. Sold individually; each listed application uses two, so order 2 and replace both rear rotors as a matched pair for even, balanced braking. Country of origin: China.
Interchange: 4E0615601K · 34288 · 34288DG · 14010047 · 980517 · 980517RGS · 120.33102 · 12033102 · 121.33102 · 12133102 · 125.33102 · 12533102 · BR34329 · BR901212 · 34329 · R33109 · BD180098
Manufacturer part number 980517R
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Will this rotor fit my vehicle?
It's a direct-fit rear rotor for the 2005-2010 Audi A8 Quattro [All] and 2004-2006 Volkswagen Phaeton [All]. Check the Buyer's Guide tab to confirm your exact vehicle.
Is this a front or rear rotor?
This is a rear disc brake rotor.
How many rotors do I need?
It's sold individually. Each listed application uses two, so order 2 and replace both rear rotors together as a matched pair for even, balanced braking.
Is this rotor solid or vented?
It's a conventional vented rotor with internal cooling vanes. Outside diameter is 12.198 in (309.85 mm), with 5 lug holes on a 112 mm bolt circle and a 68 mm center bore.
Does it include an ABS tone ring?
No, an ABS tone ring is not included; transfer or replace it per the vehicle service procedure. Nominal thickness is 21.9 mm and the discard thickness is 20 mm (0.787 in).
