Raybestos Brakes Disc Brake Rotor P/N:780257R

Be the first to review this product
$92.99
MPN: 780257R
UPC: 829352624777
Item Package Quantity: 1

Have questions?

Ask an Expert
Raybestos Brakes Disc Brake Rotor P/N:780257R
Raybestos Brakes Disc Brake Rotor P/N:780257R
$92.99

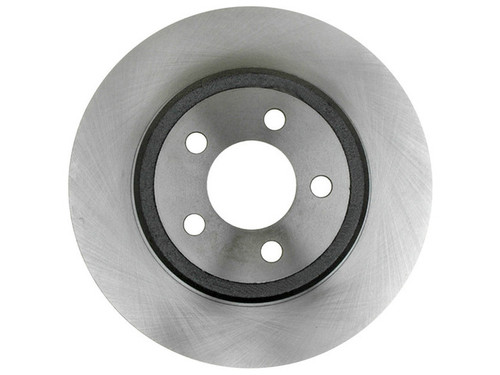

Bring smooth, quiet rear braking back to your full-size Mopar with the Raybestos R-Line Disc Brake Rotor 780257R. This vented, drum-in-hat rear rotor is a direct-fit replacement for the 2005-2014 Chrysler 300, 2009-2014 Dodge Challenger, 2006-2014 Dodge Charger, and 2005-2008 Dodge Magnum (All engines), and its integral hat accepts the parking-brake shoes.

  • OE fit, form & function: Developed from OE samples and made from G3000-qualified cast iron for dependable braking.
  • SAE tensile strength: Meets the SAE standard for tensile strength, providing structural integrity and a maximum service life.
  • Low runout & thickness variation: Held to a small lateral runout and thickness variation for less pedal pulsation, less brake noise, and extended pad life.
  • Mill-balanced & validated: Mill-balanced edges, 100% validated, minimize thickness variation for reduced vibration and smoother stopping.

Measures 12.6 in (320.05 mm) outside diameter with a 2.86 in (72.65 mm) center hole and 5 mounting holes, over a non-directional braking surface. Nominal thickness is 0.866 in (22 mm) with a machine-to discard limit of 0.807 in (20.5 mm). The ABS tone ring is not included. Sold individually; replace both rear rotors as a matched pair for even, balanced braking. Country of origin: China.

Interchange: Manufacturer part number 780257R.

Frequently Asked Questions

Which vehicles does this rotor fit?

It is a direct-fit replacement for the 2005-2014 Chrysler 300, 2009-2014 Dodge Challenger, 2006-2014 Dodge Charger, and 2005-2008 Dodge Magnum (All engines). See the Buyer's Guide tab to confirm your vehicle.

Is this a front or rear rotor?

The catalog lists this as a rear rotor. It is a drum-in-hat design, so the hat also serves as the drum for the parking-brake shoes.

Does it include an ABS tone ring?

No. The ABS tone ring is not included, so transfer or replace it as directed by the service procedure if your application uses one.

Is this rotor sold as a pair?

It is sold individually, so this listing is for one rotor. Replacing both rear rotors together as a matched pair is recommended for even, balanced braking.

What are the rotor's key dimensions?

It has a 12.6 in (320.05 mm) outside diameter, a 2.86 in (72.65 mm) center hole, and 5 mounting holes. Nominal thickness is 0.866 in (22 mm) with a 0.807 in (20.5 mm) discard thickness.
