Front Disc Brake Rotor and Hub Assembly for 2004-2008 Ford F-150 & More - Raybestos Brakes 680178R

$270.99

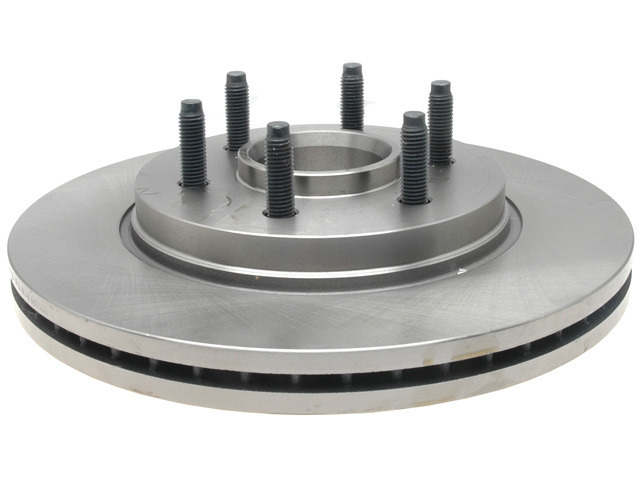

Raybestos Brakes Disc Brake Rotor and Hub Assembly 680178R

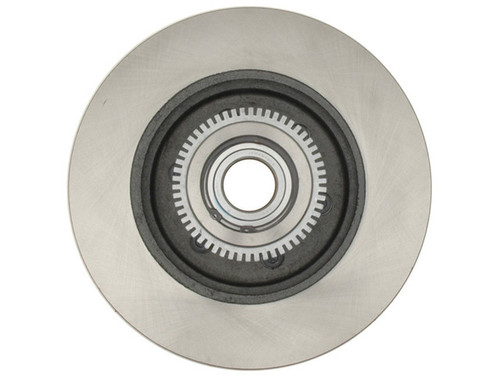

Raybestos Brakes Disc Brake Rotor and Hub Assembly 680178R - view 2

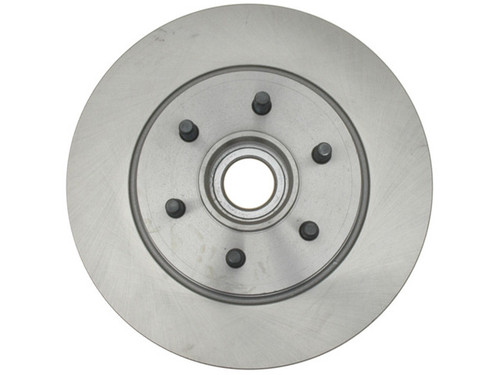

Raybestos Brakes Disc Brake Rotor and Hub Assembly 680178R - view 3

Part number: 680178R

UPC: 829352629703

Condition: New

Weight: 9.23 LBS

Item Package Quantity: 1

$270.99

Current Stock: 13

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Rotor and Hub Assembly P/N:680178R

$270.99

Description

Raybestos Brakes 680178R front disc brake rotor and hub assembly for the 2004-2008 Ford F-150 and other vehicles gives the brake pads a surface to grip. The hub carries the wheel.

Raybestos R-Line series, created for everyday driving conditions
ABS tone ring included
Non-directional brake surface
Six lug holes on a 134.85 mm bolt circle

Quick facts

Part: Raybestos Brakes 680178R disc brake rotor and hub assembly
Fits: 2004-2008 Ford F-150 and other vehicles
Position: Front
Condition: New

Pedal pulsation, a grinding noise or vibration while braking can mean this rotor and hub assembly is worn, though worn brake pads or a sticking caliper can also be behind those signs. Find out whether the pads or the caliper are involved before replacing the assembly.

Fits

The vehicles it fits include the 2004-2008 Ford F-150, the 2004-2008 Ford Lobo and the 2006-2008 Lincoln Mark LT. Open the "Vehicles it fits" section to check your exact model and engine. This listing is one assembly for the front axle; the vehicle takes one on each side, and the other side of that axle is normally done at the same time.

Specifications

Fit and size

Position: Front
Quantity per vehicle: 2
Lug holes: 6
Bolt circle: 134.85 mm (5.31 in), 6 holes
Mounting bolt hole diameter: 15.25 mm (0.6 in)
Overall height: 92.2 mm (3.63 in)
Nominal thickness: 29.95 mm (1.18 in)
Discard thickness: 28.45 mm (1.12 in)

Build and materials

Brake surface: non-directional
ABS tone ring: included
Condition: New
Country of origin: China

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Will Raybestos Brakes 680178R work as 2004-2008 Ford F-150 brake rotors on the front axle?

Yes. Raybestos Brakes 680178R is a front disc brake rotor and hub assembly for the 2004-2008 Ford F-150. For other models, open the "Vehicles it fits" section to check your exact model and engine.

Does the Raybestos Brakes 680178R come with an ABS tone ring?

Yes. The 680178R rotor and hub assembly includes the ABS tone ring.

How many lug holes and what bolt circle does this rotor and hub assembly have?

Raybestos Brakes 680178R has six lug holes on a 134.85 mm (5.31 in) bolt circle. Its six mounting bolt holes are 15.25 mm (0.6 in) in diameter.

What is the minimum thickness for this front rotor and hub assembly?

The discard thickness is 28.45 mm (1.12 in), against a nominal thickness of 29.95 mm (1.18 in). An assembly measured at or below the discard thickness should be replaced.

Is this rotor and hub assembly directional?

No. The brake surface is non-directional, so it has no rotation direction to match.
