Front Brake Rotor for 2008-2012 Jeep Liberty & More - Raybestos 780540R

$47.99

Vehicles this part fits

    Part number: 780540R
    UPC: 829352604441
    Condition: New
    Weight: 18.50 LBS
    Item Package Quantity: 1
    $47.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Rotor P/N:780540R
    Raybestos Brakes Disc Brake Rotor P/N:780540R
    $47.99
    $47.99

    Keep front braking smooth and quiet with the Raybestos R-Line Disc Brake Rotor 780540R, a front direct-fit replacement developed for the 2007-2011 Dodge Nitro [All] and 2008-2012 Jeep Liberty [All]. Engineered for everyday driving, R-Line rotors offer wide coverage with a focus on dependable, quiet stops.

    • OE fit, form & function: developed from OE samples and made with G3000-qualified cast iron for dependable braking.
    • SAE tensile-strength standard: meets the SAE standard for structural integrity and a maximum service life.
    • Low lateral runout & thickness variation: held to a small parameter for less pedal pulsation, less brake noise, and extended pad life.
    • Mill-balanced edges: 100% validated to minimize thickness variation, reduce vibration, and deliver smoother stopping.

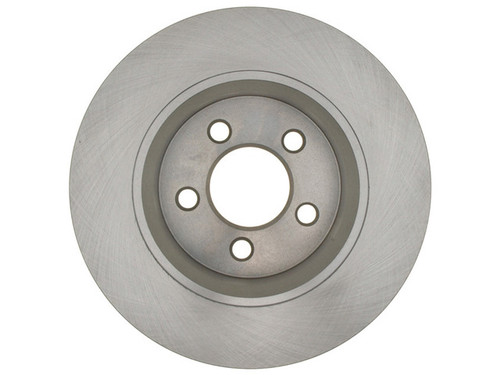

    This is a conventional, vented cast iron rotor with a non-directional braking surface. Outside diameter measures 11.896 in (302.15 mm), with 5 lug/mounting holes on a 4.5 in (114.3 mm) bolt circle, a 2.839 in (72.1 mm) center hole, 1.102 in (28 mm) nominal thickness, and a 1.039 in (26.4 mm) discard thickness. An ABS tone ring is not included. Sold individually; front rotors install as a pair, so order two and replace both sides together as a matched set for even, balanced braking. Country of origin: China.

    Manufacturer part number 780540R.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Will this rotor fit my vehicle?

    It's a front direct-fit replacement for the 2007-2011 Dodge Nitro [All] and 2008-2012 Jeep Liberty [All]. Check the "Vehicles it fits" section to confirm your exact vehicle before ordering.

    Is this a solid or vented rotor?

    It's a conventional, vented cast iron rotor with a non-directional braking surface.

    How many rotors do I need?

    Front rotors install as a pair. This listing is for one rotor, so order two and replace both sides together as a matched set for even, balanced braking.

    Does it include an ABS tone ring?

    No. An ABS tone ring is not included; transfer or replace it as directed by the vehicle's service procedure.

    What are the key dimensions?

    Outside diameter 11.896 in (302.15 mm), 5 mounting/lug holes on a 4.5 in (114.3 mm) bolt circle, nominal thickness 1.102 in (28 mm), and discard thickness 1.039 in (26.4 mm).
