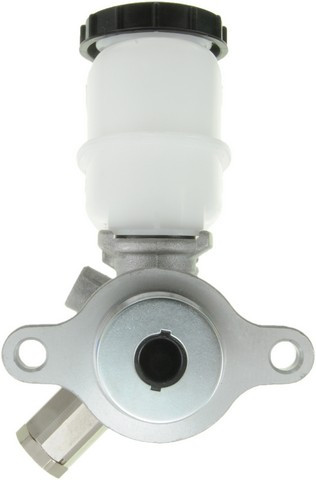

Dorman M390317 brake master cylinder for the 1995-1999 Nissan Sentra and other vehicles turns pedal force into hydraulic pressure for the brakes.
- Part of the Dorman First Stop line
- Aluminum cylinder housing
- EPDM rubber components that resist glycol-based brake fluid
- Made entirely of new materials
- Made to meet SAE International standards
Quick facts
- Part: Dorman M390317 brake master cylinder
- Fits: 1995-1999 Nissan Sentra and other vehicles
- Material: Aluminum
- Condition: New
A worn master cylinder can show up as a soft or sinking brake pedal, brake fluid leaking at the cylinder, or a falling fluid level in the reservoir. Before you replace the master cylinder, rule out a leak at a brake line, caliper or wheel cylinder and air in the system, since those can also cause a soft pedal.
Fits
This is a master cylinder for the 1995-1999 Nissan Sentra and the 1995-1998 Nissan 200SX, and each takes one. It is engineered to follow the design, function and performance of the original master cylinder on these vehicles.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 0.813 in
- Number of outlets: 4
- Rearward outlet size: M10 X 1.0
- Secondary outlet thread diameter: M10 X 1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Aluminum
- Rubber components: EPDM compound
- Reservoir: included
- Condition: New
- Country of origin: Taiwan
In the box
One master cylinder with its reservoir. Mounting hardware and a sensor are not included, so plan on new hardware, as the old pieces may not be reusable.
Interchange: 100-1396 · 072-9208 · 13-2581 · 13-2603 · 11-2581 · 130.42213 · 131.42213 · 355-67019
M901080 · 13189 · MC251360 · M52581 · M52603 · NM52603 · 460101M220 · 460104B000 · MC390317 · F131579 · MC131579
This part cross-references / interchanges with the following part numbers:
M901080, 100-1396, 072-9208, 13189, 13-2581, 13-2603, 11-2581, 130.42213, 131.42213, MC251360, 355-67019, M52581, M52603, NM52603, 460101M220, 460104B000, MC390317, F131579, MC131579
Frequently Asked Questions
Is this a brake master cylinder for the 1995-1998 Nissan 200SX?
Yes. Dorman M390317 fits the 1995-1998 Nissan 200SX, and the car takes one.
Does this Dorman brake master cylinder come with the reservoir?
Yes. The Dorman M390317 master cylinder includes its reservoir. Mounting hardware and a sensor are not included.
Is this Dorman master cylinder made of aluminum?
Yes. This master cylinder is made of aluminum, with a 0.813 in bore diameter and four outlets.
Can a soft brake pedal mean the master cylinder is worn?
Yes, it can, as can fluid leaking at the cylinder or a falling reservoir level. Brakes affect stopping, so have them inspected promptly rather than driving on them.
Does this master cylinder replace 13-2581?
Yes. 13-2581 is one of the numbers that Dorman M390317 replaces.
