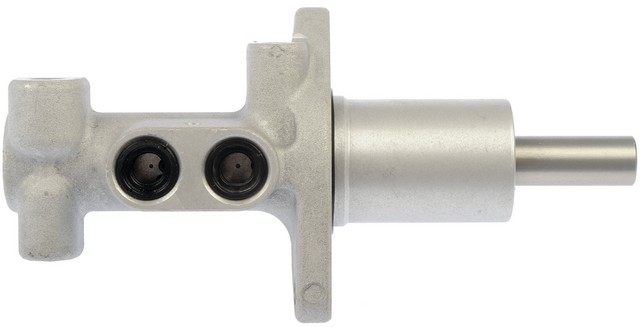

Dorman M630429 brake master cylinder for the 2006-2010 Chrysler PT Cruiser turns pedal force into hydraulic pressure for the brakes. This Dorman brake master cylinder is sold as a single piece and has two outlets.
- Part of the Dorman First Stop line
- Aluminum housing built to match the original part's casting material
- All rubber components are EPDM compound, which resists glycol-based brake fluid
- Made entirely of new materials
- Made to meet rigorous SAE International standards
Quick facts
- Part: Dorman M630429 brake master cylinder
- Fits: 2006-2010 Chrysler PT Cruiser
- Material: Aluminum
- Condition: New
A brake pedal that sinks or feels soft, or fluid around the cylinder body, can mean the master cylinder is worn. With the engine off, look the cylinder over for wet fluid. Fluid can also seep from a line or caliper, so find the source before replacing the cylinder, and have a shop inspect any pedal change promptly.
Fits
This brake master cylinder is a direct-fit replacement for the 2006-2010 Chrysler PT Cruiser, which takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 0.875 in
- Number of outlets: 2
- Rearward outlet size: M10 x 1.0
- Secondary outlet thread diameter: M12 x 1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Aluminum
- Condition: New
- Country of origin: Taiwan
In the box
One master cylinder. The reservoir, sensor and mounting hardware are not included, so plan on new mounting hardware.
Interchange: 100-2428 · 13-3284 · 10-3284 · 130.63066 · 355-39025
5142507AA · NM4206 · MC391031 · F143118 · MC143118
This part cross-references / interchanges with the following part numbers:
100-2428, 13-3284, 10-3284, 130.63066, 5142507AA, 355-39025, NM4206, MC391031, F143118, MC143118
Frequently Asked Questions
Is this Chrysler PT Cruiser brake master cylinder right for a 2006-2010 model?
Yes. Dorman M630429 fits the 2006-2010 Chrysler PT Cruiser, and the car takes one master cylinder.
Does this Dorman master cylinder come with the reservoir and sensor?
No. This listing is the master cylinder alone. The reservoir, sensor and mounting hardware are not included.
What size are the outlet threads and bore on this brake master cylinder?
Dorman M630429 has an M10 x 1.0 rearward outlet and an M12 x 1.0 secondary outlet thread, with a 1 mm primary outlet thread pitch. The bore diameter is 0.875 in.
Is the rubber in this master cylinder made for glycol-based brake fluid?
Yes. All rubber components are EPDM compound, which resists glycol-based brake fluid. The housing is aluminum.
What standards is this brake master cylinder made to?
It is made to meet rigorous SAE International standards, and it is built entirely of new materials.
